Home >> Chevrolet >> 1992 >> Lumina V6-204 3.4L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Marker Lamp >> Front Park/Turn and Front Markers

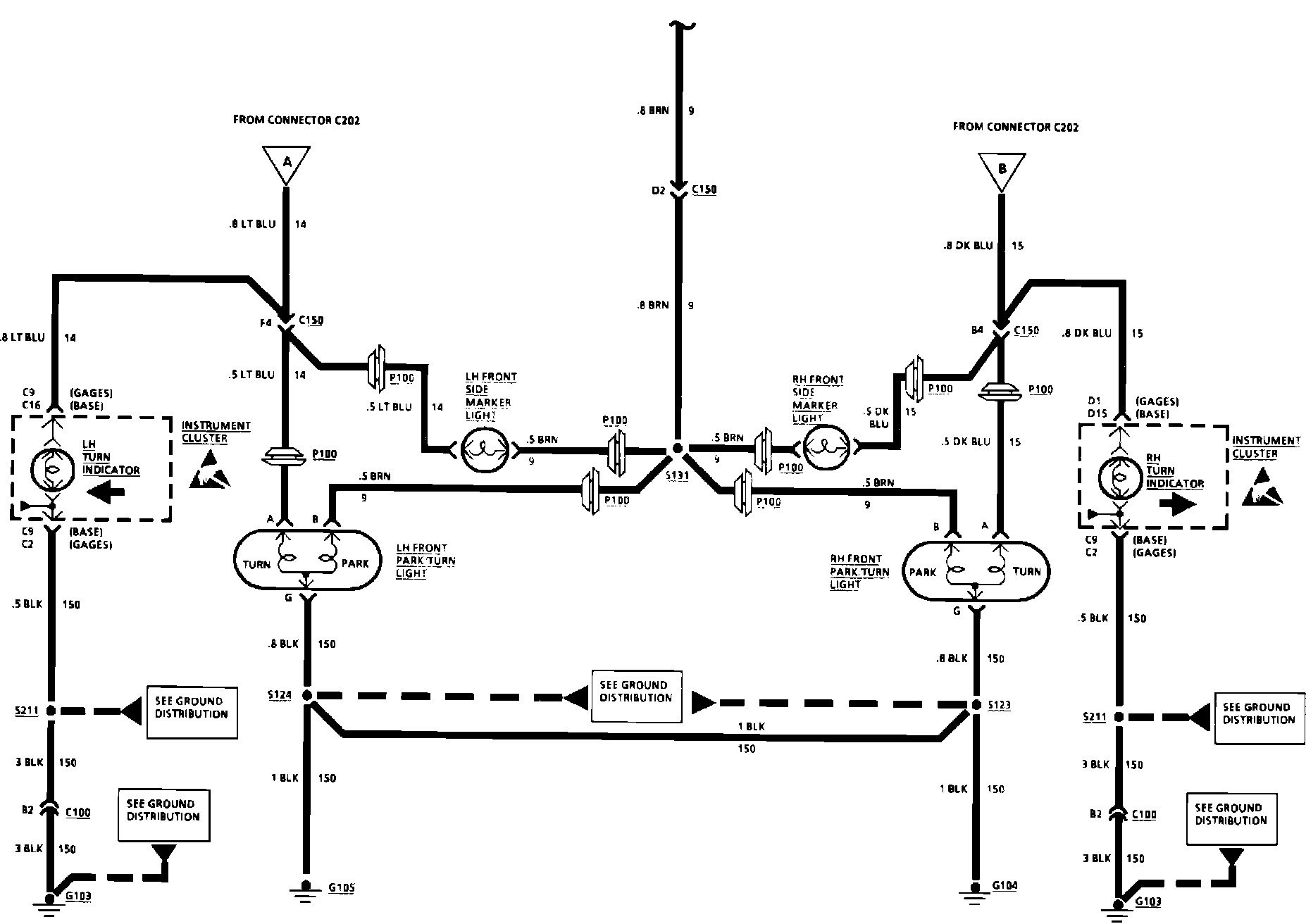

Front Park/Turn and Front Markers

Exterior Lights: Front Park/Turn And Front Marker Lights:



Exterior Lights: Front Park/Turn And Front Marker Lights:
