Home >> Chevrolet >> 1993 >> Beretta L4-138 2.3L DOHC QUAD 4 HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lamps >> Footwell Courtesy/Dome/Luggage Compartment >> 4 Door

4 Door

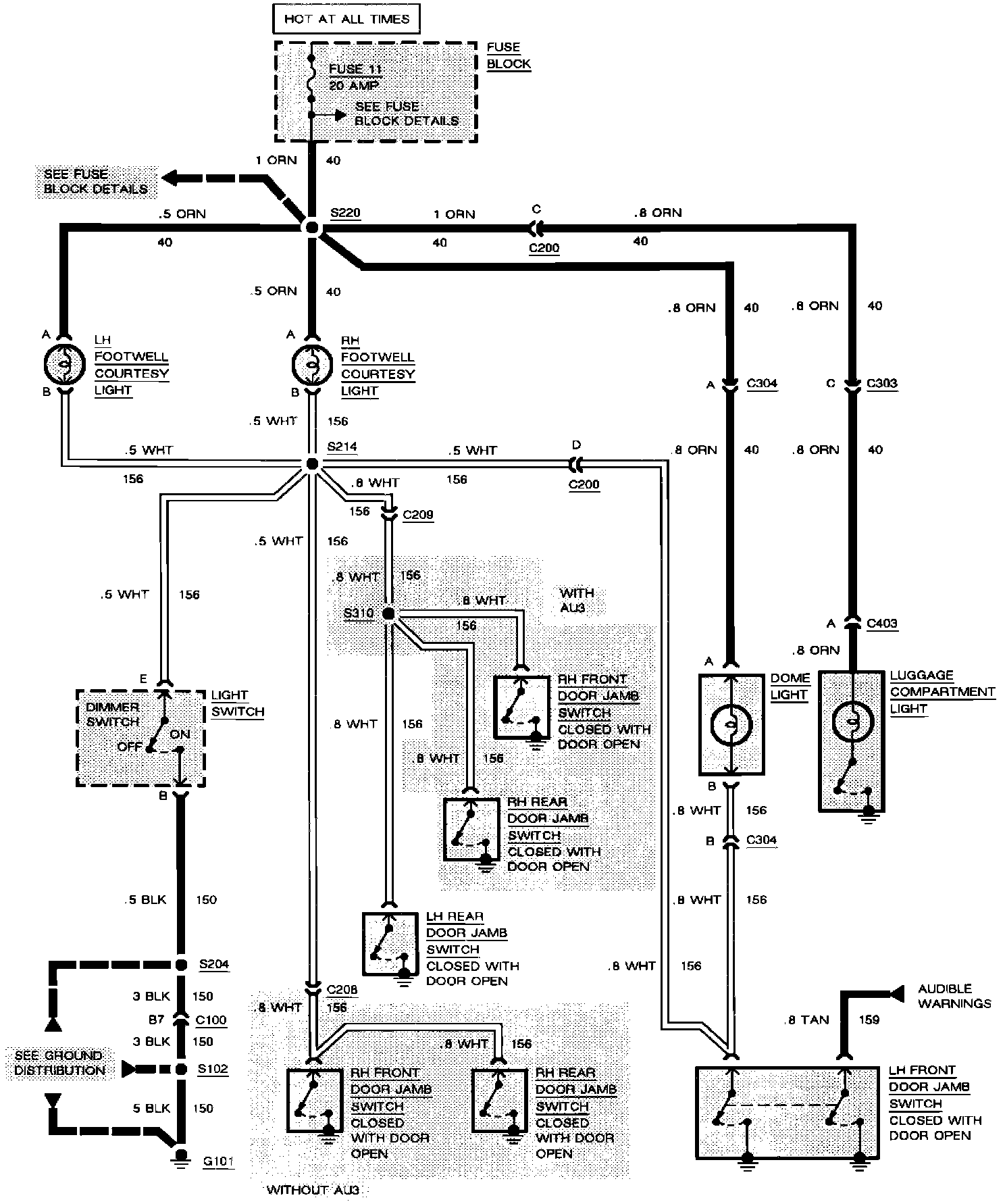

Wiring Diagrams:
