Idle Air Control, Malfunction Indic. Lamp & ENG. Data Sensors
Idle Air Control, Malfunction Indic. Lamp & ENG. Data Sensors

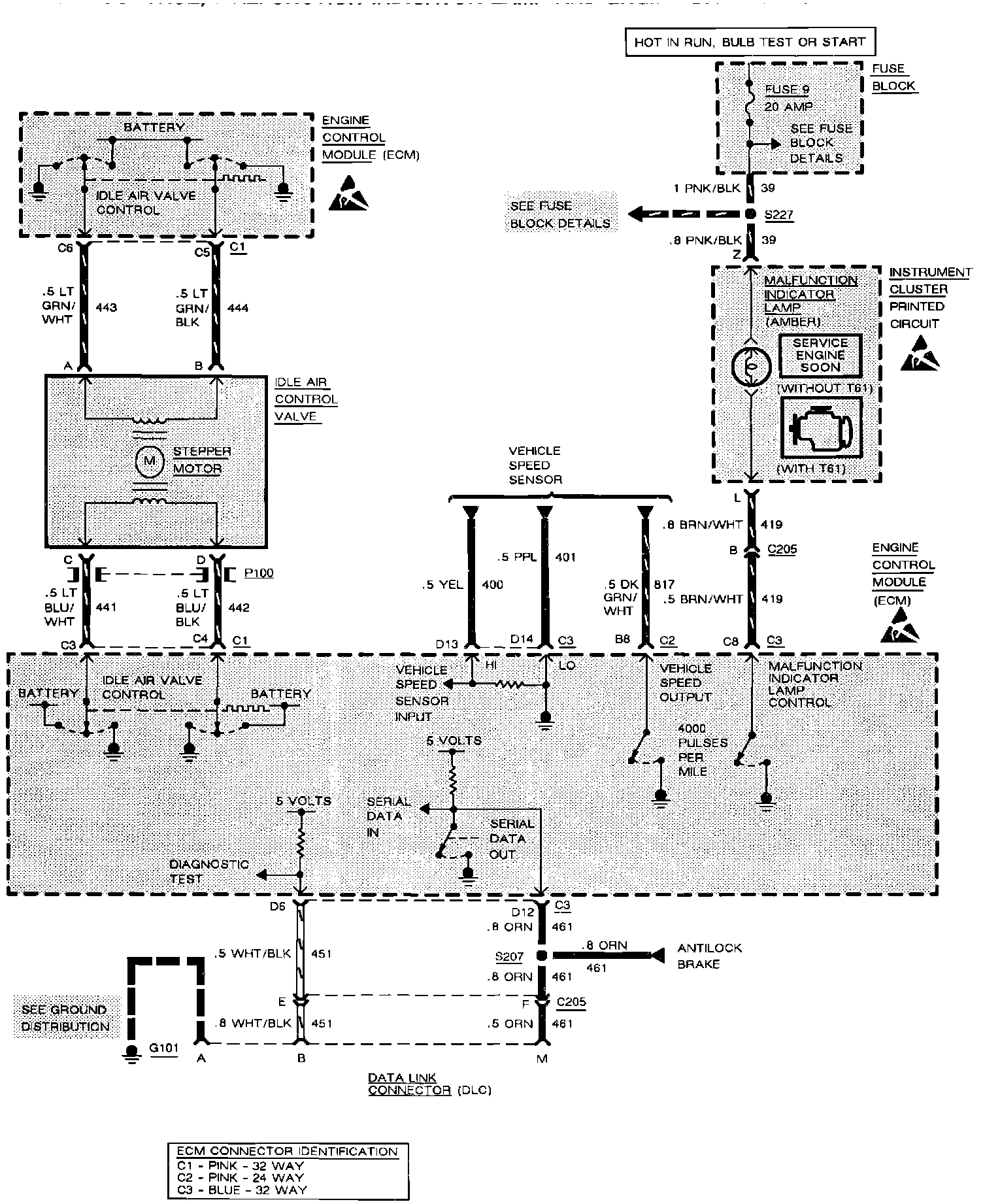

Wiring Diagram:
