Headlamp: Service and Repair

Remove or Disconnect
1. Open hood.

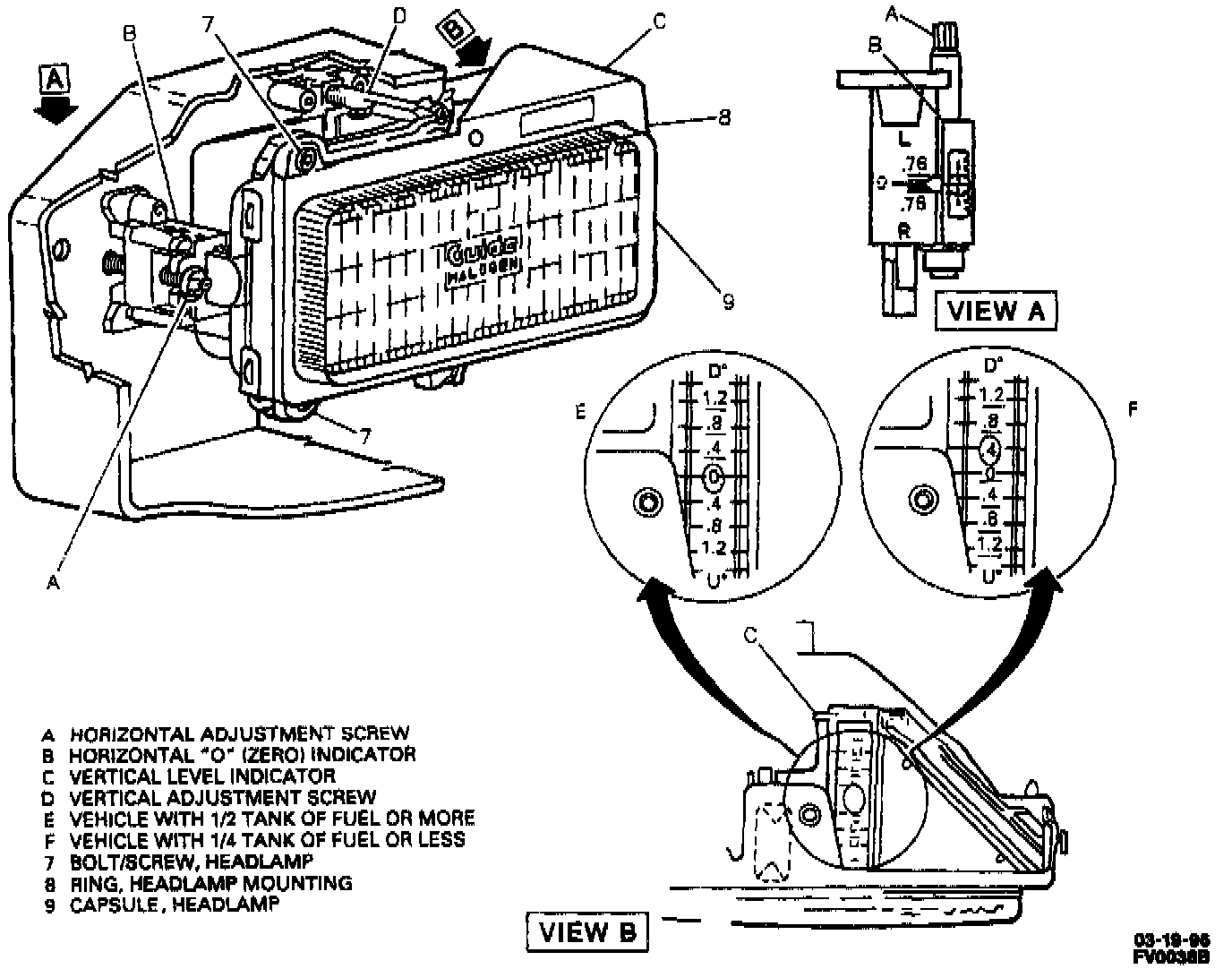

2. Headlamp bolts/screws (7)
3. Headlamp mounting ring (8).
4. Electrical connector from headlamp capsule.
5. Headlamp capsule (9) from vehicle.

Install or Connect

1. Headlamp capsule (9) to vehicle.
2. Electrical connector to headlamp capsule.
3. Headlamp mounting ring (8).
- If replacing headlamp mounting ring (8),transfer undamaged vertical level indicator to new headlamp mounting ring (8).
4. Headlamp bolts/screws (7).
- Tighten securely.
5. Close hood.
