Pictorial Views
Pictorial View:
A To WSWA Motor
B Engine Harness
C EGR Solenoid
D Vacuum Harness
1 MAT Sensor Connector
2 MAT Sensor
3 Throttle Position Sensor Connector
4 Throttle Body Connector
5 Injector Connector
6 Grommet
7 Throttle Position Sensor
8 Transmission Filler Tube
9 Distributor
10 IAC Connector
11 EGR Solenoid Connector
12 EGR Solenoid
13 Coil Connector
14 Coil

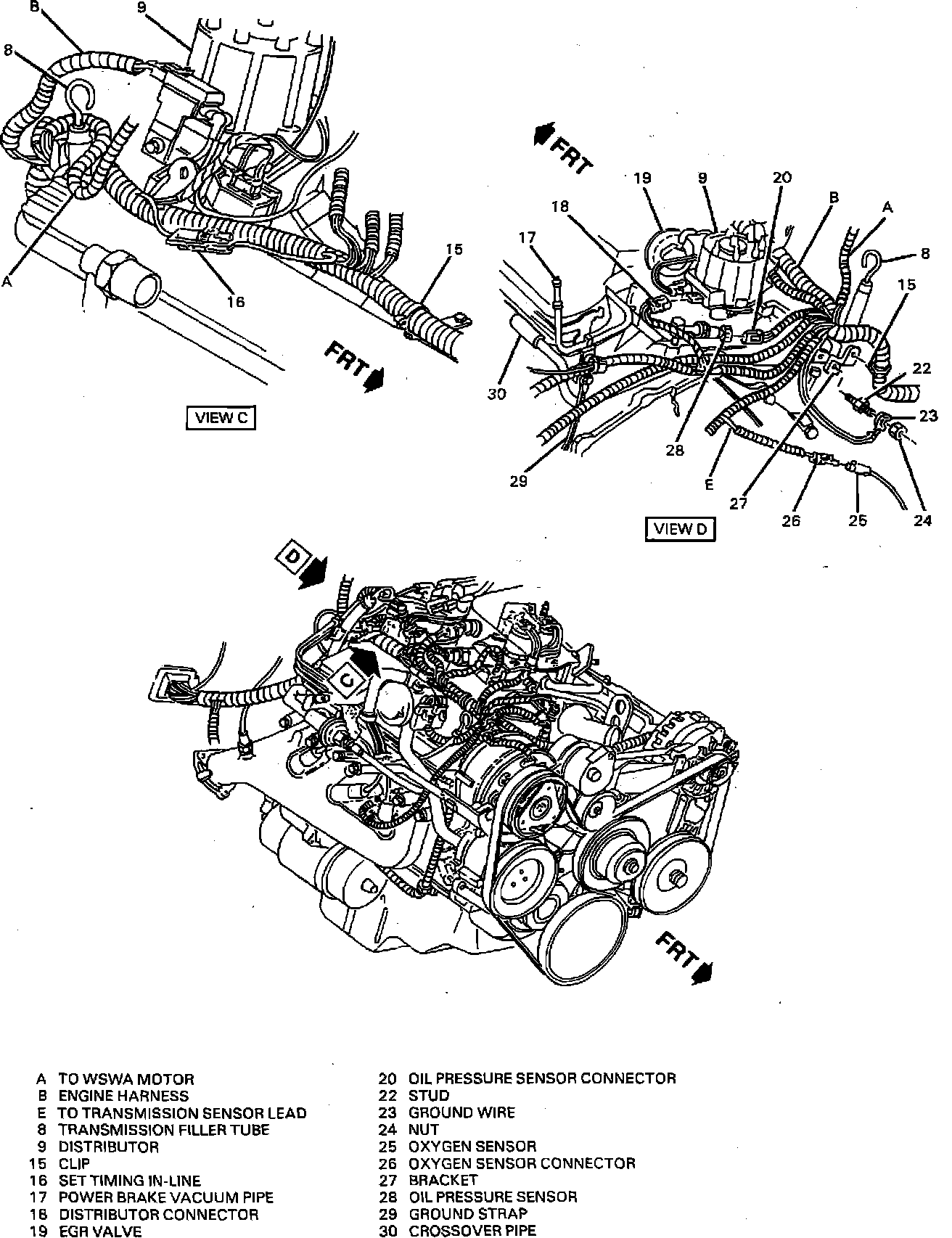

Pictorial View:
A To WSWA Motor
B Engine Harness
E To Transmission Sensor Lead
8 Transmission Filler Tube
9 Distributor
15 Clip
16 Set Timing In-Line
17 Power Brake Vacuum Pipe
18 Distributor Connector
19 EGR Valve
20 Oil Pressure Sensor Connector
22 Stud
23 Ground Wire
24 Nut
25 Oxygen Sensor
26 Oxygen Sensor Connector
27 Bracket
28 Oil Pressure Sensor
29 Ground Strap
30 Crossover Pipe

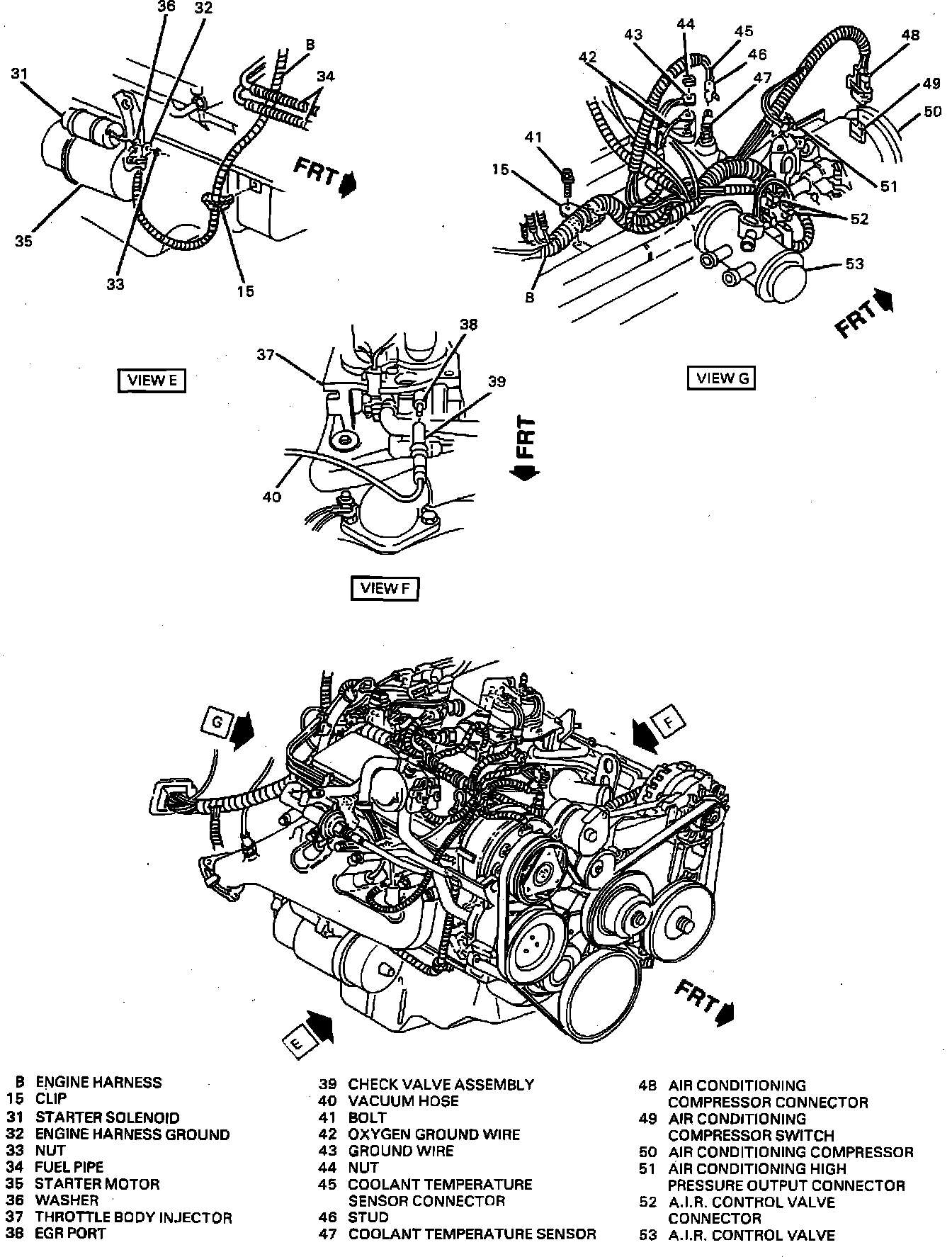

Pictorial View:
B DASH PANEL
15 Clip
31 Starter Solenoid
32 Engine Harness Ground
33 Nut
34 Fuel Pipe
35 Starter Motor
36 Washer
37 Throttle Body Injector
38 EGR Port
39 Check Valve Assembly
40 Vacuum Hose
41 Bolt
42 Oxygen Ground Wire
43 Ground Wire
44 Nut
45 Coolant Temperature Sensor Connector
46 Stud
47 Coolant Temperature Sensor
48 Air Conditioning Compressor Connector
49 Air Conditioning Compressor Switch
50 Air Conditioning Compressor
51 Air Conditioning High Pressure Output Connector
52 A.I.R. Control Valve Connector
53 A.I.R. Control Valve

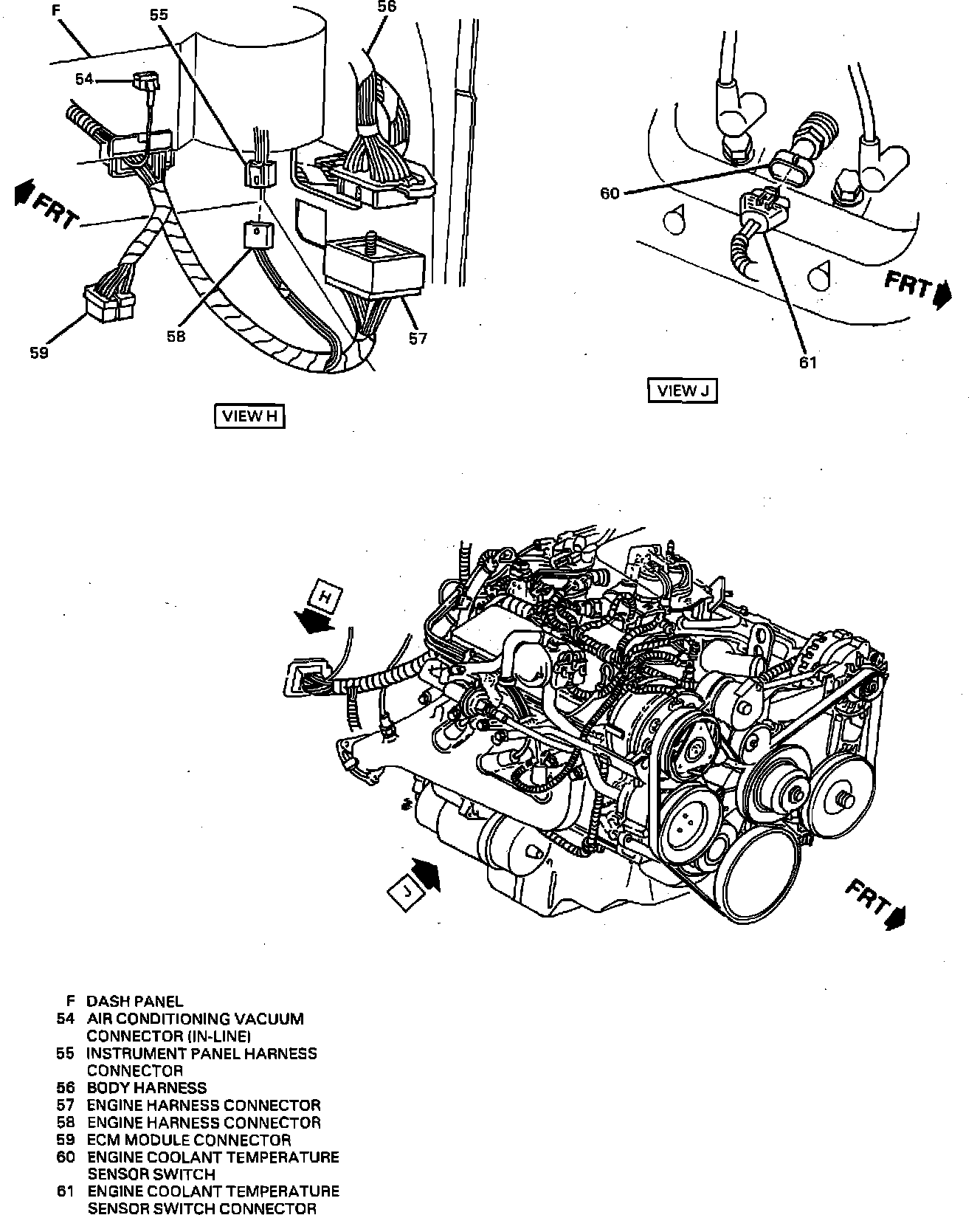

Pictorial View:
F DASH PANEL
54 Air Conditioning Vacuum Connector (in-line)
55 Instrument Panel Harness Connector
56 Body Harness
57 Engine Harness Connector
58 Engine Harness Connector
59 ECM Module Connector
60 Engine Coolant Temperature Sensor Switch
61 Engine Coolant Temperature Sensor Switch Connector
