Engine Data Sensors, Fuel Injector Control & Idle Air Control

Fuel Injection (Engine Data Sensors, Fuel Injector Control & Idle Air Control):

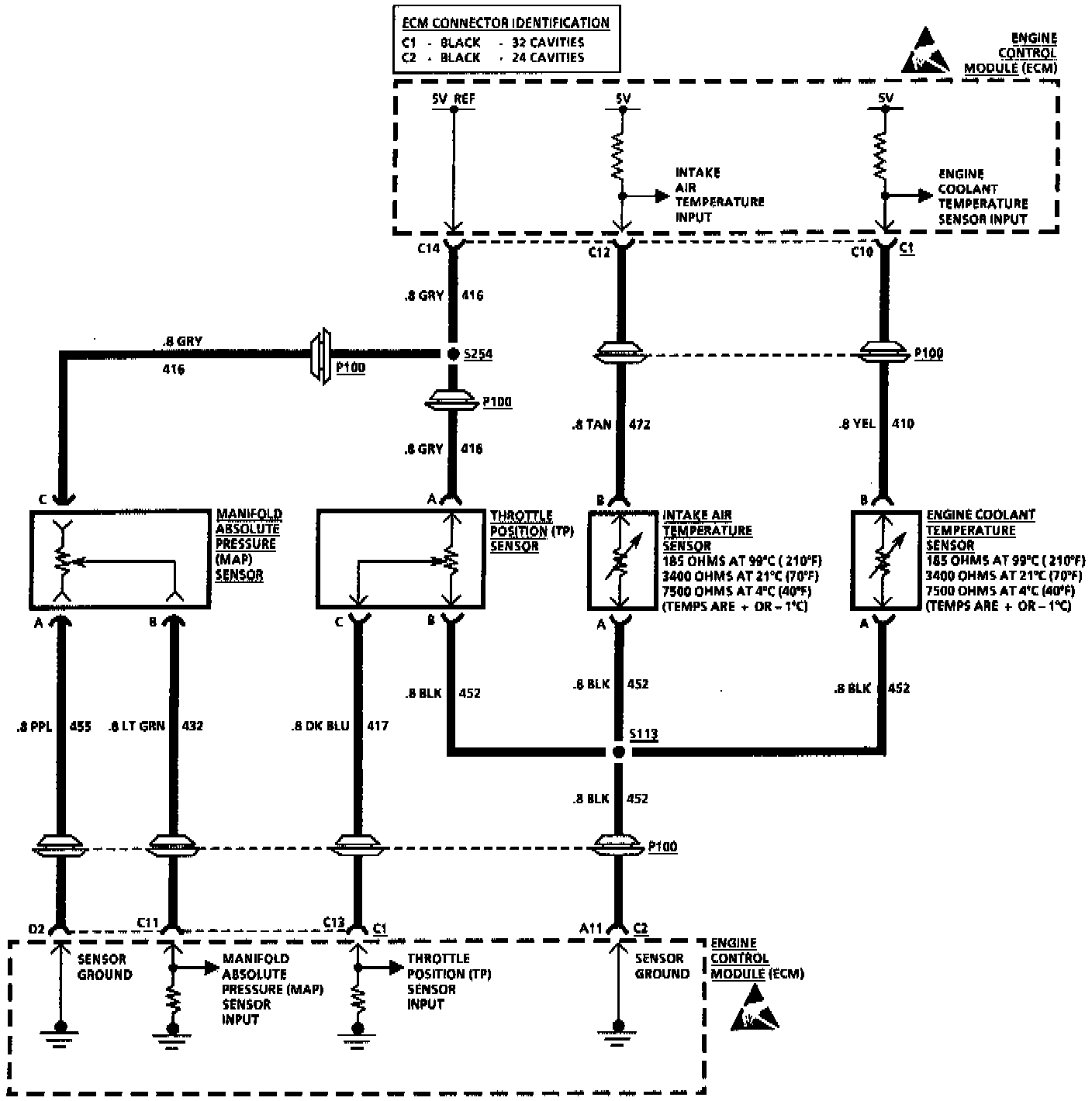

Throttle Body Injection: V6 VIN Z Engine Data Sensors:



Throttle Body Injection: V6 VIN Z Fuel Injector Control,Engine Data Sensors And Idle Air Control:
