Fuel Pump Control

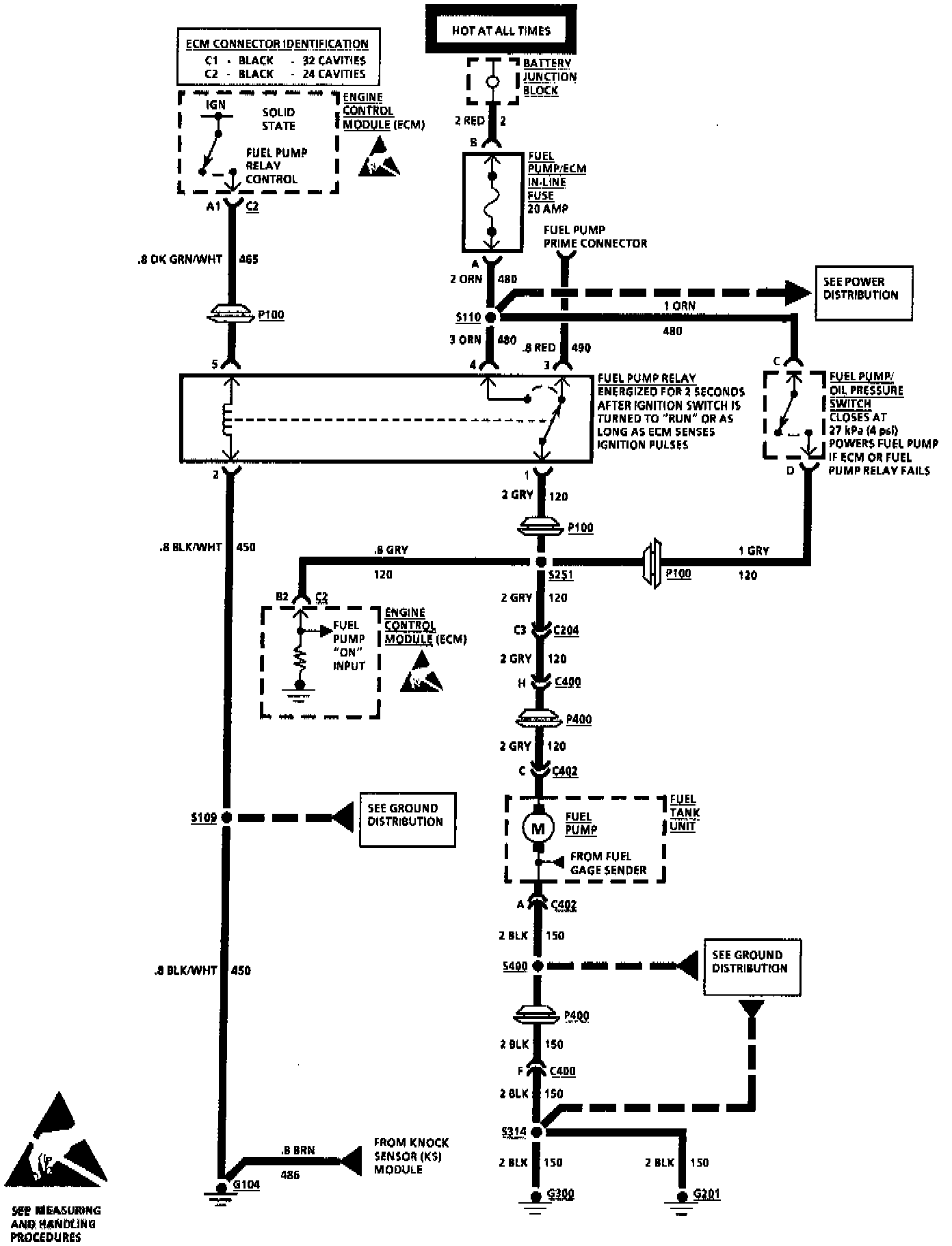

Fuel Injection (Fuel Pump Control):



Fuel Injection (Fuel Pump Control):



Throttle Body Injection: V6 VIN Z Fuel Control:
