Ignition, Spark Control, Tachometer & TCC

Fuel Injection (Ignition, Spark Control, Tachometer & TCC):



Fuel Injection (Ignition, Spark Control, Tachometer & TCC):

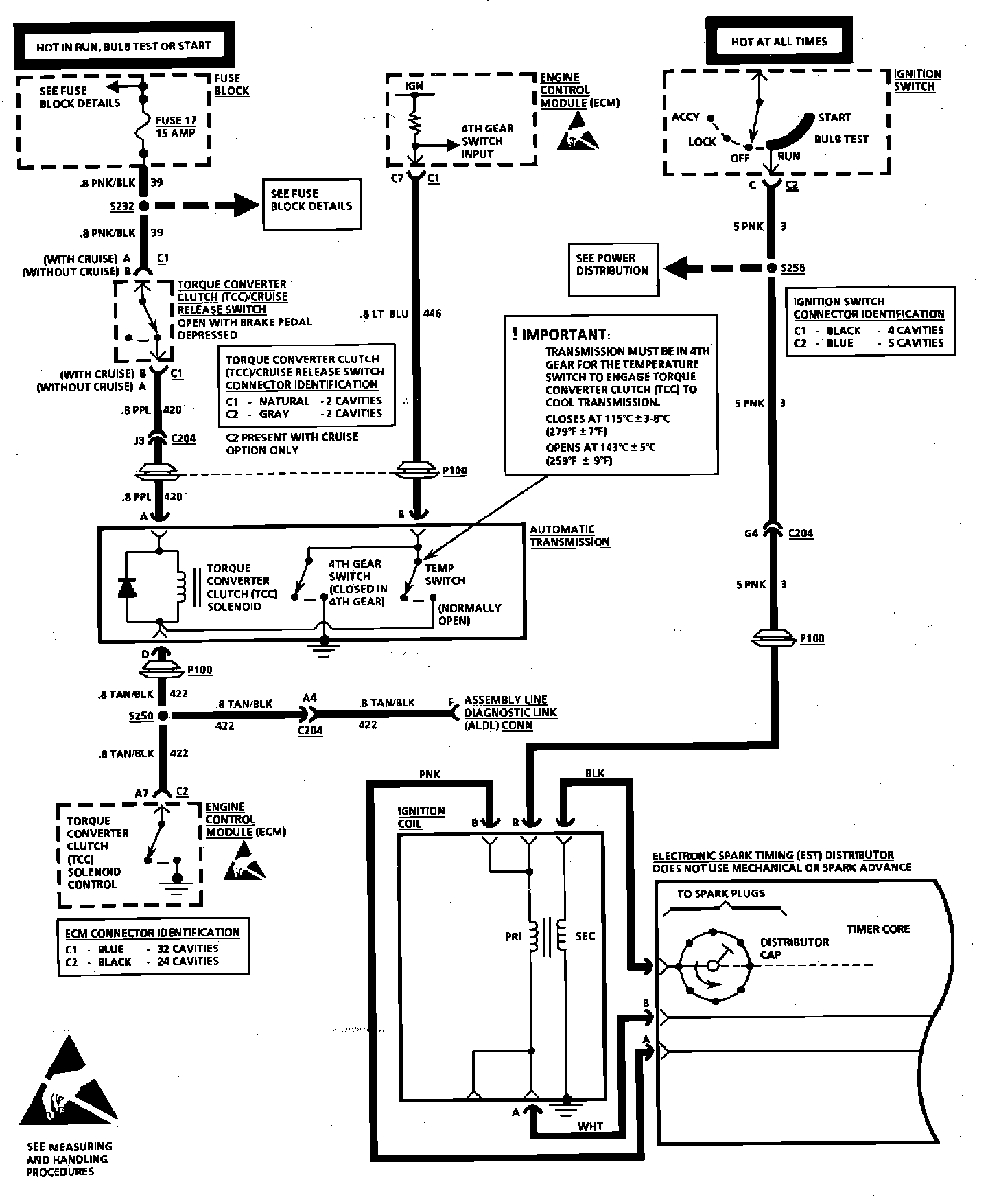

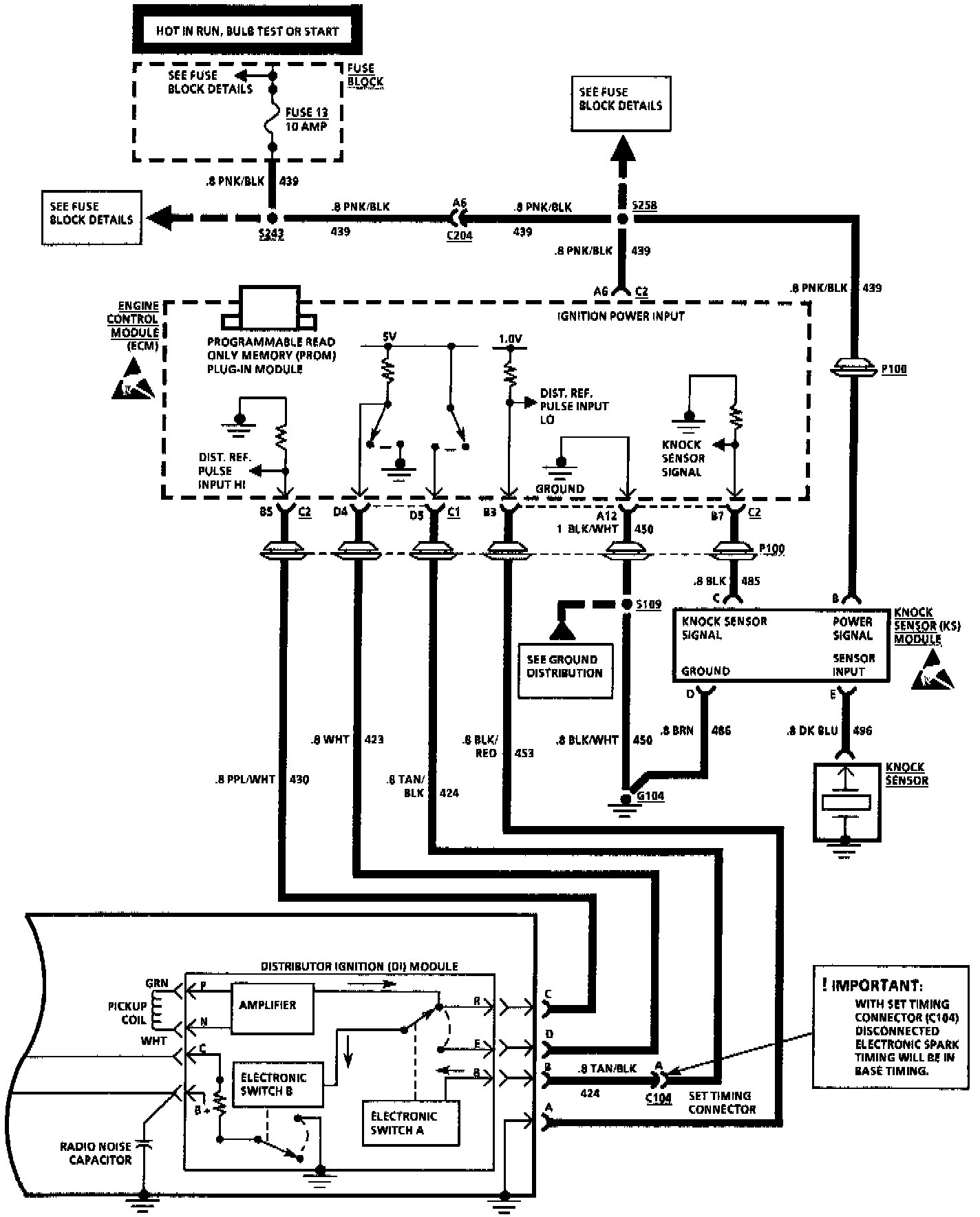

Throttle Body Injection: V6 VIN Z Ignition,Spark Control,Tachometer And Torque Converter Clutch (TCC):



Throttle Body Injection: V6 VIN Z Ignition,Spark Control,Tachometer And Torque Converter Clutch (TCC):
