DTC 63

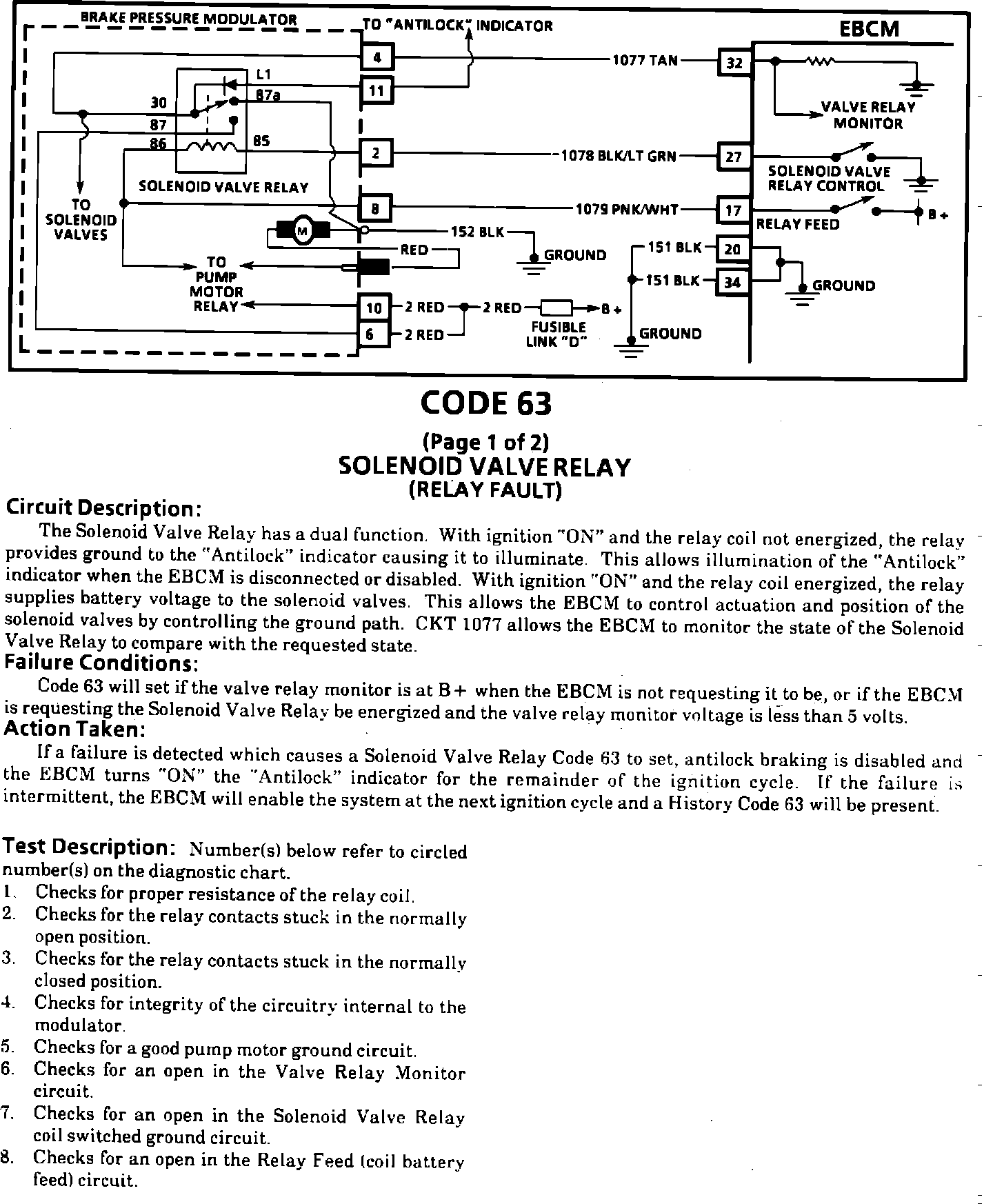

Fig. 23 Code 63, Solenoid Valve Relay Fault (Part 1 Of 4):

Fig. 23 Code 63, Solenoid Valve Relay Fault (Part 2 Of 4):

Fig. 23 Code 63, Solenoid Valve Relay Fault (Part 3 Of 4):

Fig. 23 Code 63, Solenoid Valve Relay Fault (Part 4 Of 4):
