DTC 72

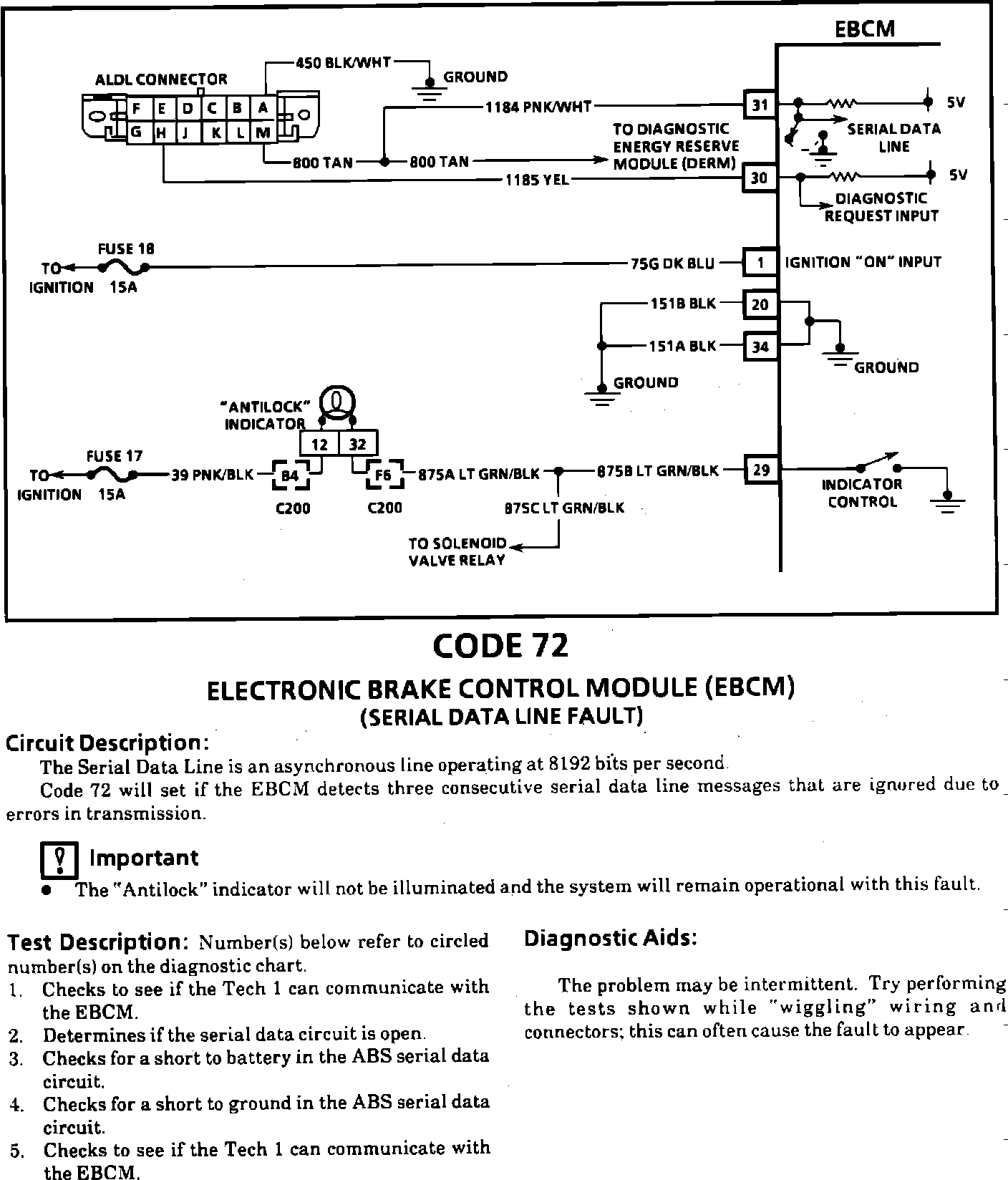

Fig. 26 Code 72, EBCM Serial Line Data Fault (Part 1 of 2):

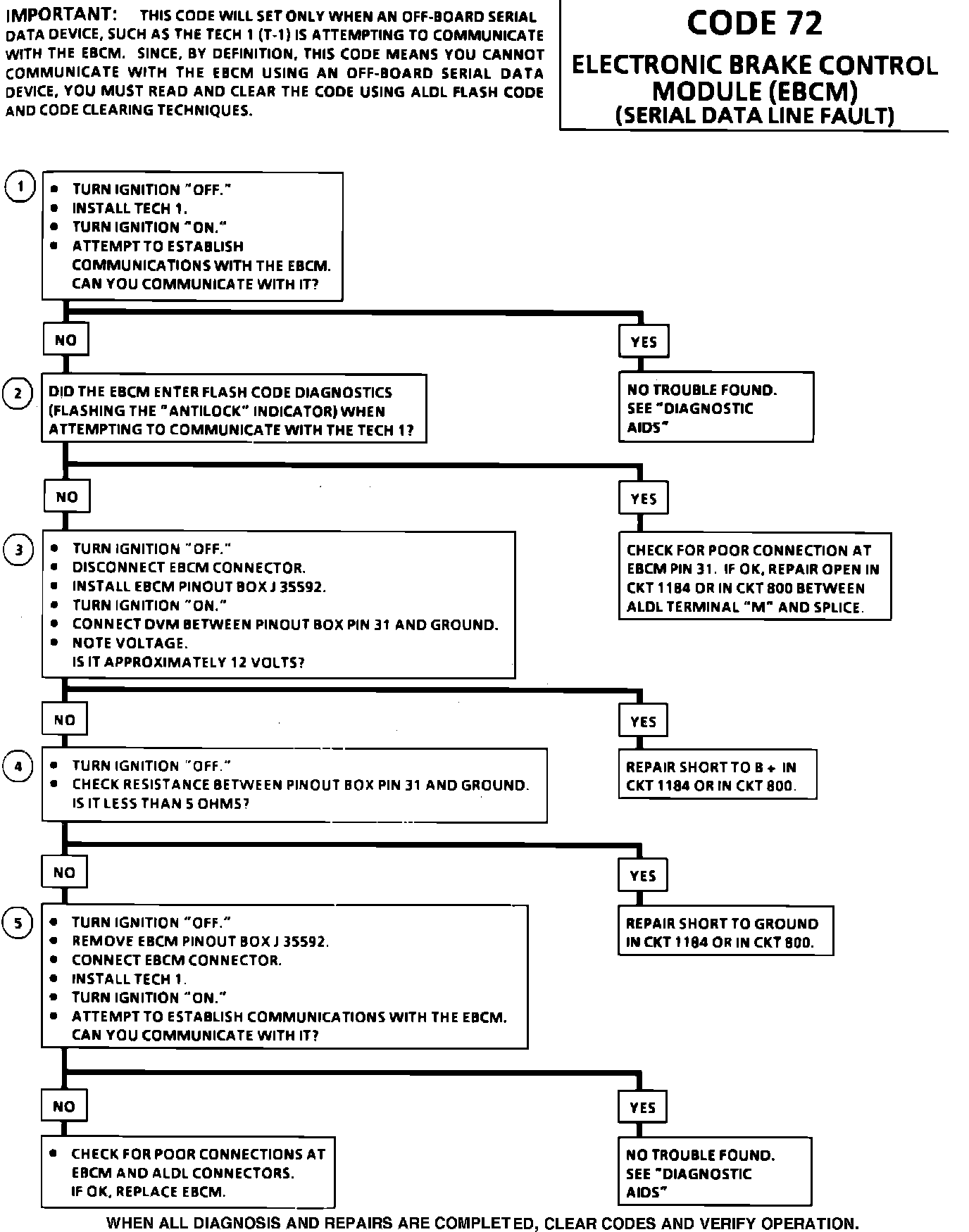

Fig. 26 Code 72, EBCM Serial Line Data Fault (Part 2 of 2):
