Rear Glass Interlock Push Button Switch

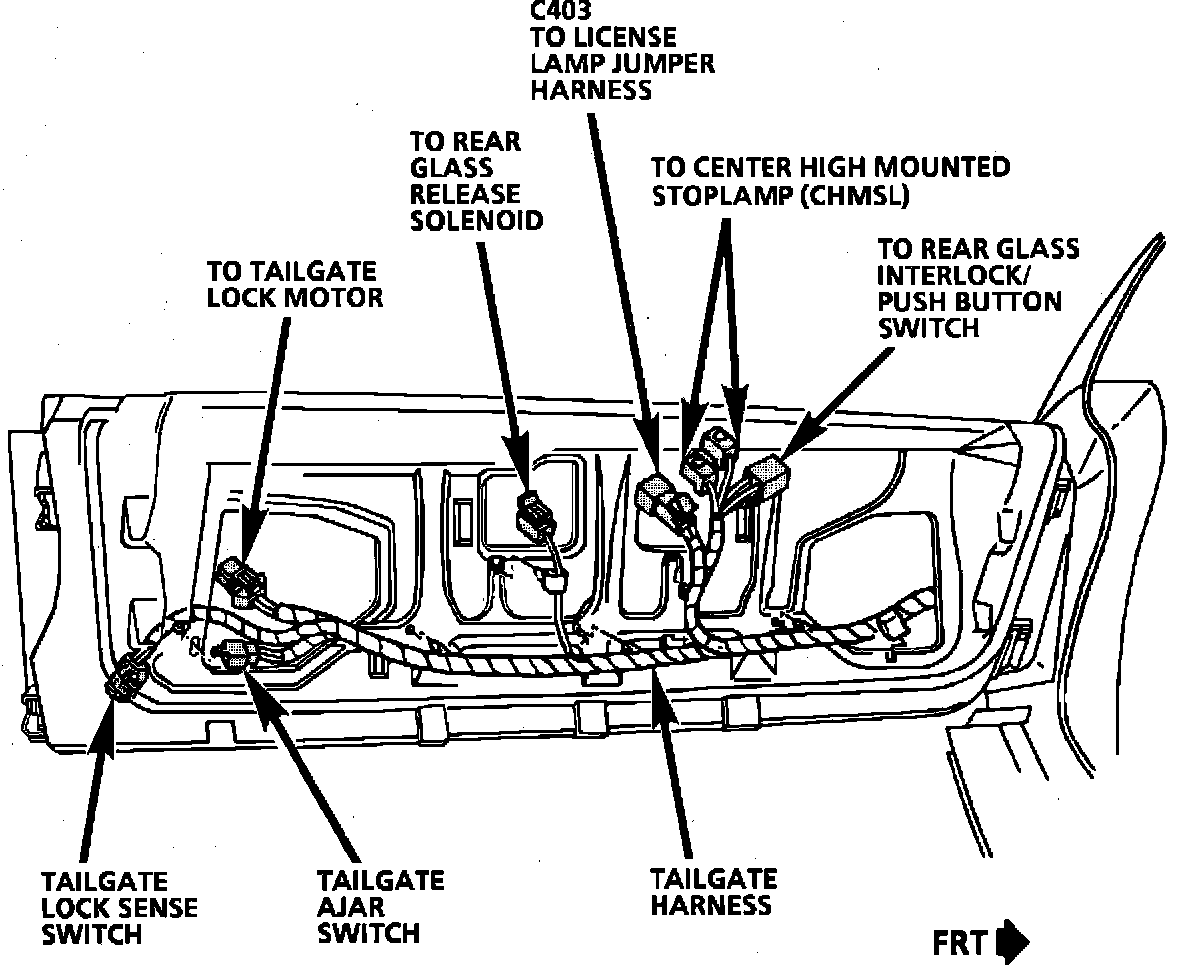

Component Location View. Tailgate (Wagon):




Near center of Tailgate
