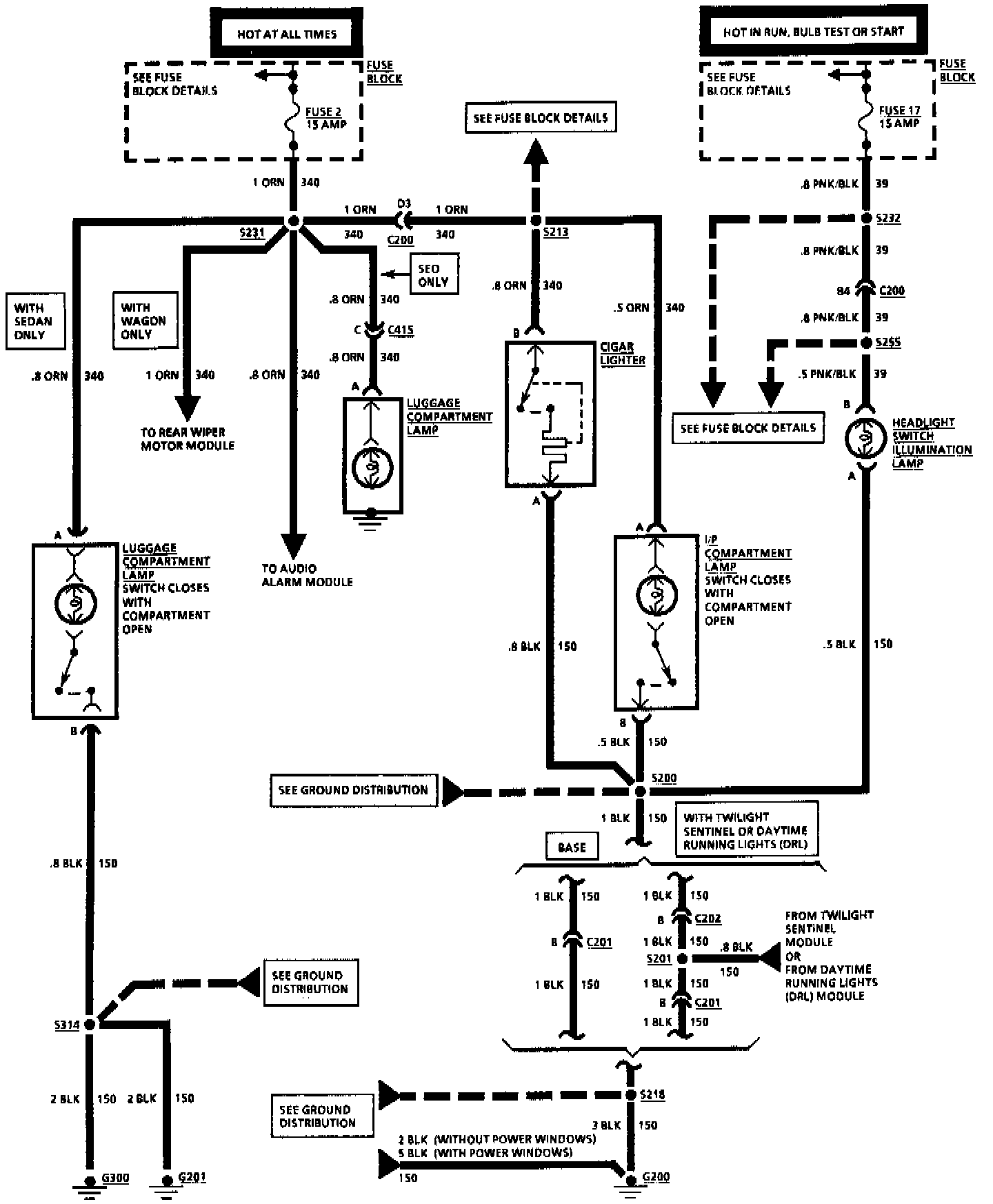

Headlamp Switch

Interior Lights: Cigar Lighter,I/P Compartment Lamp,Luggage Compartment Lamp,Headlight Switch Illumination Lamp:
