Home
>>
Chevrolet
>>
1993
>>
Caprice RWD V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Panel Bulb
Instrument Panel Bulb

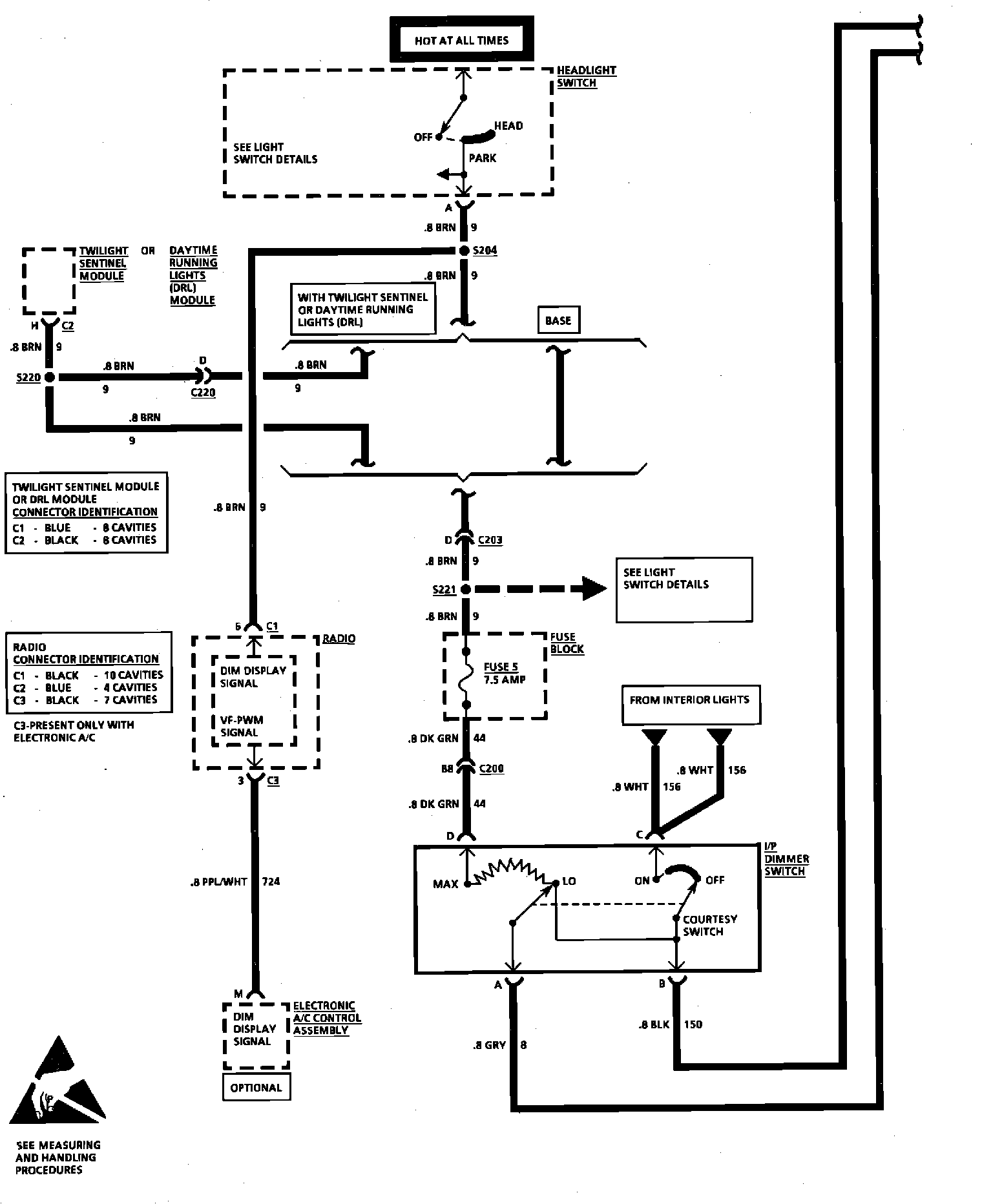

Interior Lamps Dimming:
Interior Lamps Dimming:
