Home >> Chevrolet >> 1993 >> Caprice RWD V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Map Light

Map Light

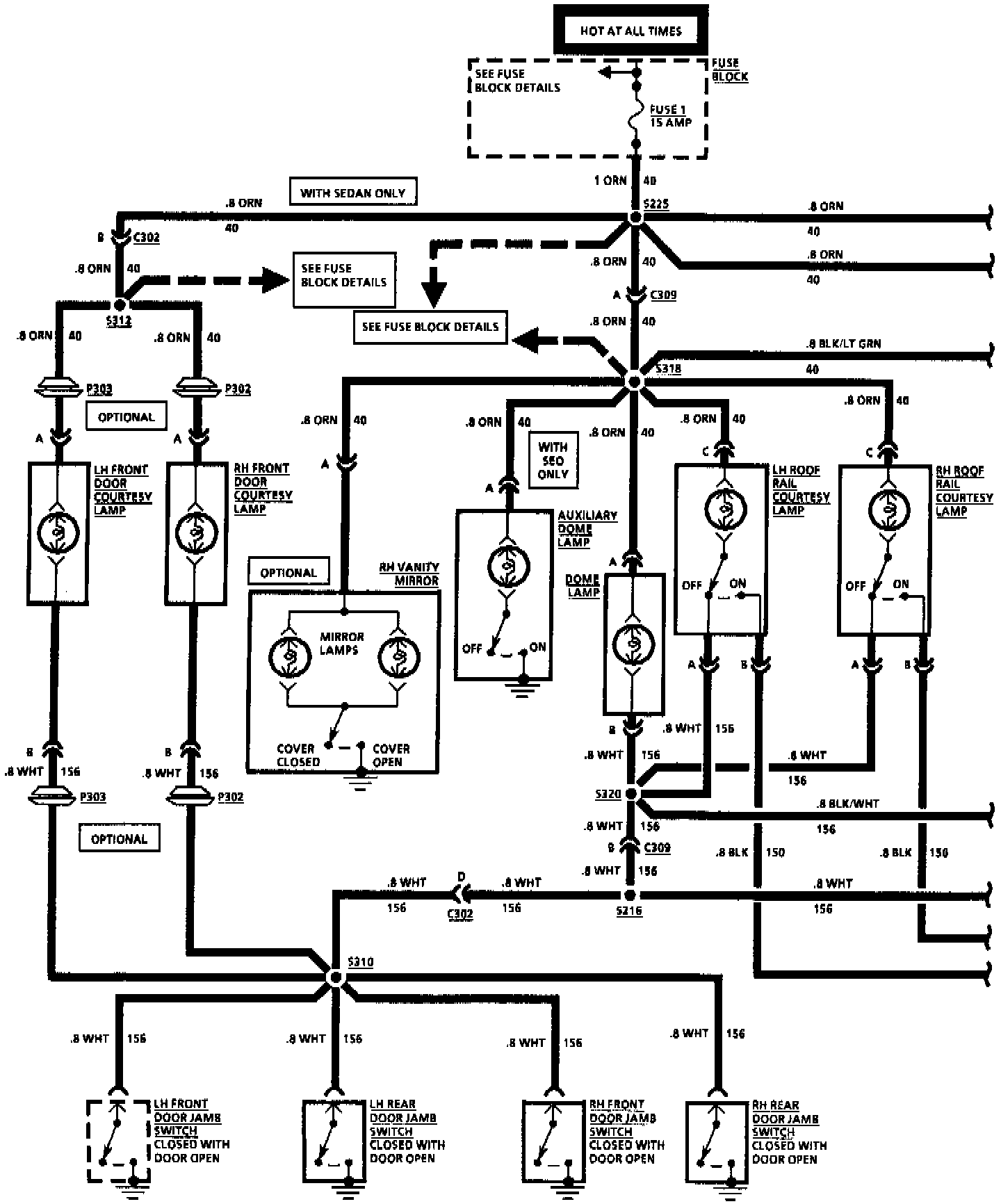

Interior Lights: Courtesy/Reading,Dome,RH Vanity Mirror Lights,Underhood Lamp:

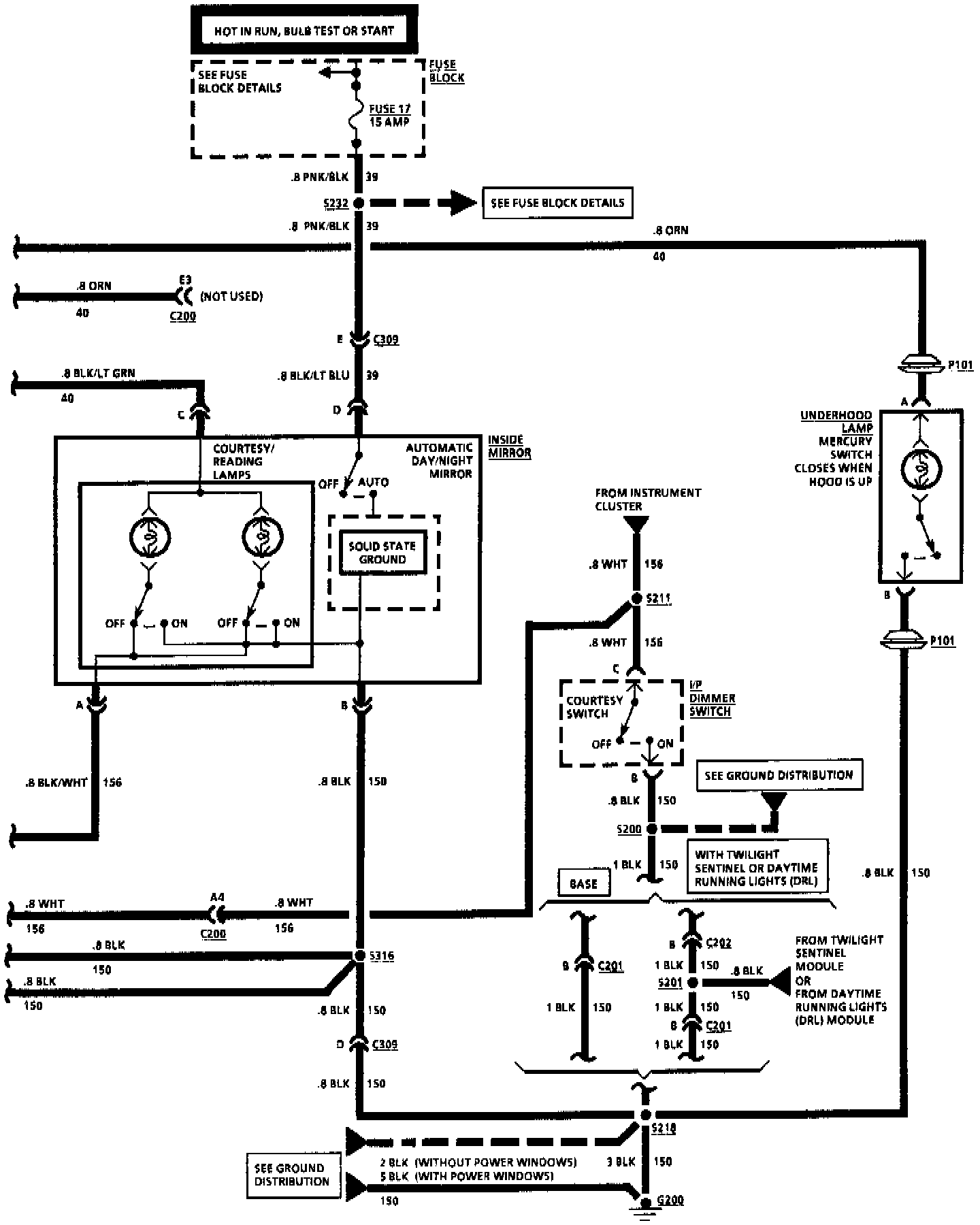

Interior Lights: Courtesy/Reading,Dome,RH Vanity Mirror Lights,Underhood Lamp:
