ECM Power & Grounds, Vehicle Data Sensor
ECM Power & Grounds, Vehicle Data Sensor

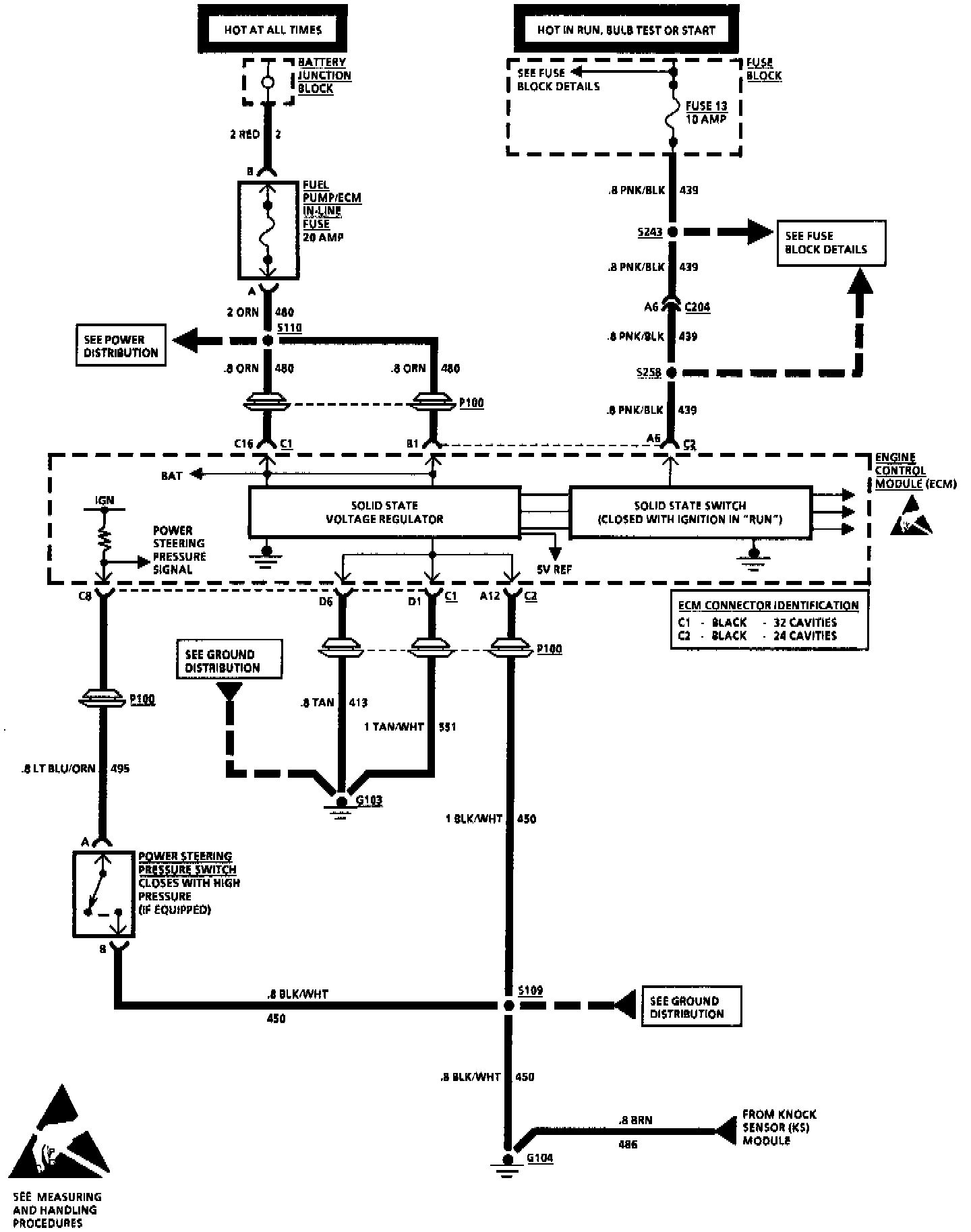

Throttle Body Injection: V8 VIN E And VIN 7 ECM Power And Grounds,Vehicle Data Sensor:
