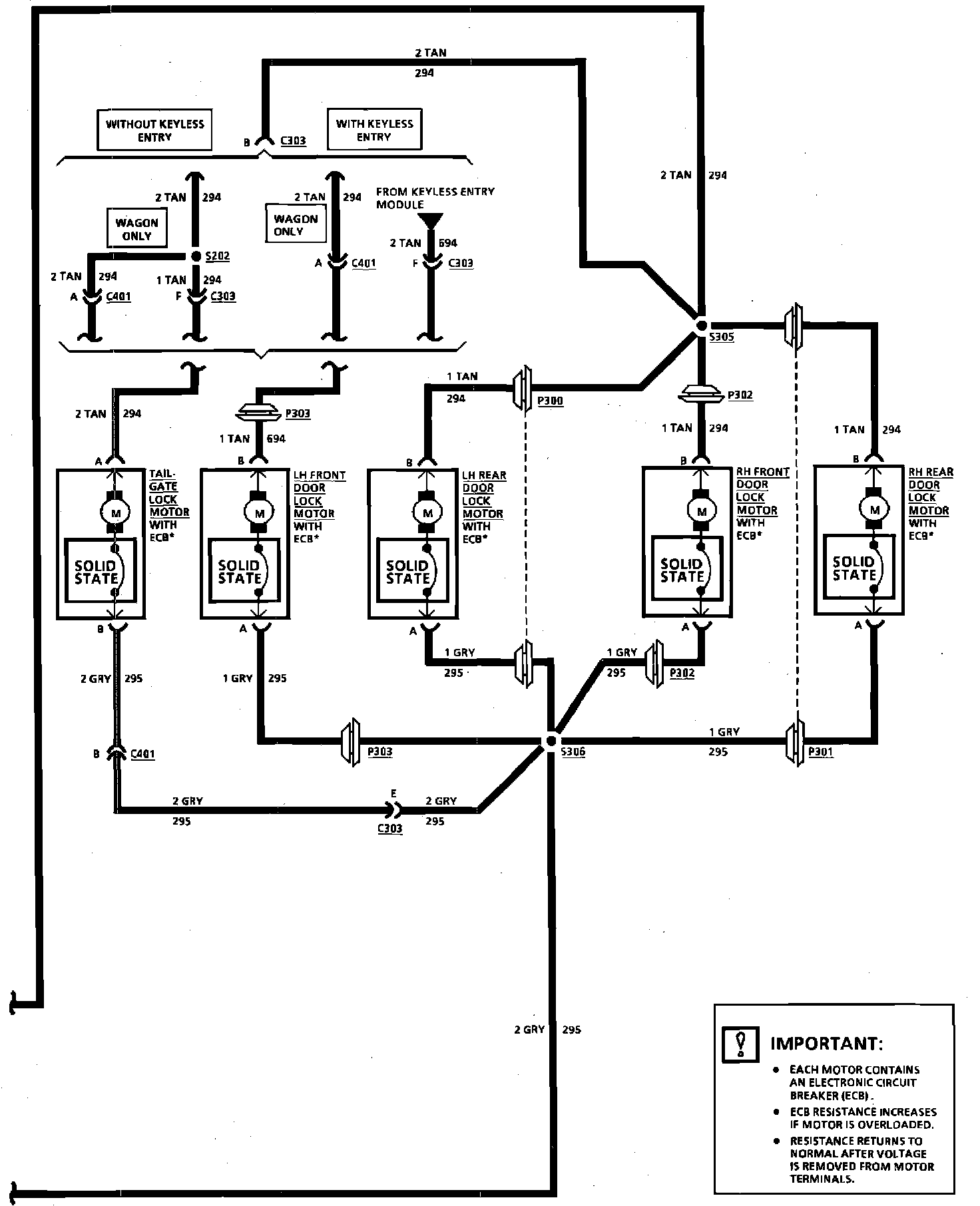

Tailgate Lock With Power Door Locks

Power Door Locks & Tailgate Locks:



Power Door Locks & Tailgate Locks:
