Fuse and Fusible Links
>>

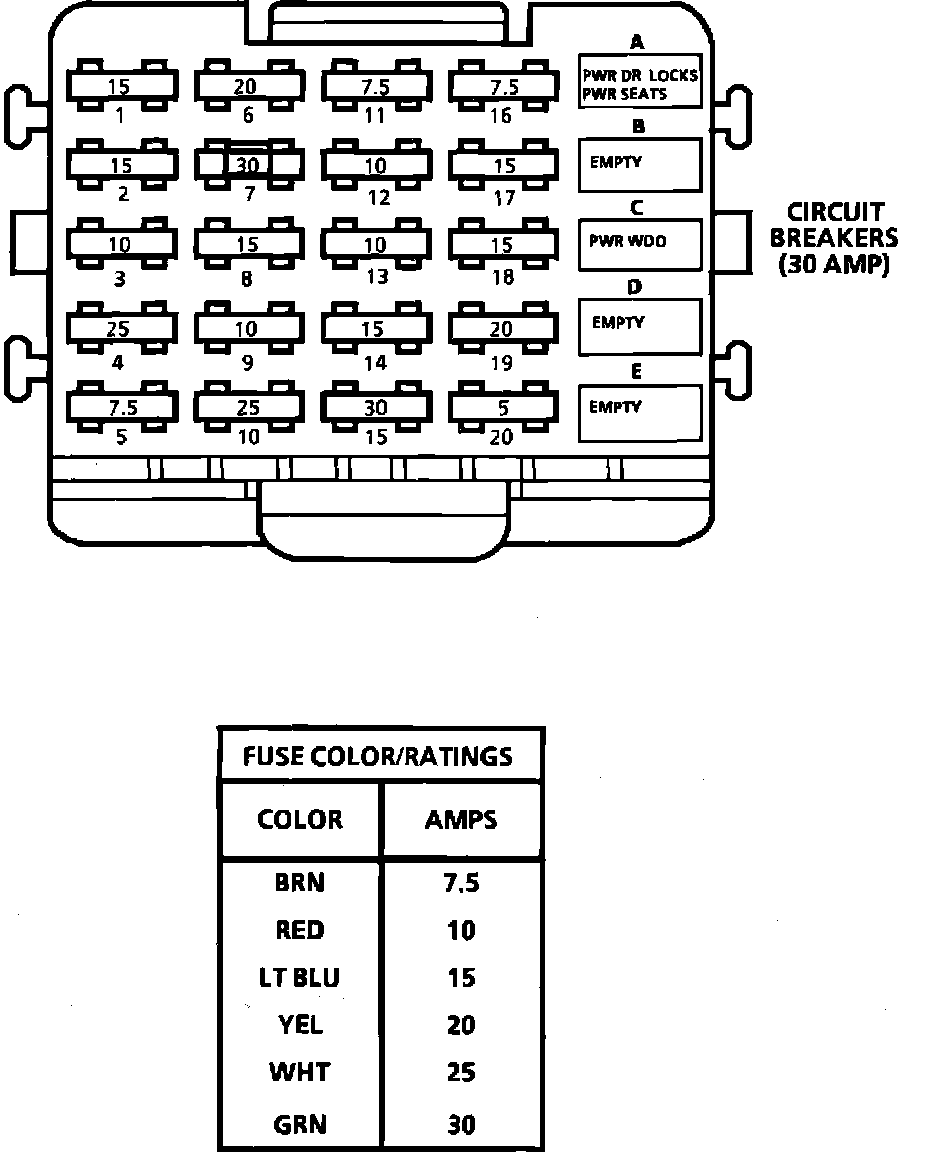

Fuse Block Details
Fuse Block Details

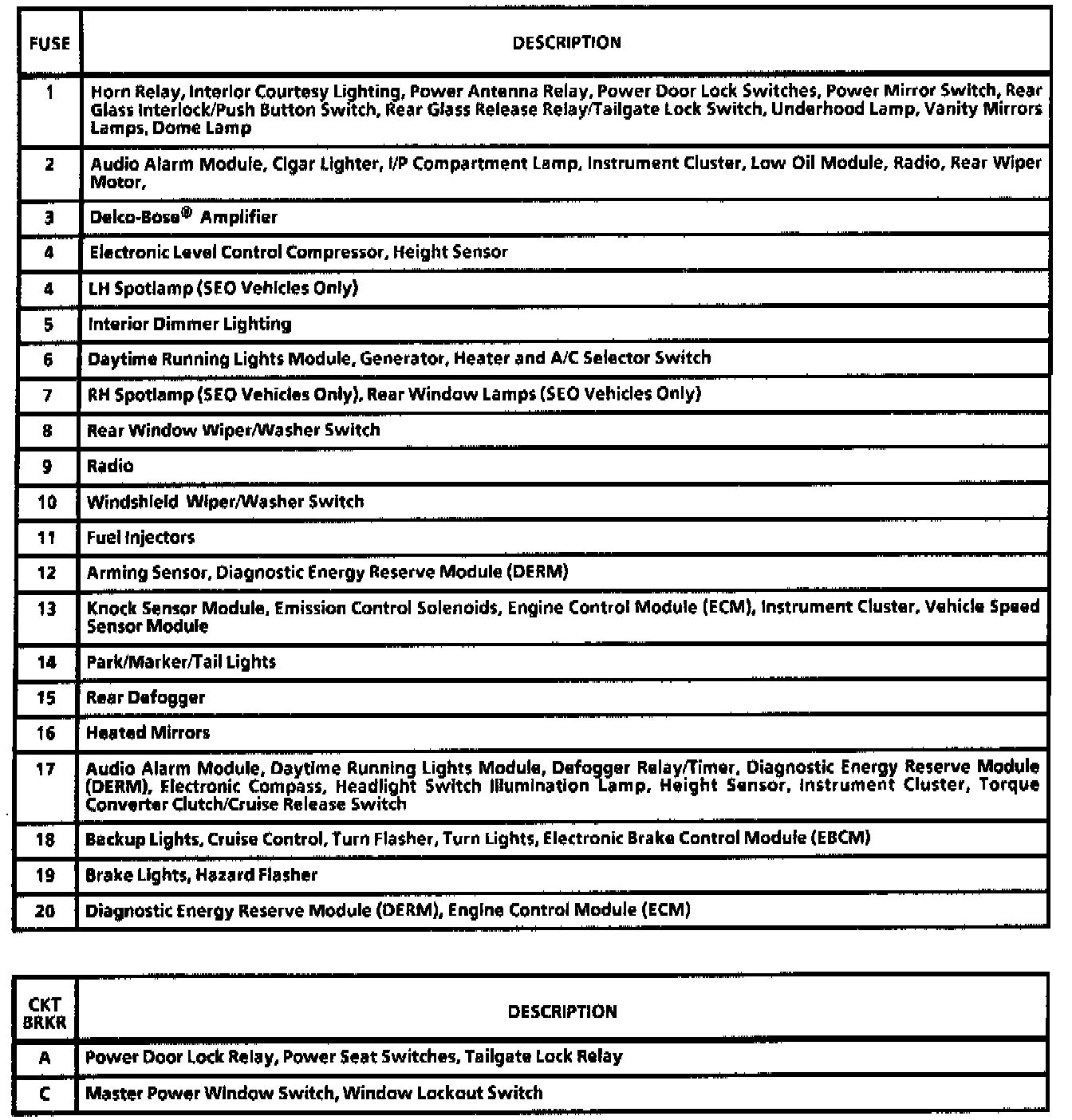

Fuse Panel. Sedan:
Fuse Panel. Sedan:

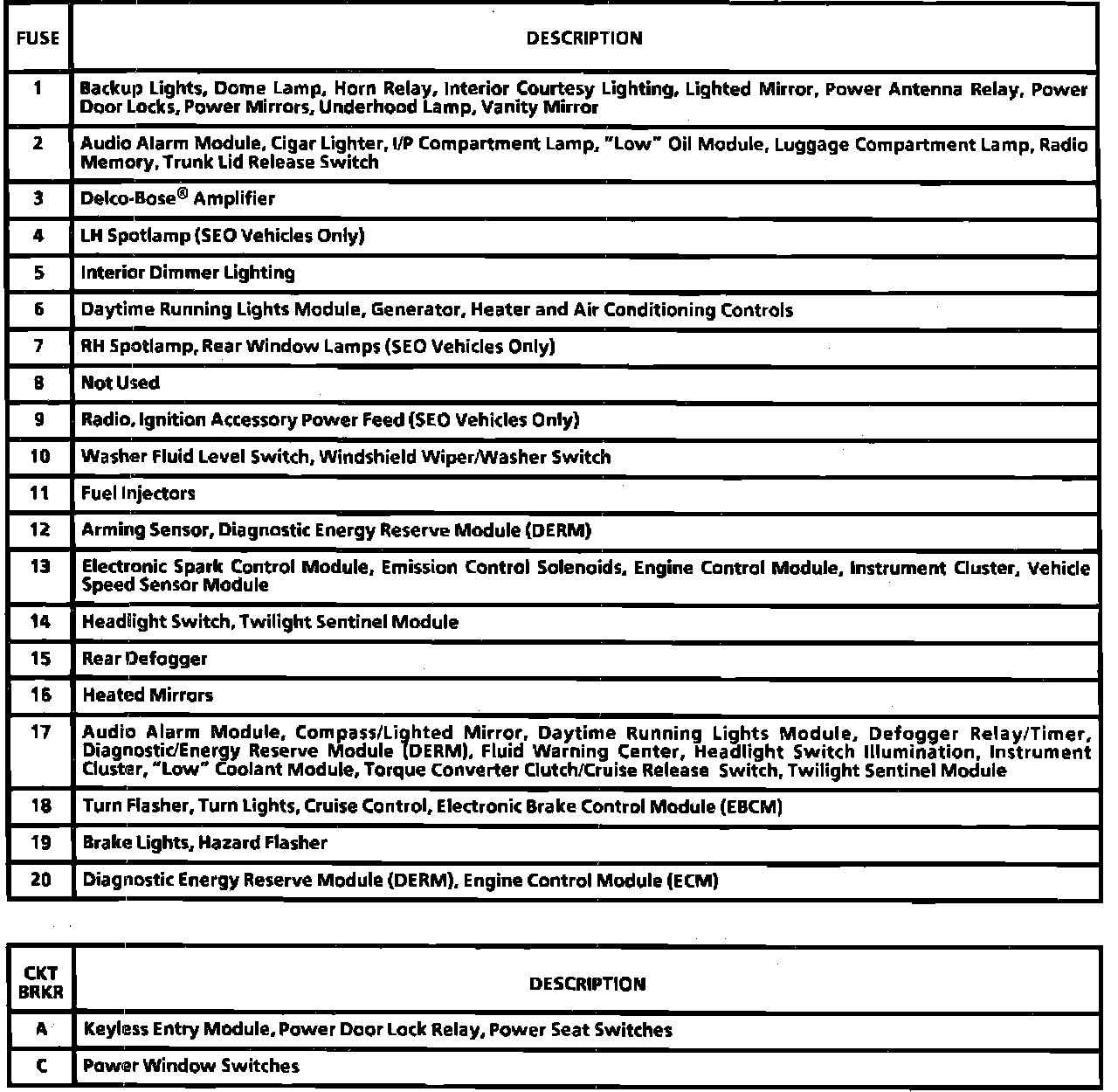

Fuse Block Details (wagon):
