Home >> Chevrolet >> 1993 >> Caprice RWD V8-305 5.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Speedometer Head >> Testing and Inspection

Speedometer Head: Testing and Inspection

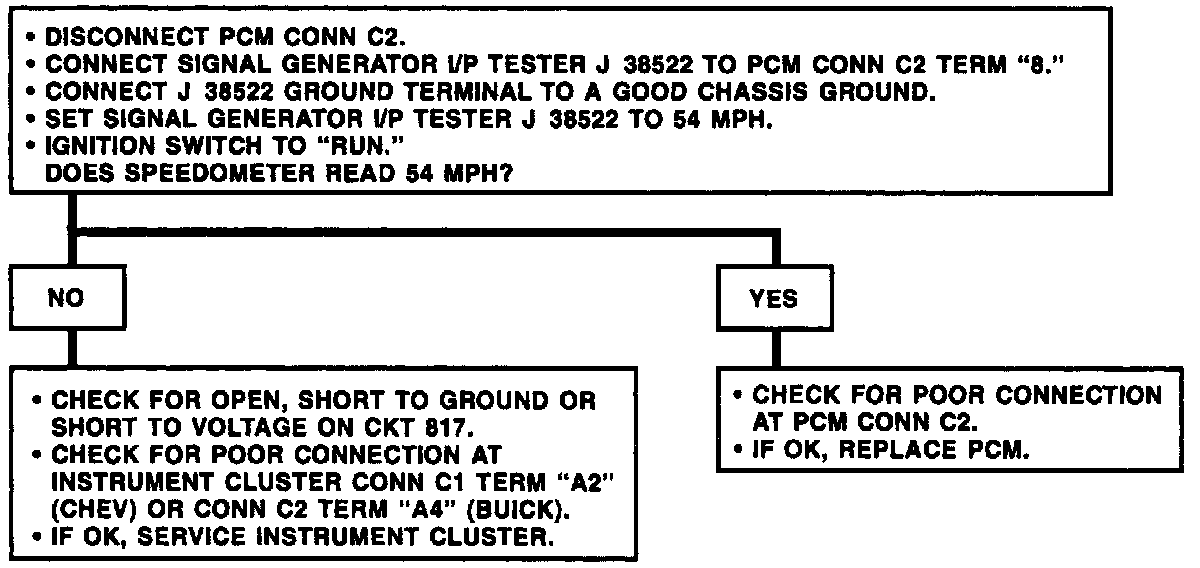

Fig. 102 Chart 11: Speedometer & Cruise Control Inoperative:
