Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1993
>>
Caprice RWD V8-305 5.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

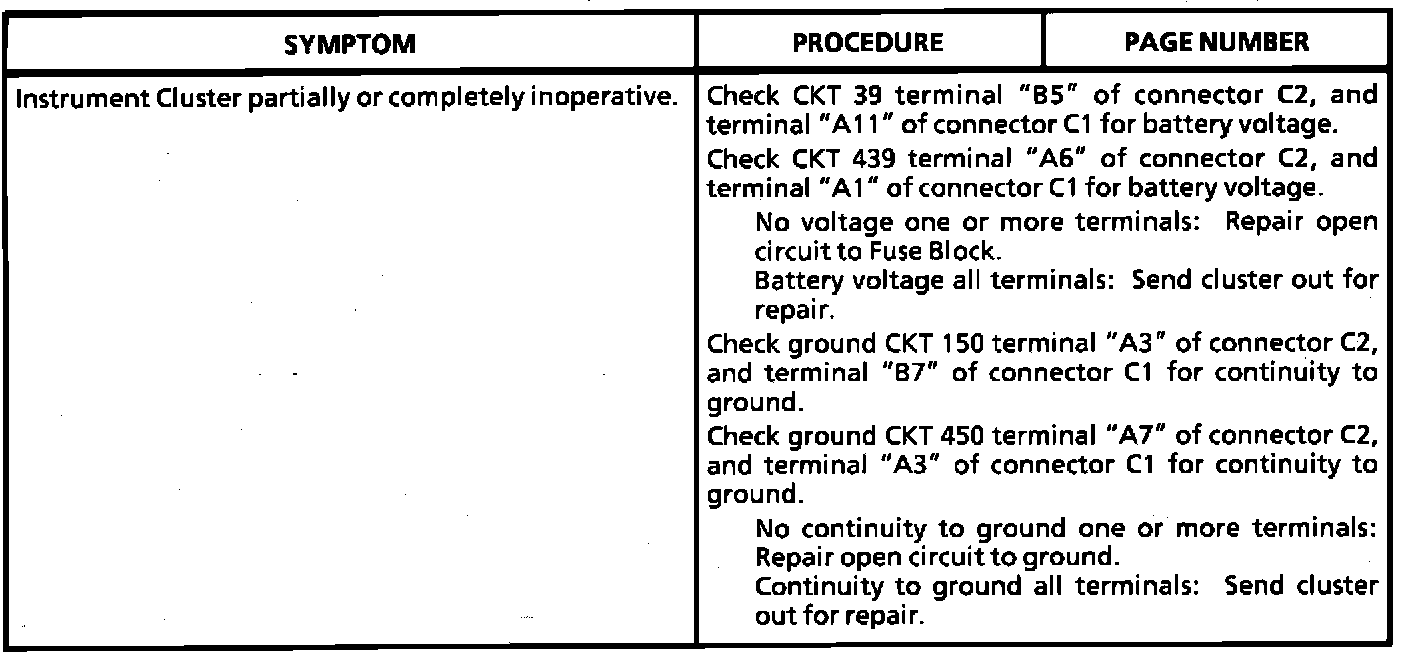

A Symptom Chart - Digital Cluster
A Symptom Chart - Digital Cluster

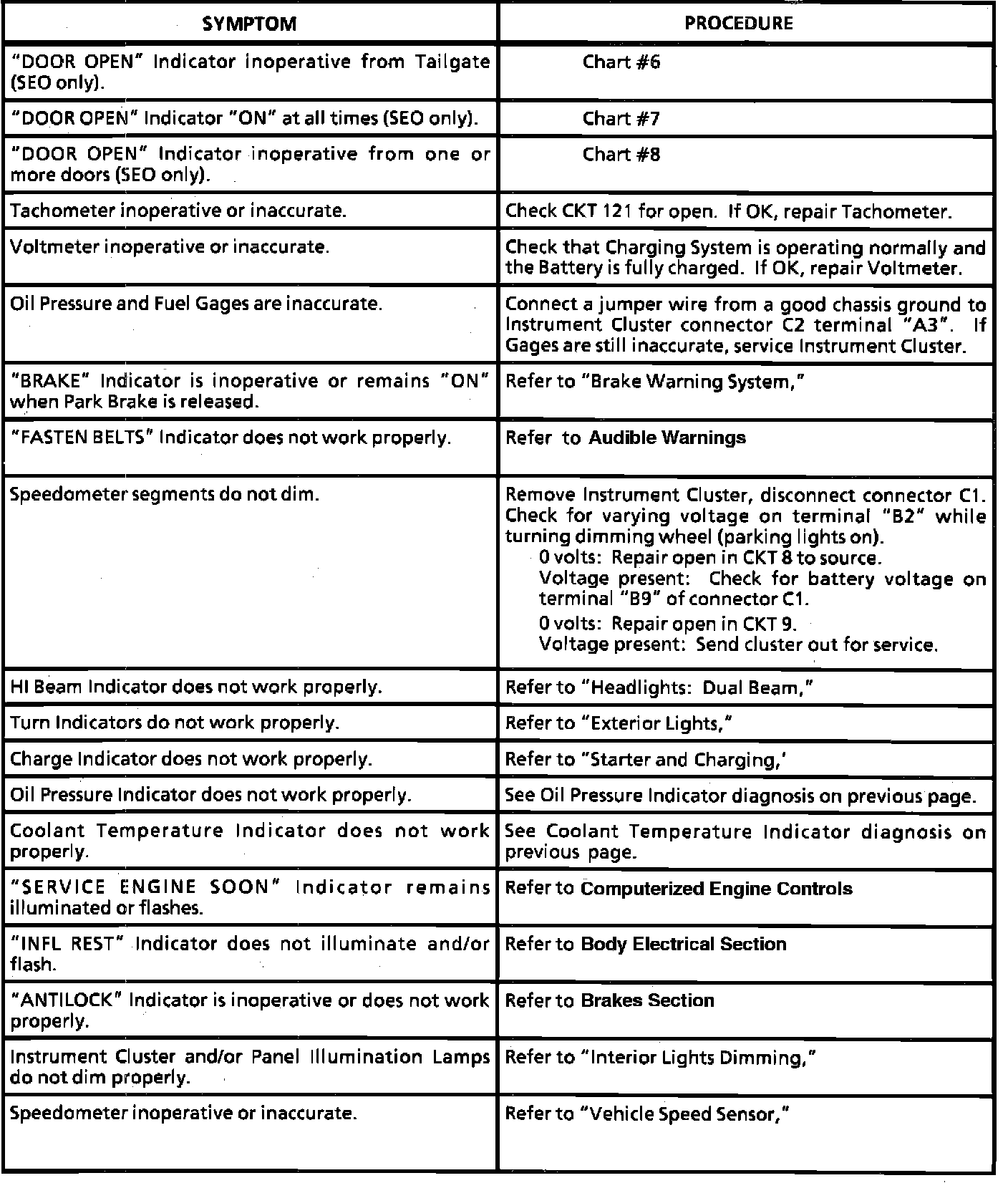

Instrument Panel (Digital Speedometer) - Symptom Chart:
Instrument Panel (Digital Speedometer) - Symptom Chart:
