Fuel Pump Control

Fuel Injection (Fuel Pump Control):



Fuel Injection (Fuel Pump Control):

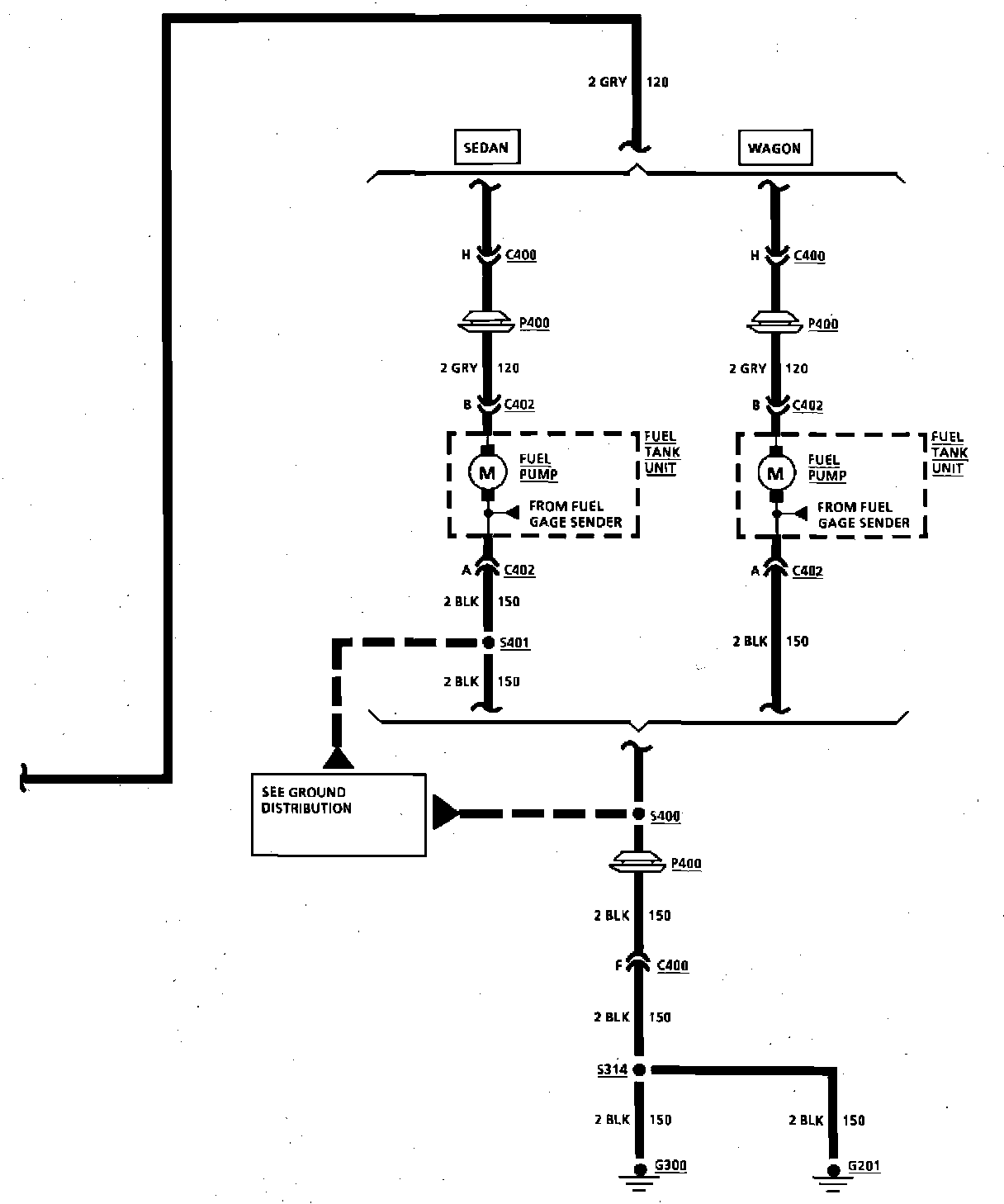

Throttle Body Injection: V8 VIN E And VIN 7 Fuel Pump Control:
