Service Engine Soon Indicator (SES) & Data Link Connector
Service Engine Soon Indicator (SES) & Data Link Connector

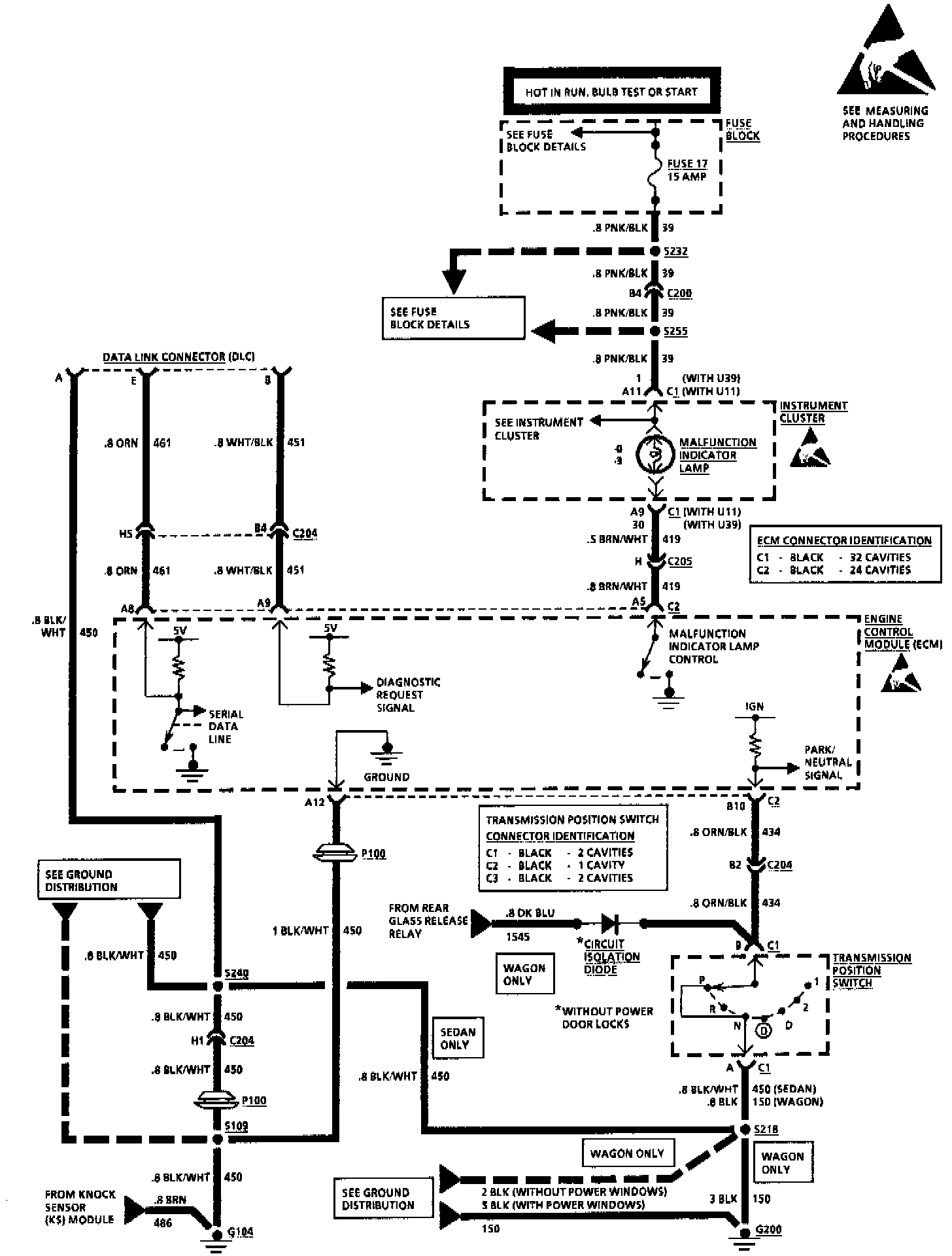

Throttle Body Injection: V8 VIN E And VIN 7 "Service Engine Soon" Indicator And Data Link Connector:
