System Specifications

Torque Specifications:

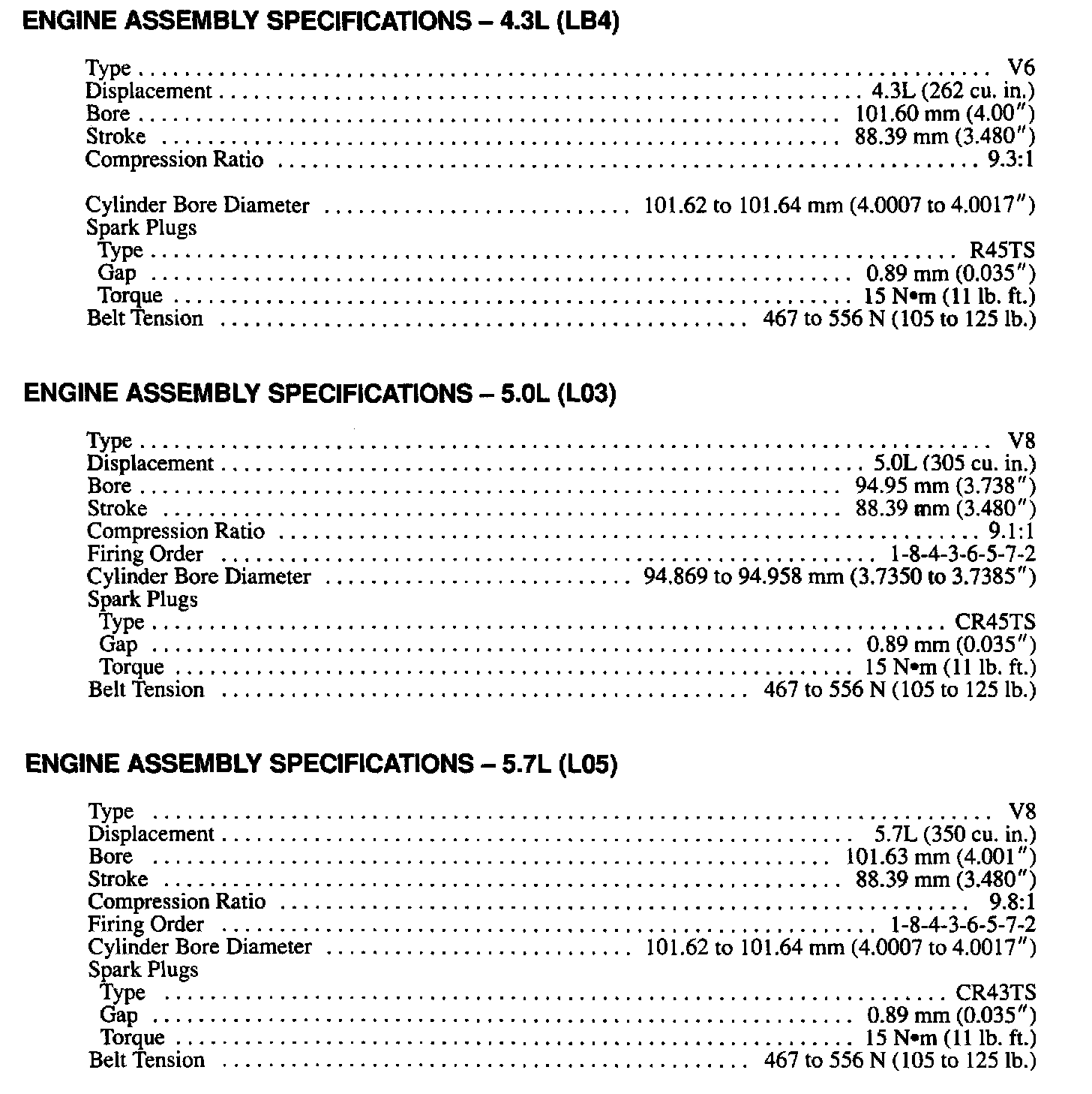

Engine Specifications:





Engine Specifications:

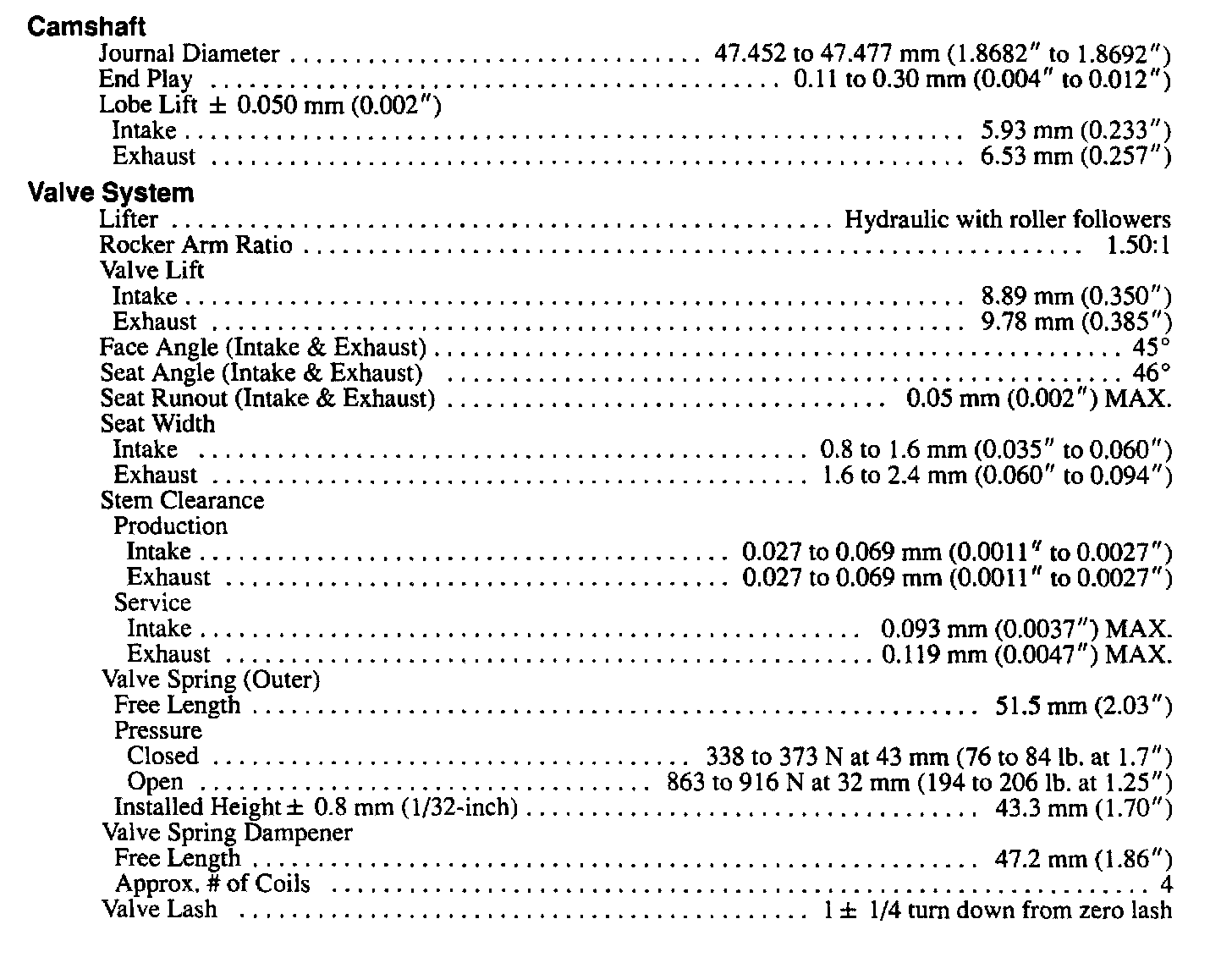

Continued Engine Specifications:




Continued Engine Specifications:

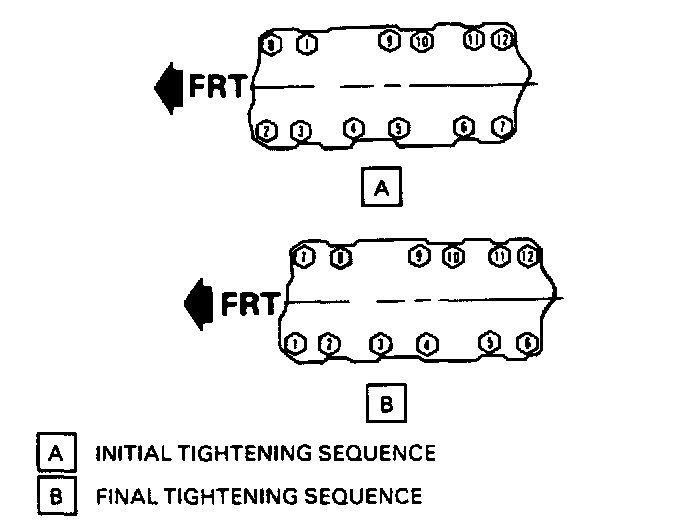

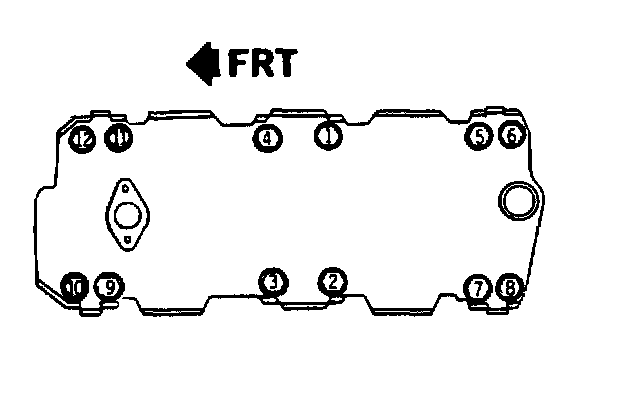

Intake Manifold Sequence (V8):





Intake Manifold Sequence (V6):

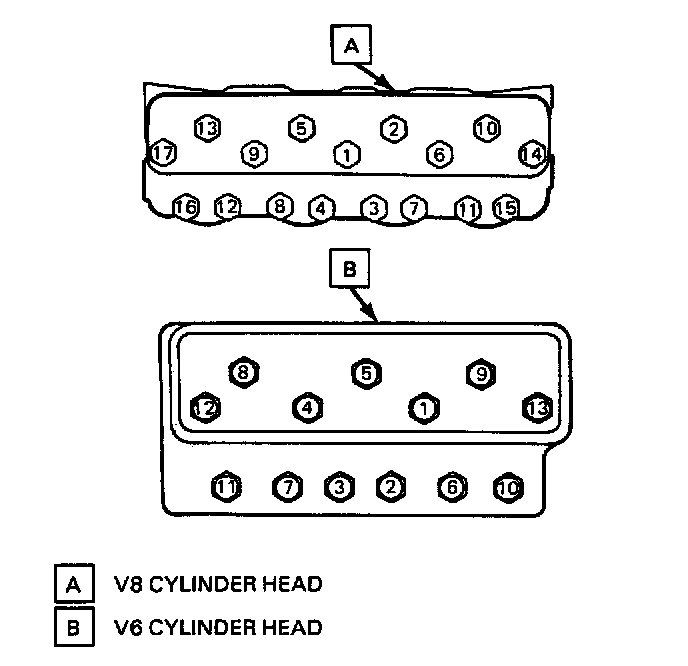

Cylinder Head Sequence:
