Windrush At B-Pillar Seal to Rear Door

X. Windrush due to gap condition at B-pillar seal to rear door.

1. Remove retaining screws and B-pillar seal.

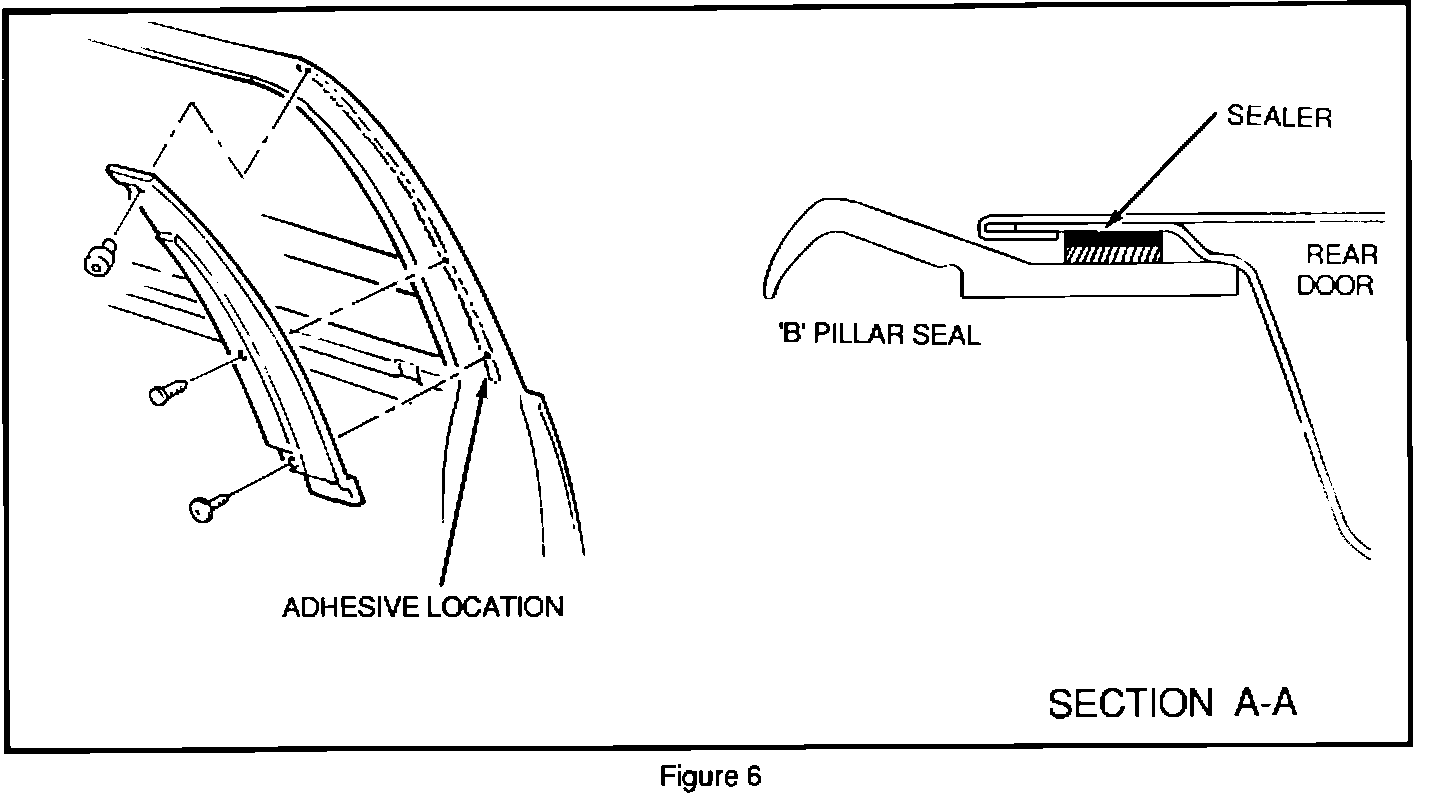

2. Apply a bead of 3M ULTROPRO AUTOBODY-SEALANT CLEAR (OR EQUIVALENT) to the door frame as shown in (Figure 6).

3. Reinstall B-pillar seal.

Labor Operation:
C1600 Right C1601 Left
Use applicable labor time guide for labor hours.



NOTE:
Individual labor allowances have been provided for each operation in this bulletin. However, the total time for all operations should not exceed 5.1 hours. The difference in total time and cumulated individual time is due to redundant or overlapping operations, which are not allowed.

Part Availability:

Parts are currently available from GMSPO.
