Service Procedure

FOR ALL INVOLVED VEHICLES

Have owner sign and date the "Option Selection Form" (included with the owner notification letter) indicating which option the owner is choosing (refund or battery replacement). Proceed with the service procedure which follows if the owner chooses to have the battery replaced. If the owner instead chooses to receive the refund, install a Campaign Identification Label and proceed to the "Claim Information" section of bulletin.

NOTICE:
WHEN HANDLING A BATTERY, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE FOLLOWED:

- Hydrogen gas is produced by the battery. A flame or spark near the battery may cause the gas to ignite.

- Battery (electrolyte) fluid is highly acidic. Avoid spilling on clothing or other fabric. Any spilled electrolyte fluid should be flushed from affected areas with large quantities of water and cleaned immediately.

- The battery should remain in horizontal position to insure electrolyte fluid remains over plates. Failure to keep plates covered with electrolyte fluid could cause sparking.

1. Remove 690 CCA battery and install 770 CCA battery following "Battery Assembly Replacement Procedure" on page 6D1-8 in the 1993 Chevrolet Caprice Service Manual.

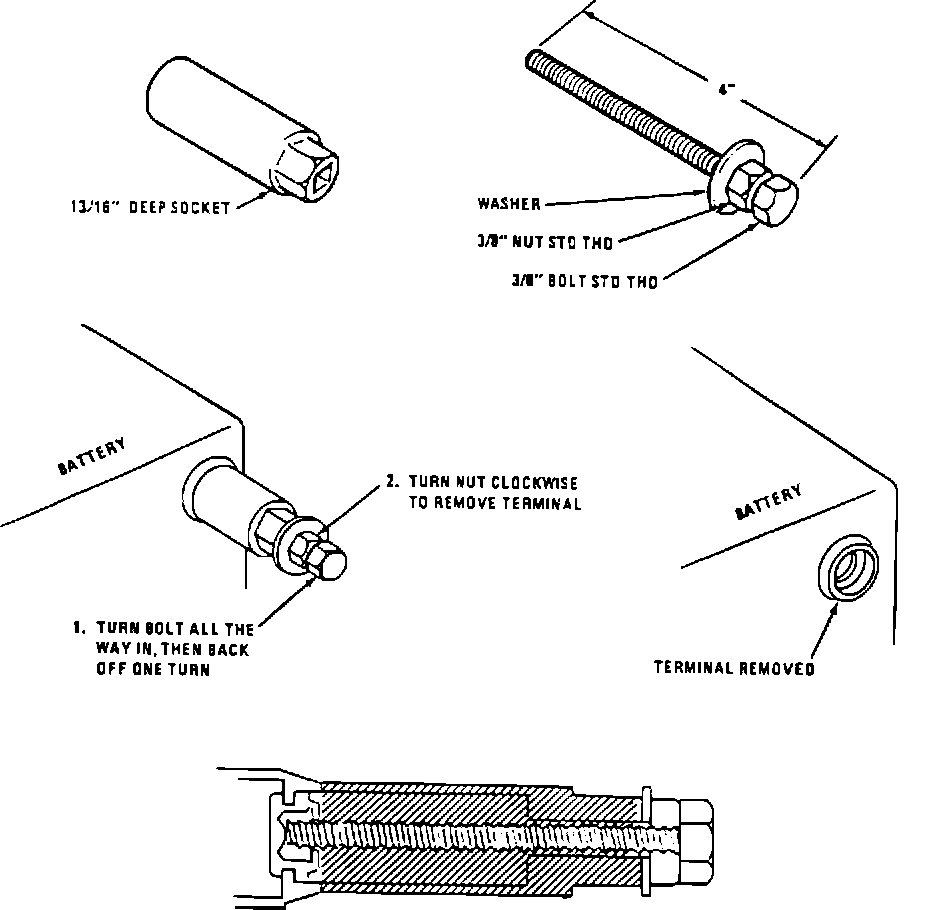

2. Destroy 690 CCA battery using the following procedure:

a. Place battery on a flat surface.

b. Place 13/16" deep well socket over battery cable connector.





c. Insert a 4" long bolt (as assembled in illustration) into socket and screw into terminal until it bottoms; then back off one turn.

d. Turn locknut until terminal connector nut is pulled out of battery.

NOTICE:
While turning locknut, bolt head must be held with a wrench and 13/16" deep socket must not rotate.

3. Install Campaign Identification Label.
