TCC - Revised Wiring Diagrams

Number: 93-267-7A
Section: 7A
Date: JULY 1993
Corporate Bulletin No.: 377128
ASE No.: A2

Subject:
TCC WIRING DIAGRAMS UPDATED

Model and Year:
1993 CAPRICE, CAMARO AND CORVETTE
1993 S/T TRUCKS WITH 4L60 AUTOMATIC TRANSMISSION

SERVICE UPDATE

BULLETIN COVERS:
New Product Information for 1993 HYDRA-MATIC 4L60 transmissions. This information has been updated since publication of the 1993 Service Manual and should be noted accordingly. Be certain to familiarize yourself with these updates to properly repair the 1993 HYDRA-MATIC 4L60 transmission.

SERVICE MANUAL REFERENCE:

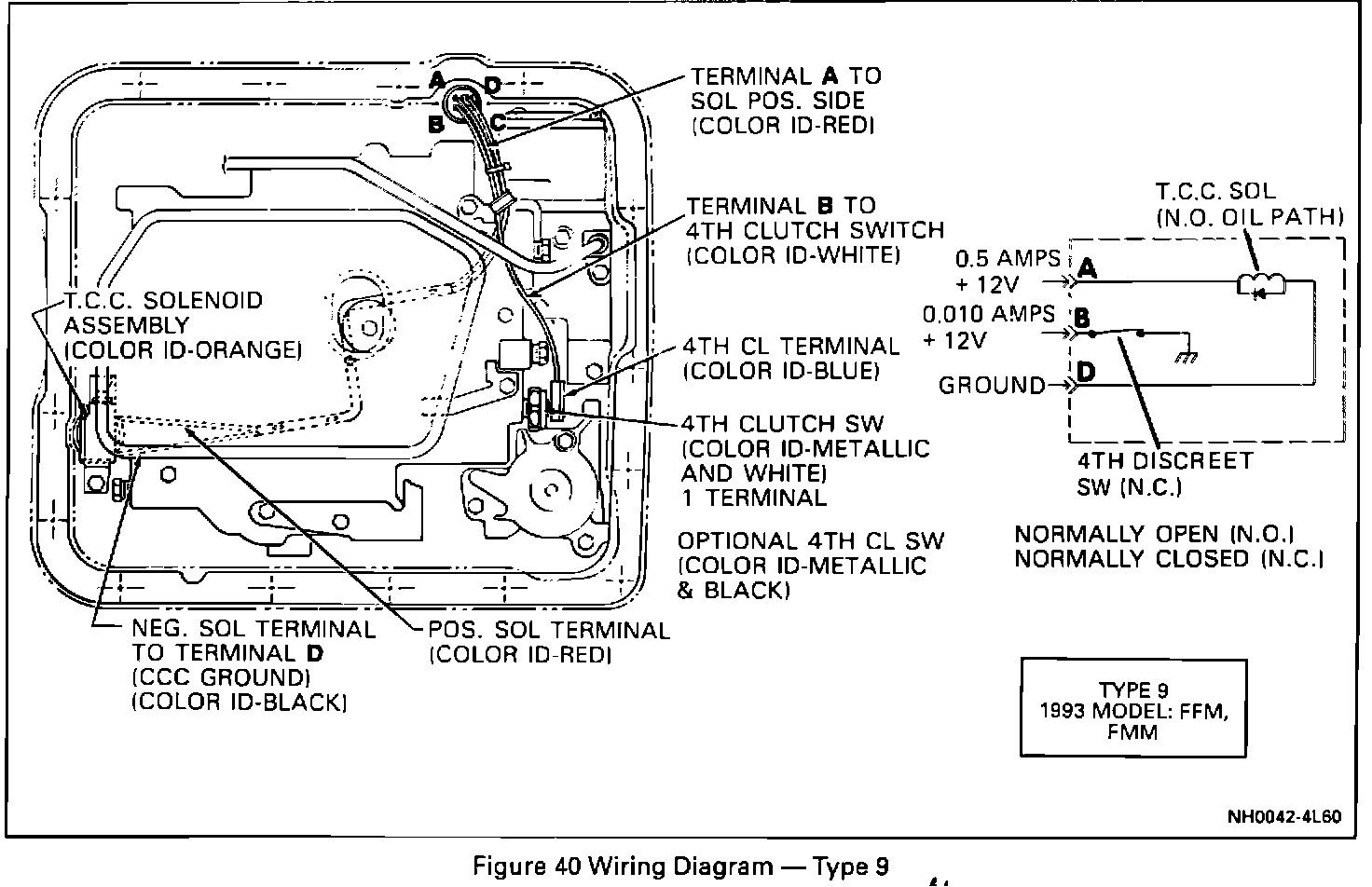

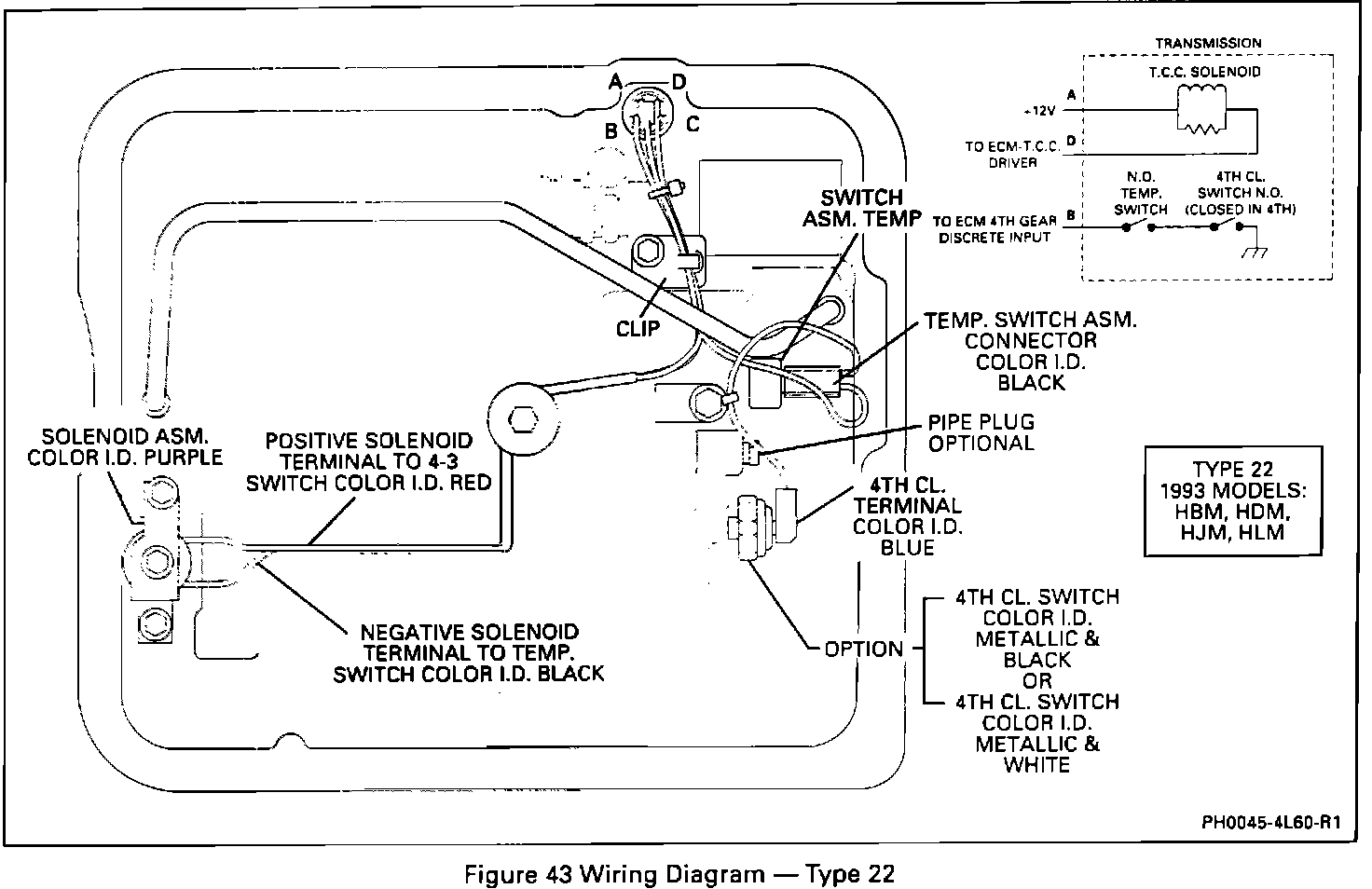

Update your 1993 Service Manual Section 7A-15A Automatic Transmission Diagnosis with the following three (3) pages of updated TCC wiring diagrams.








Manual Update Page, 7A-15A-44








Manual Update Page, 7A-15A-43








Manual Update Page, 7A-15A-42
