Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1993
>>
Caprice Wagon RWD V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>

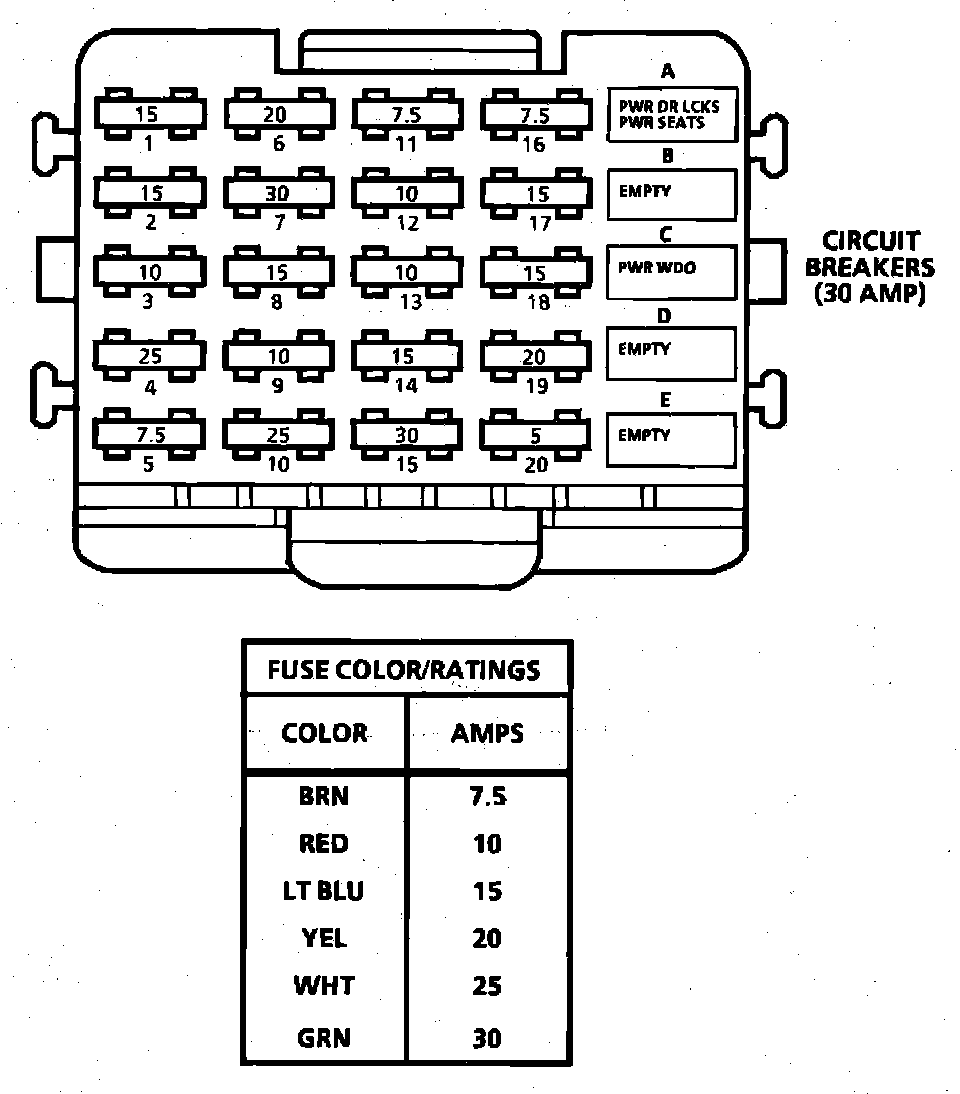

Fuse Block Details
Fuse Block Details

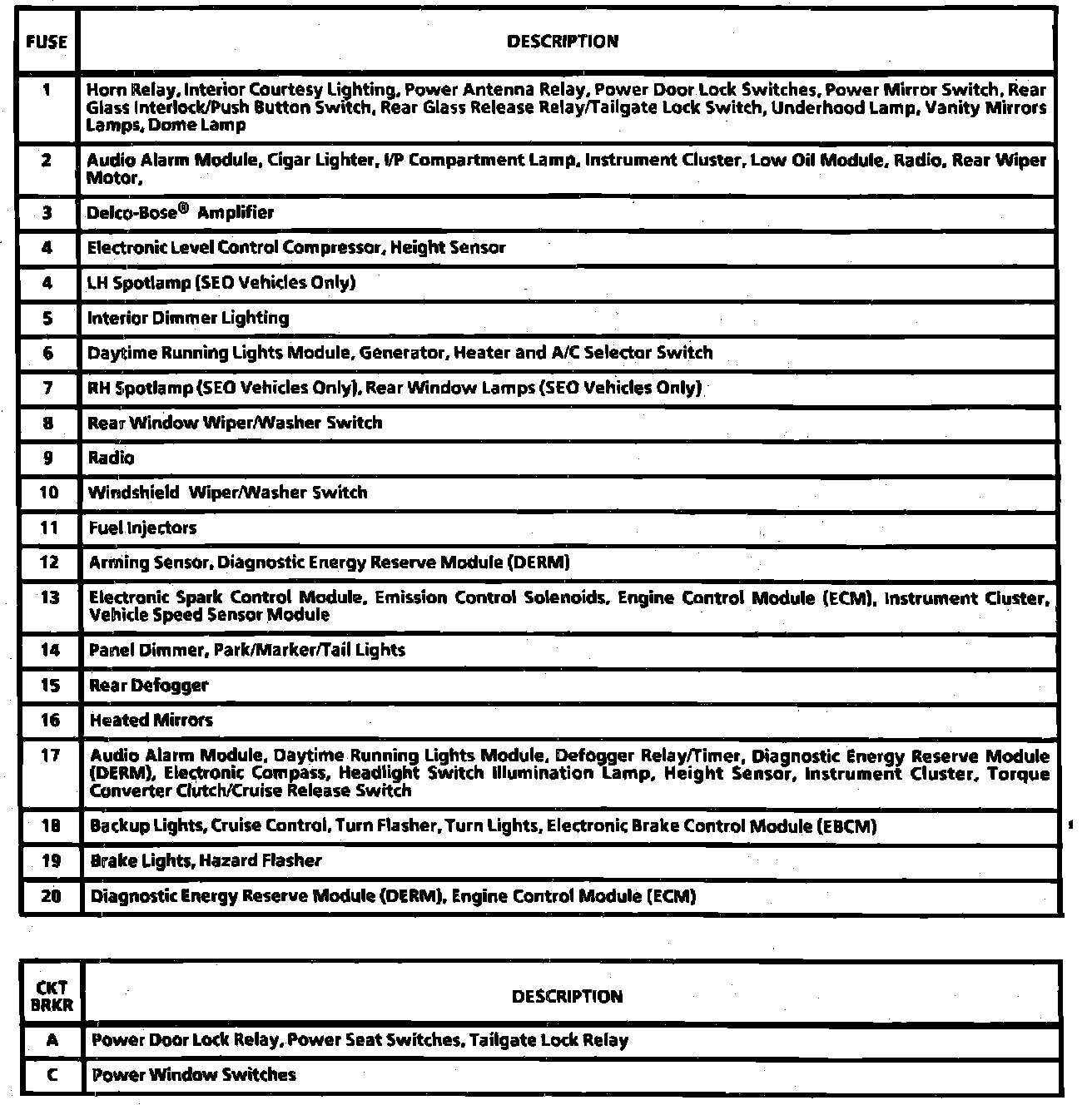

Fuse Panel. Wagon:
Fuse Panel. Wagon:

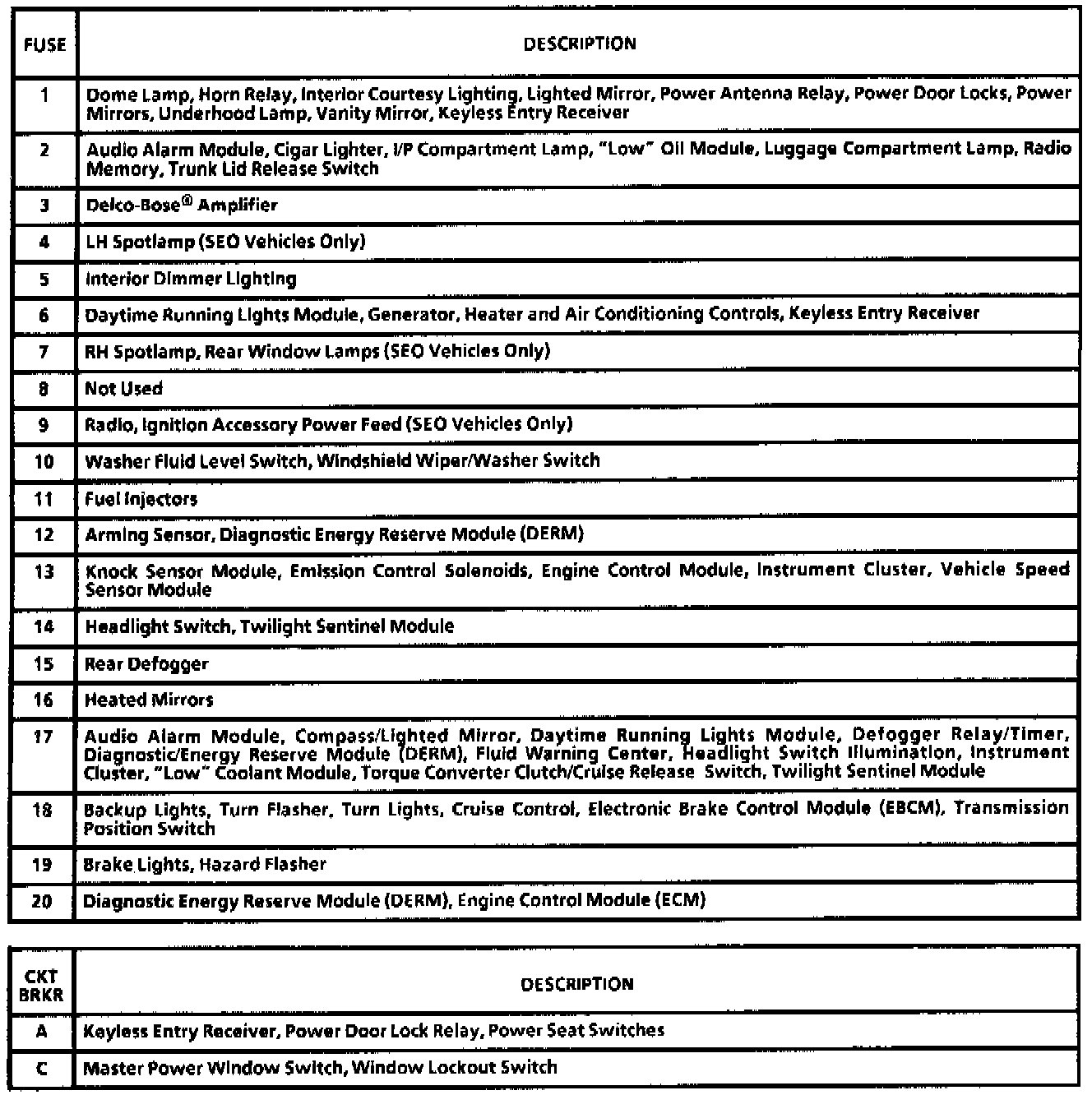

Fuse Block Details (Sedan): Description:
