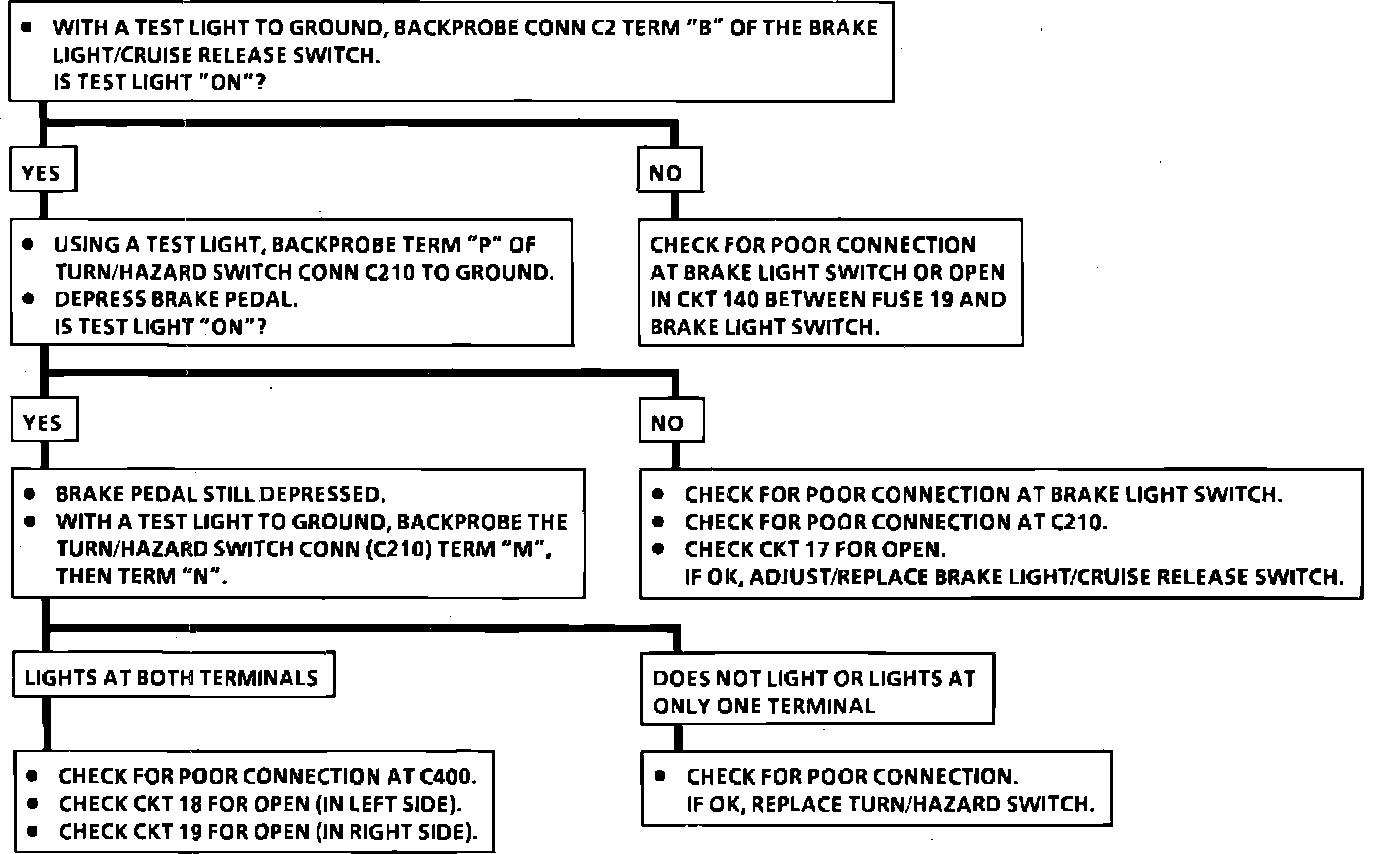

Chart #5 - Rear Light(S) Inoperative, Front Turn Lights OK
Chart #5 - Rear Light(S) Inoperative, Front Turn Lights OK
Chart #5 - RH and/or LH Stop/Turn Lights Inoperative, Front Turn Lights Operate Normally:
