Home >> Chevrolet >> 1993 >> Cavalier/Z24 V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Sedan and Station Wagon

Sedan and Station Wagon

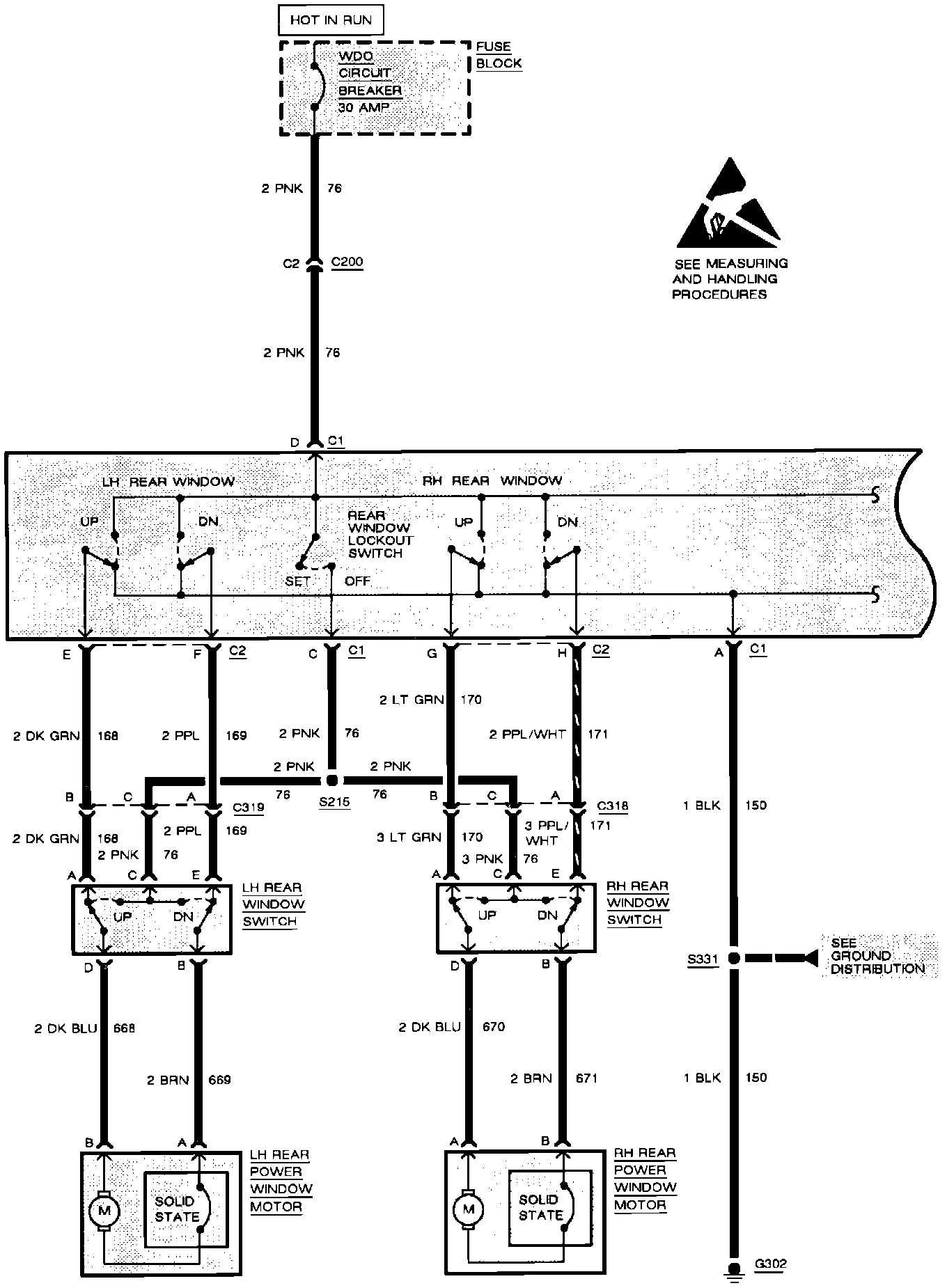

Wiring Diagram:



Wiring Diagram:
