A/C - Vacuum Hose Color Code Revision

Number: 93-200-8A
Section: 8A
Date: MAY 1993
Corporate Bulletin No.: 338105
ASE No.: A7

Subject:
HVAC VACUUM HOSE COLORS REVISION

Model and Year:
1993 CAVALIER, CORSICA AND BERETTA

SERVICE UPDATE

HVAC vacuum hose colors need to be revised for the service manuals referenced (Section 8A).

The attached figures show the correct hose color referencing.

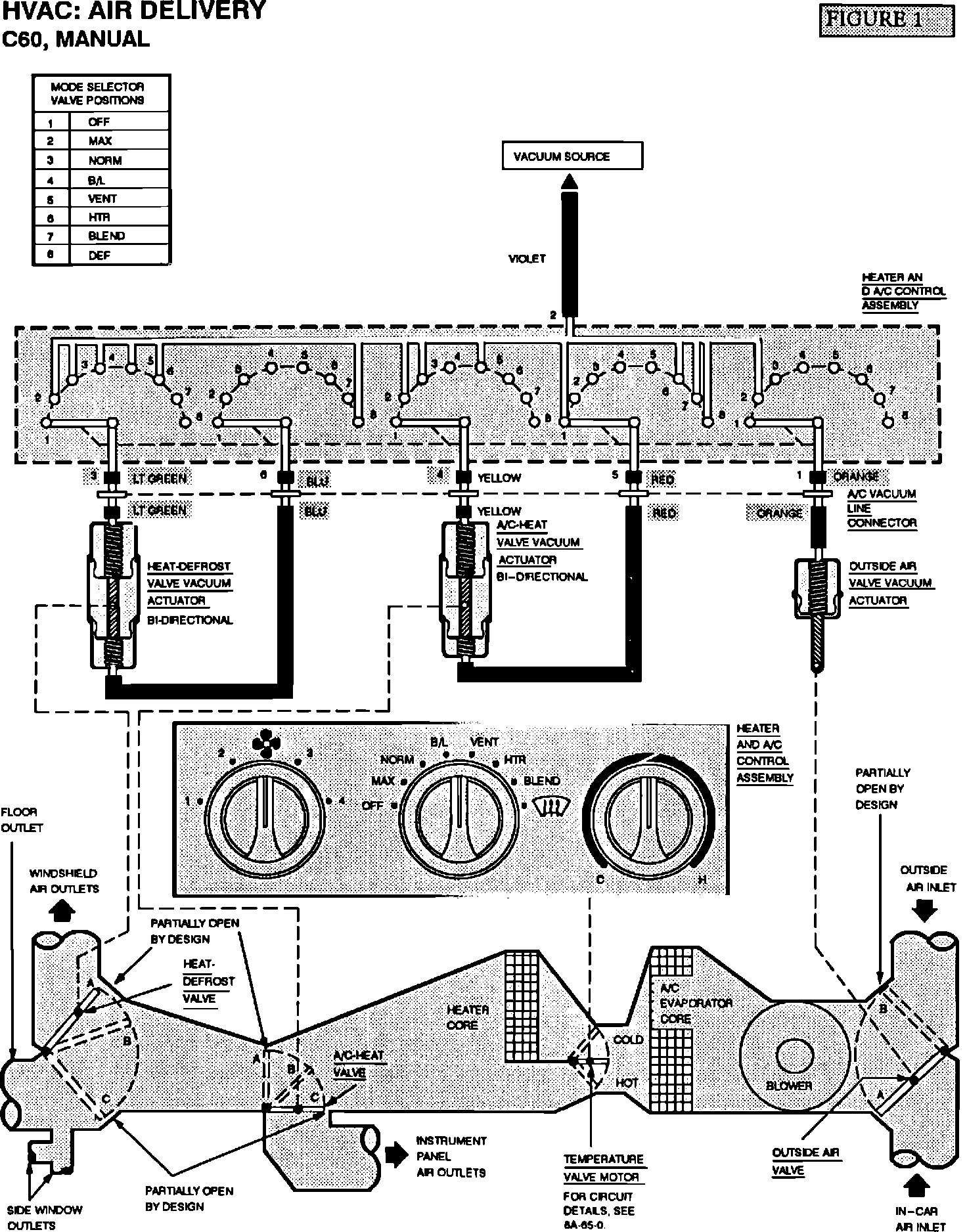

Figure 1, (Pg. 65-1) - Chevrolet "L" Series

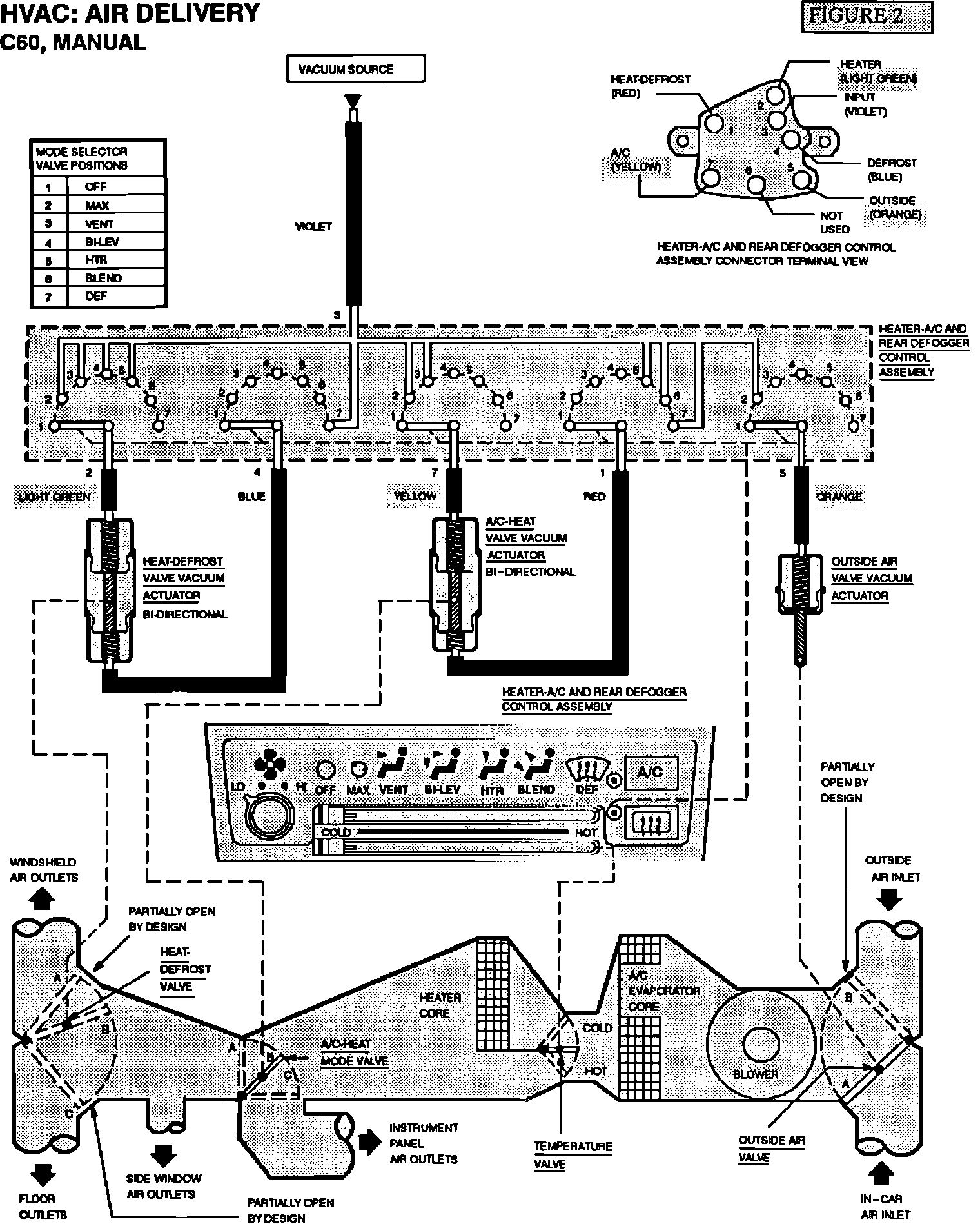

Figure 2, (Pgs. 60-1, 65-0) - Chevrolet "J" Series
