Front Side Upper Auxiliary Weatherstrip - R&R
Number: 93-285-10Section: 10
Date: AUGUST 1993
Corporate Bulletin No.: 331044
ASE No.: B1
Subject:
FRONT SIDE UPPER AUXILIARY WEATHERSTRIP REMOVAL/INSTALLATION PROCEDURES
Model and Year:
1993 CAVALIER
SERVICE UPDATE
Beginning on May 1, 1993, the "J" models, excluding convertible, started with production of front side upper auxiliary weatherstrips. The following outlines the procedures, illustrations, parts and labor information relating to the servicing of these components.
SERVICE INFORMATION:
Remove or disconnect:
1. Weatherstrip screws.
2. Weatherstrip.
Install or connect:
1. Weatherstrip.

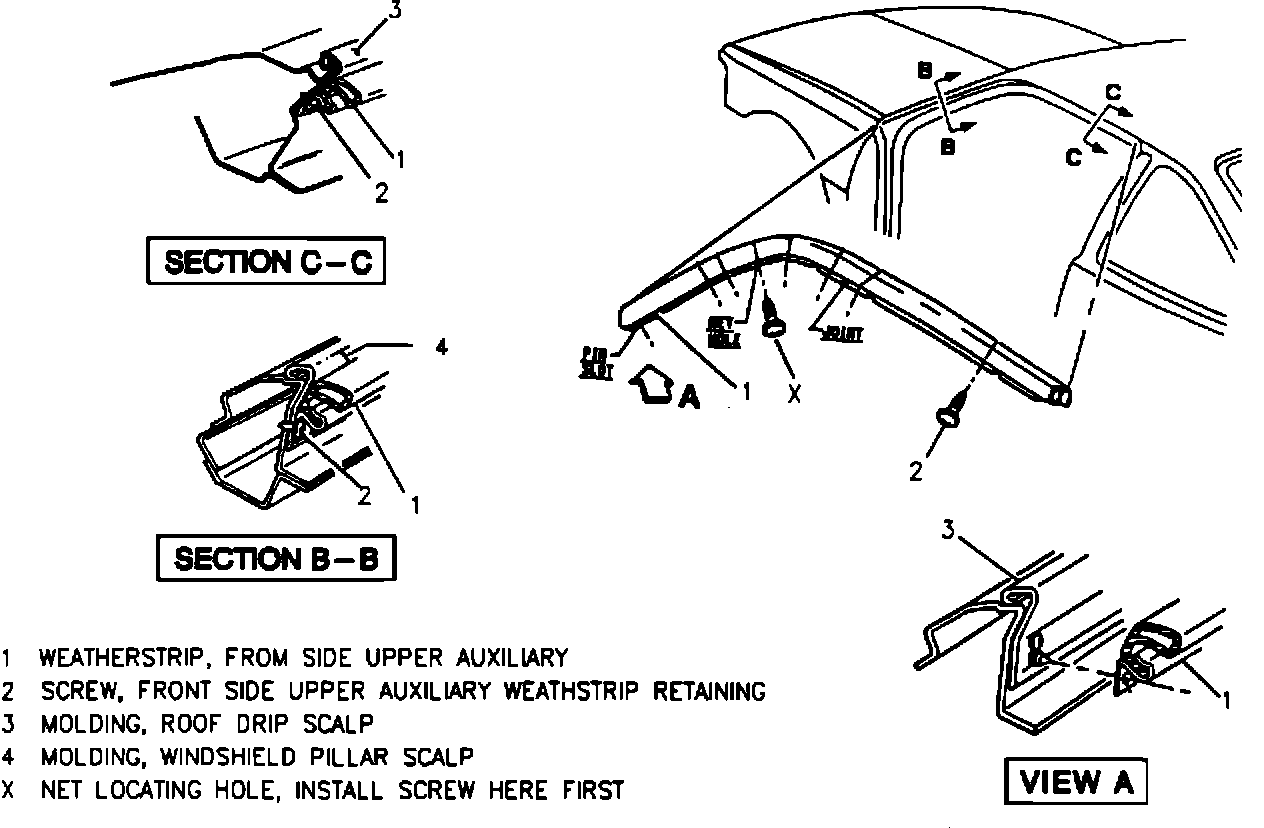

2. Weatherstrip screws starting with the locating screw first, refer to illustration.
PARTS INFORMATION:
Parts are currently available from GMSPO.
Labor Operation: C1026 - Right Side
C1027 - Left Side
