Home >> Chevrolet >> 1993 >> Cavalier/Z24 V6-191 3.1L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Diagnostic Charts >> Chart 2 Wipers Low Speed Inoperative

Chart 2 Wipers Low Speed Inoperative

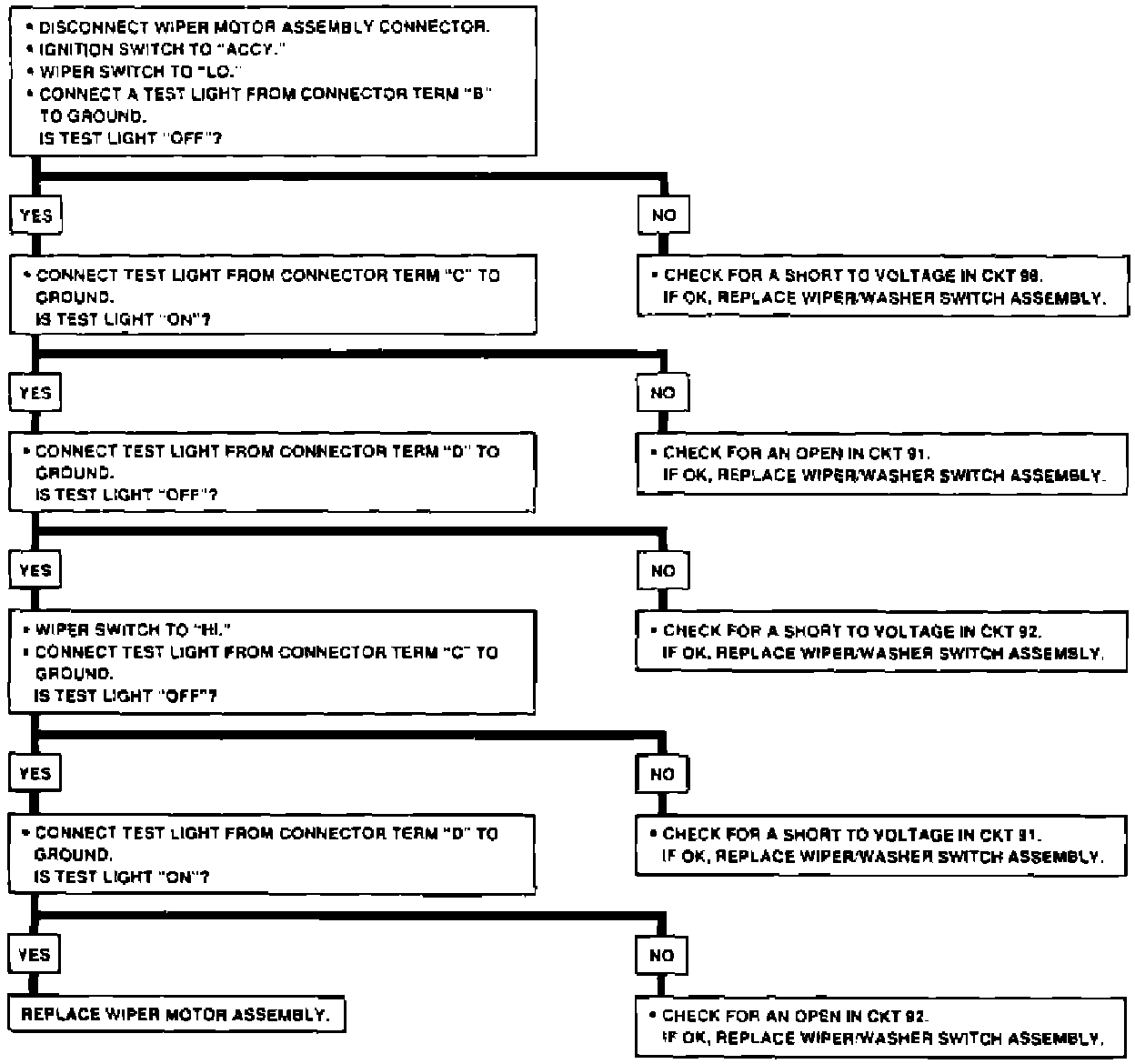

Fig. 21 Chart 2 - Wipers Run At High Speed Only:
