Chart 3 Wipers Run at Low Speed Only
Chart 3 Wipers Run at Low Speed Only

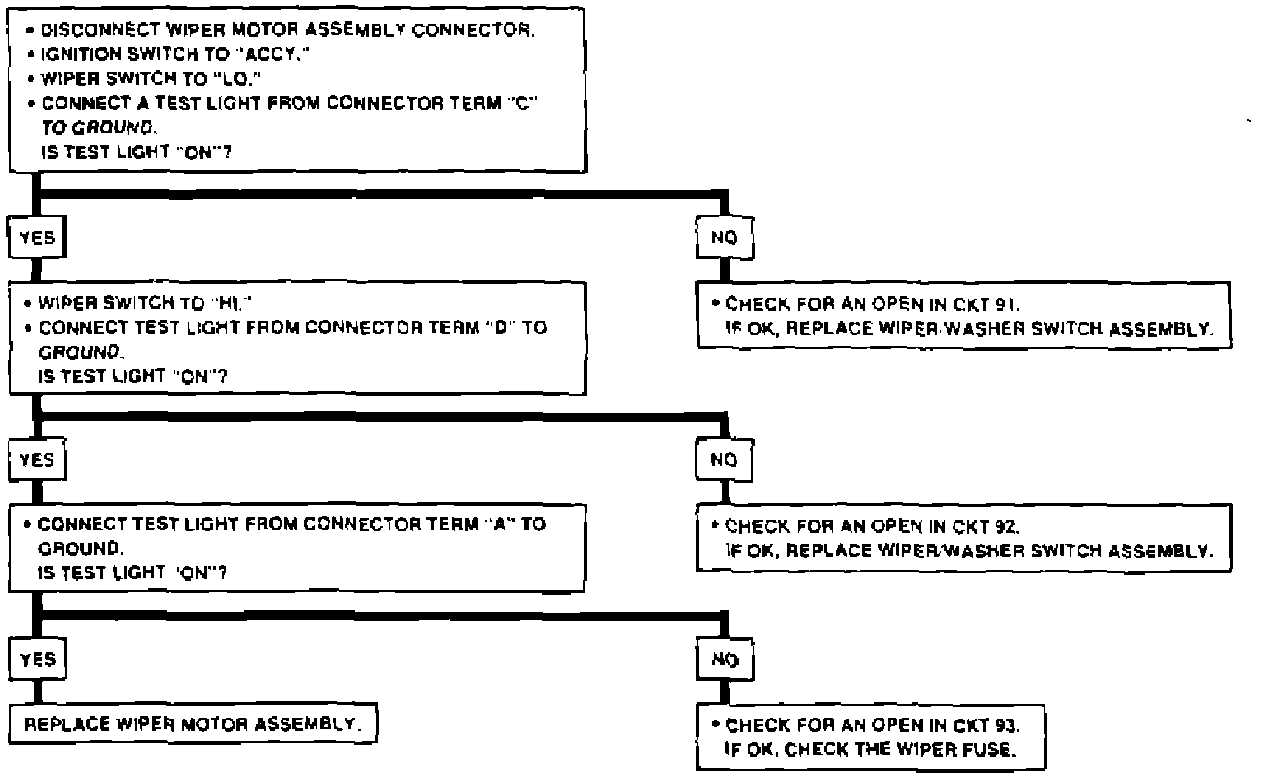

Fig. 22 Chart 3 - Wipers Run At Low Speed Only:
