Power, Grounds and Malfunction Indicator Lamp
Power, Grounds and Malfunction Indicator Lamp

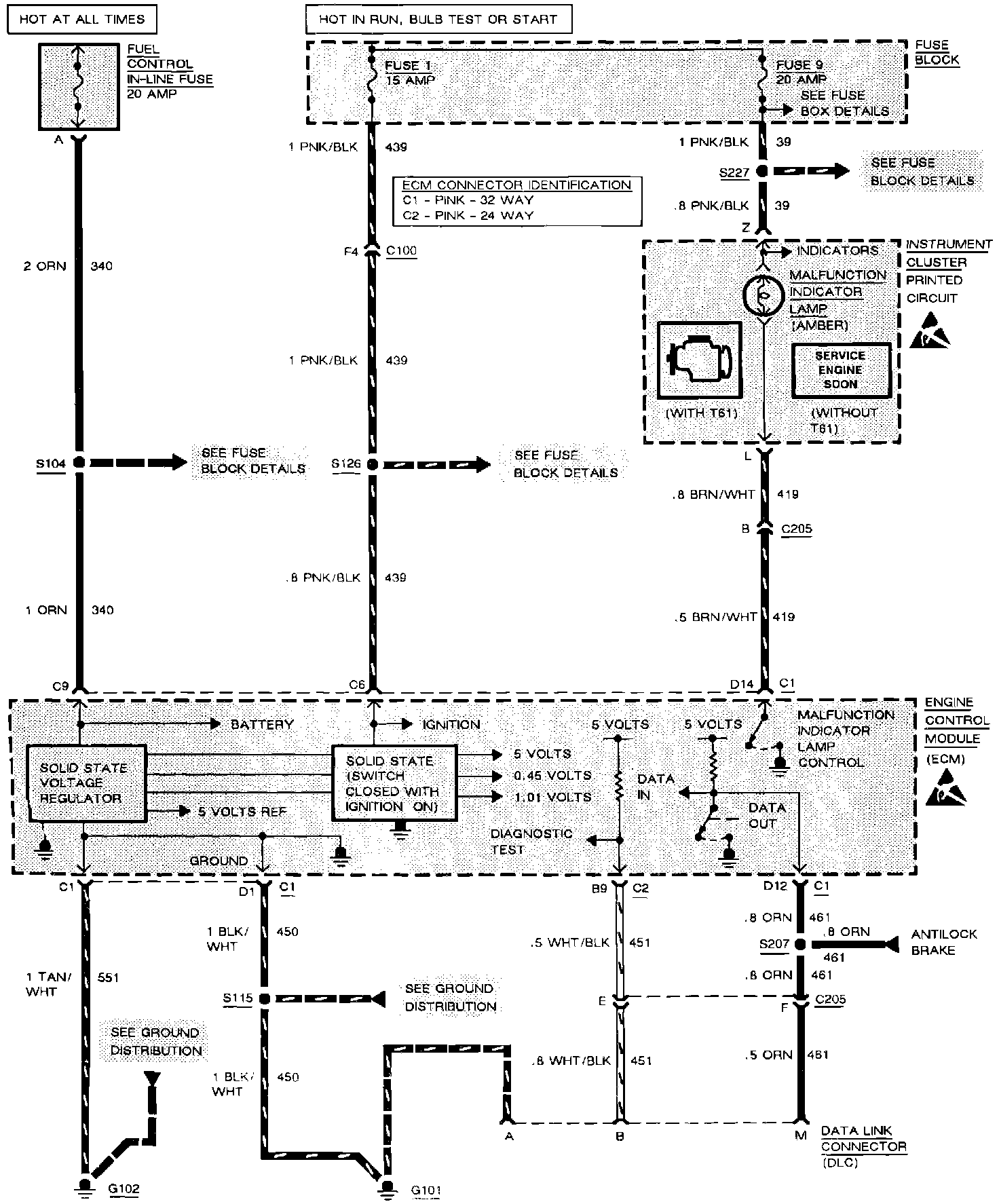

Wiring Diagram:
