Power Window Switch
Power Window Switch

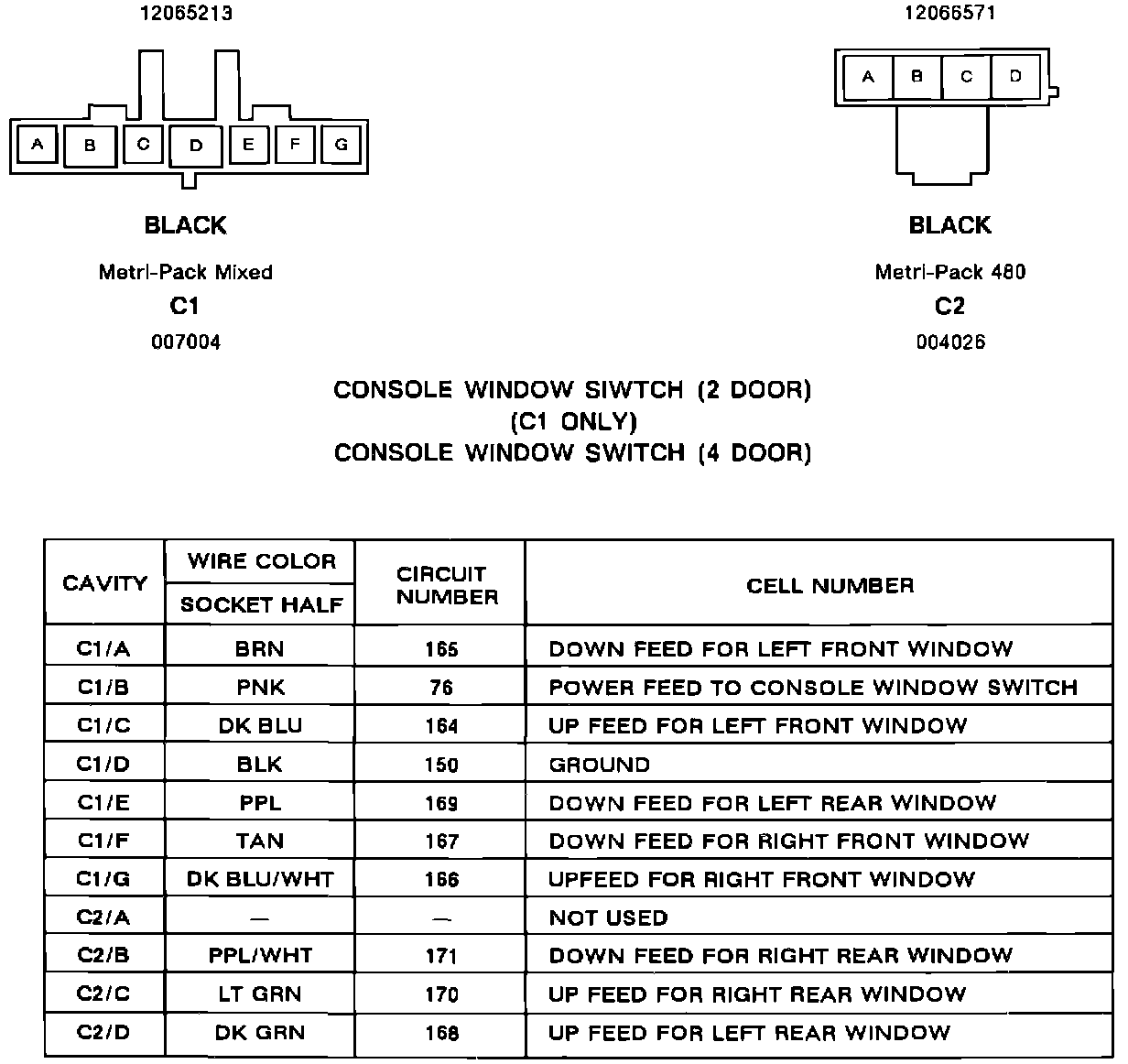

Console Window Switch Connector:

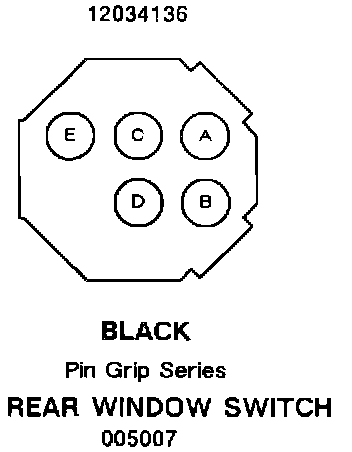

Rear Window Switch Connector:
