Pictorial Views

ALDL Connector:

ALDL CONNECTOR

Pictorial View:

1 = GENERATOR
2 = ENGINE WIRING
3 = A/C LOW PRESSURE SWITCH
4 = GENERATOR POWER LEAD

Pictorial View:

1 = TRANSAXLE POSITION SWITCH
2 = CRANKSHAFT SENSOR
3 = DETONATION SENSOR CONNECTOR
4 = ENGINE HARNESS
5 = VEHICLE SPEED SENSOR

Pictorial View:

1 = BACK-UP LIGHT SWITCH CONNECTOR
2 = CRANKSHAFT SENSOR
3 = DETONATION SENSOR
4 = VEHICLE SPEED SENSOR

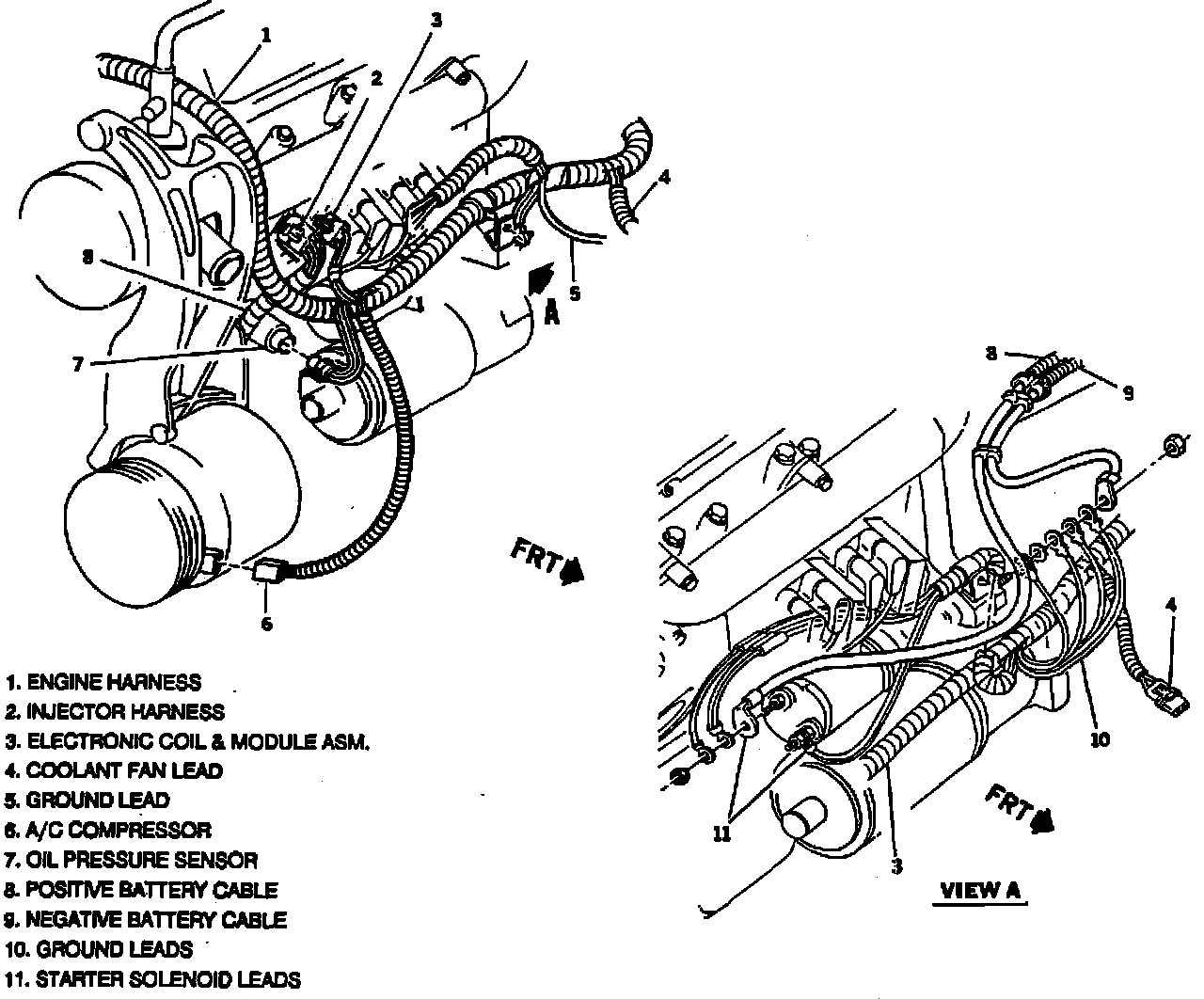

Engine Wiring:

1 = ENGINE HARNESS
2 = INJECTOR HARNESS
3 = ELECTRONIC COIL & MODULE ASM.
4 = COOLANT FAN LEAD
5 = GROUND LEAD
6 = A/C COMPRESSOR
7 = OIL PRESSURE SENSOR
8 = POSITIVE BATTERY CABLE
9 = NEGATIVE BATTERY CABLE
10 = GROUND LEADS
11 = STARTER SOLENOID LEADS

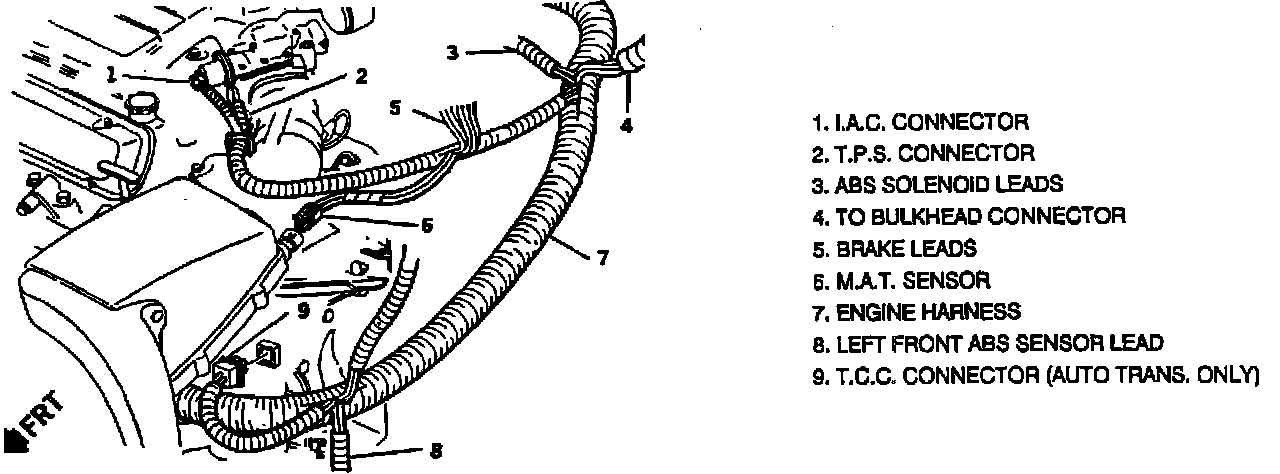

Engine Wiring:

1 = IAC CONNECTOR
2 = TPS CONNECTOR
3 = ABS SOLENOID LEADS
4 = TO BULKHEAD CONNECTOR
5 = BRAKE LEADS
6 = MAT SENSOR
7 = ENGINE HARNESS
8 = LEFT FRONT ABS SENSOR LEAD
9 = TCC CONNECTOR (AUTO TRANS. ONLY)

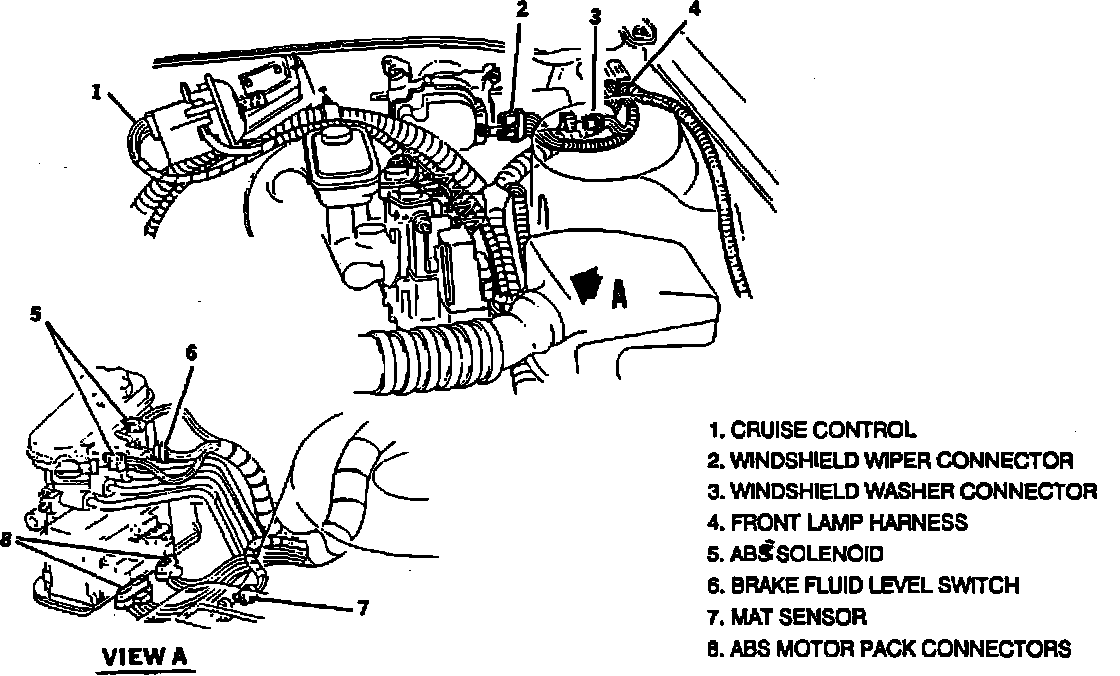

Engine Wiring:

1 = CRUISE CONTROL
2 = WINDSHIELD WIPER CONNECTOR
3 = WINDSHIELD WASHER CONNECTOR
4 = FRONT LAMP HARNESS
5 = ABS SOLENOID
6 = BRAKE FLUID LEVEL SWITCH
7 = MAT SENSOR
8 = ABS MOTOR PACK CONNECTORS

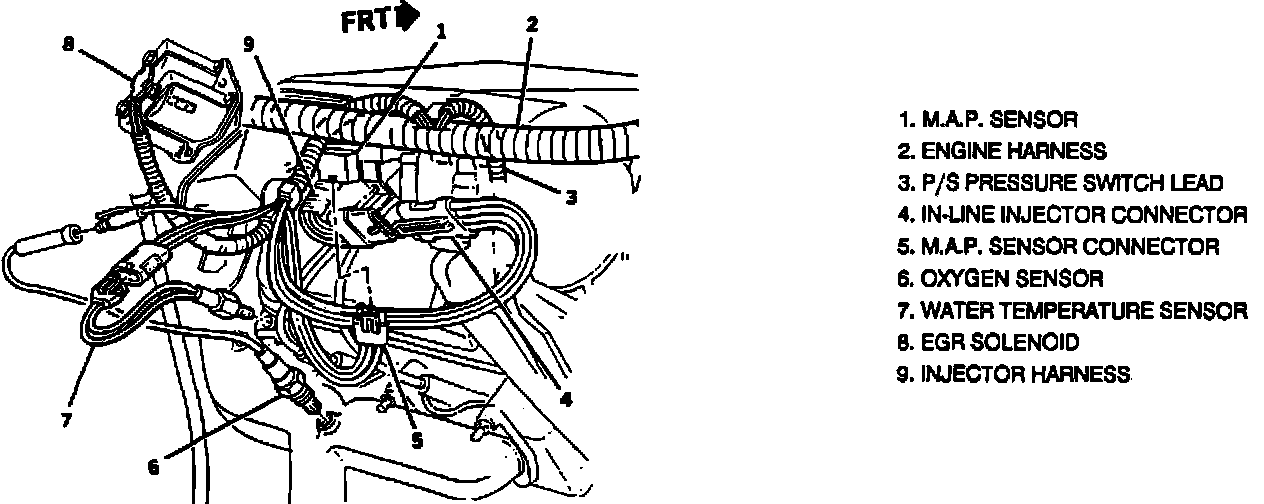

Engine Wiring:

1 = MAP SENSOR
2 = ENGINE HARNESS
3 = P/S PRESSURE SWITCH LEAD
4 = IN-LINE INJECTOR CONNECTOR
5 = MAP SENSOR CONNECTOR
6 = OXYGEN SENSOR
7 = WATER TEMPERATURE SENSOR
8 = EGR SOLENOID
9 = INJECTOR HARNESS

Engine Wiring:

1 = BLOWER MOTOR
2 = A/C COMPRESSOR RELAY
3 = ENGINE COMPRESSOR RELAY
4 = FUEL PUMP RELAY
5 = MULTI-USE RELAY BRACKET
6 = ENGINE HARNESS
7 = ELECTRIC BRAKE CONTROL RELAY
8 = ABS MODULE ASM.
9 = BLOWER MOTOR RESISTOR
10 = FUEL PUMP FUSE
11 = ELECTRICAL JUNCTION BLOCK
12 = RIGHT FRONT ABS LEAD
13 = FRONT SIR LEAD
