Home >> Chevrolet >> 1993 >> Corsica V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> 4 Door

4 Door

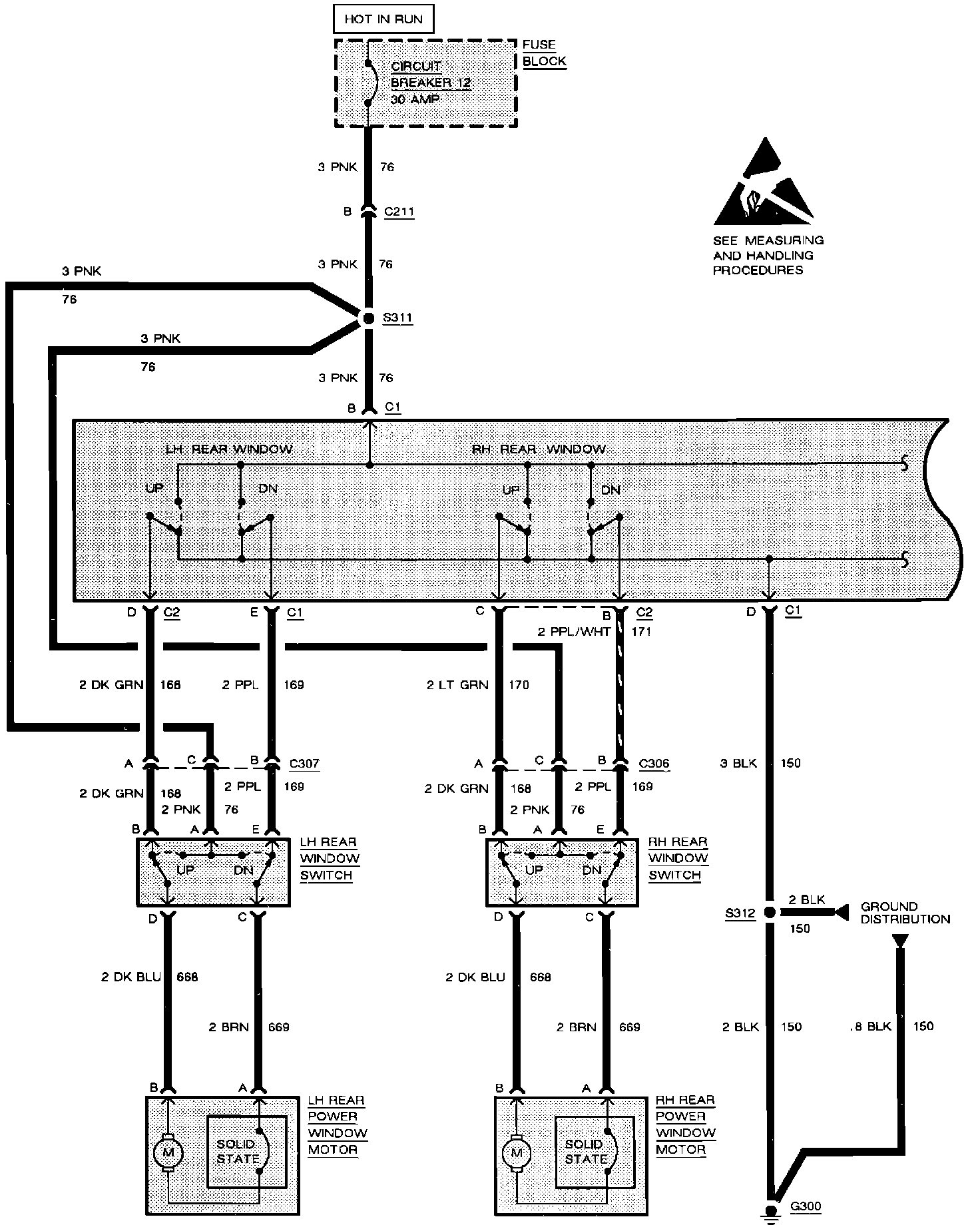

Wiring Diagrams:

Wiring Diagrams:
