Without Air Conditioning

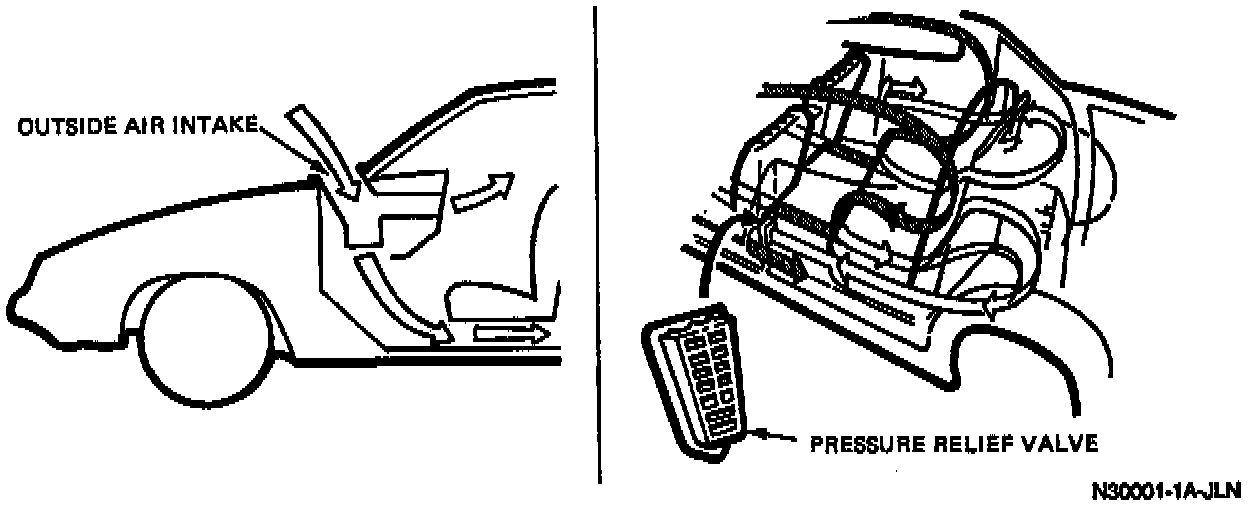

Flow Through Ventilation System (typical):

Heater System Air Flow (typical):

GENERAL DESCRIPTION
This vehicle has a "flow-through" ventilation system. A supply of outside air ("ram" air) flows into the vehicle when the blower motor is running.

With the side windows closed, air will flow into the front air inlet grilles, through the vehicle and out the rear air exhaust valves.
