Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>

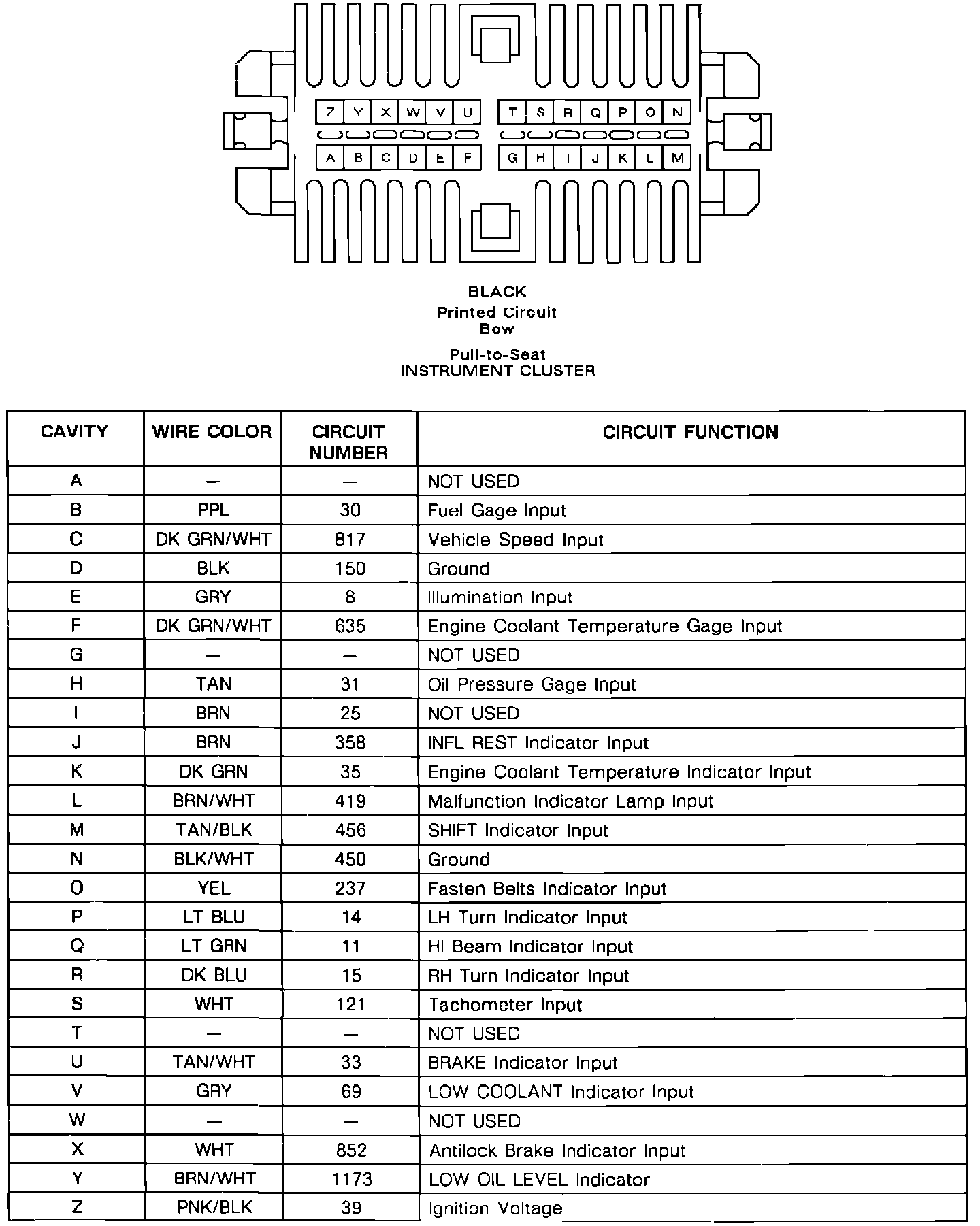

Gauges Cluster
Gauges Cluster
Connector Identification:
