Computers and Control Systems: Locations

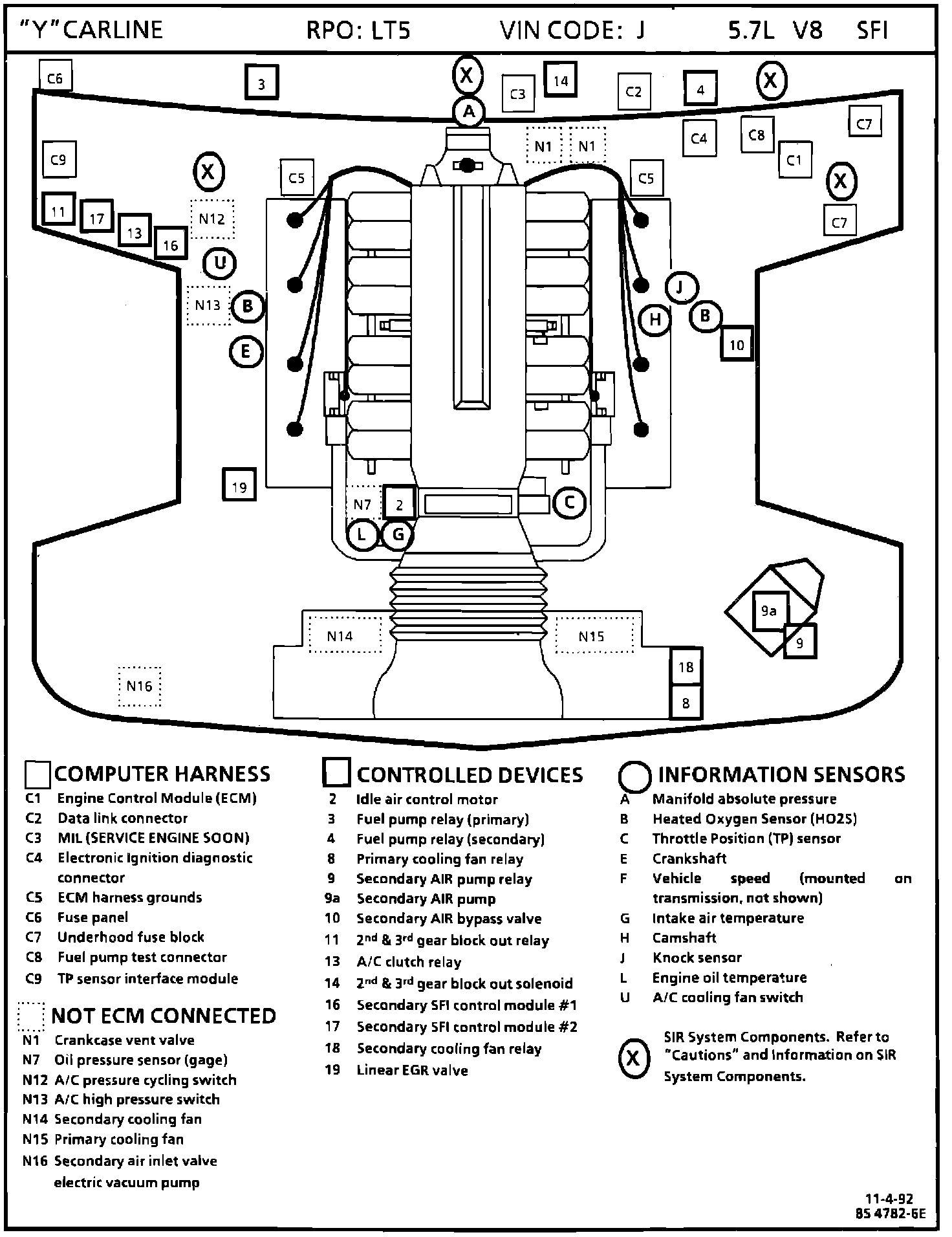

Underhood Block Diagram:
Component Locations (Plenum Removed):
