Emission Controls & Engine Data Sensors

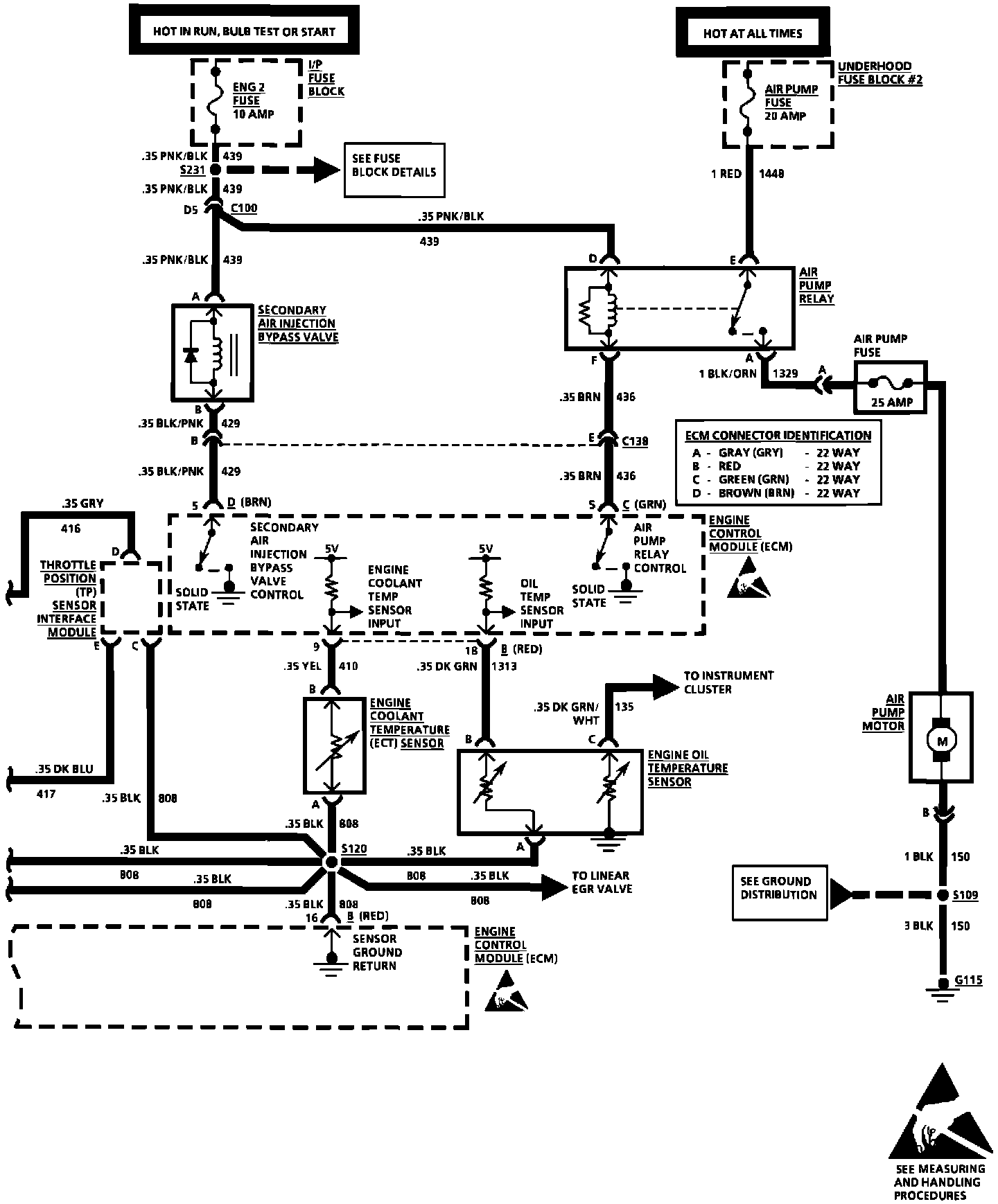

SMFI: Engine Data Sensors And Emission Controls:

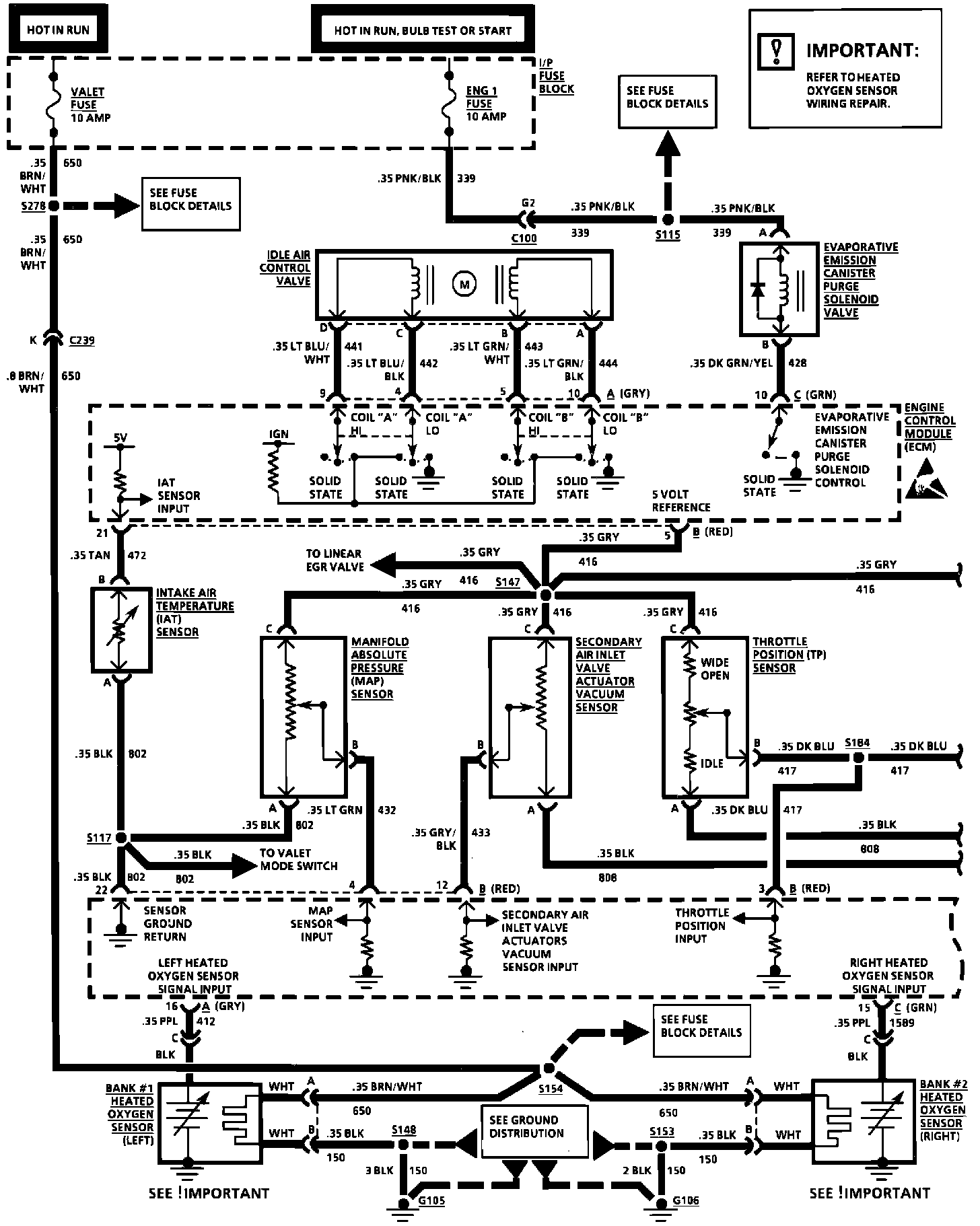

SMFI: Engine Data Sensors And Emission Controls:
