Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Exploded Views
Exploded Views

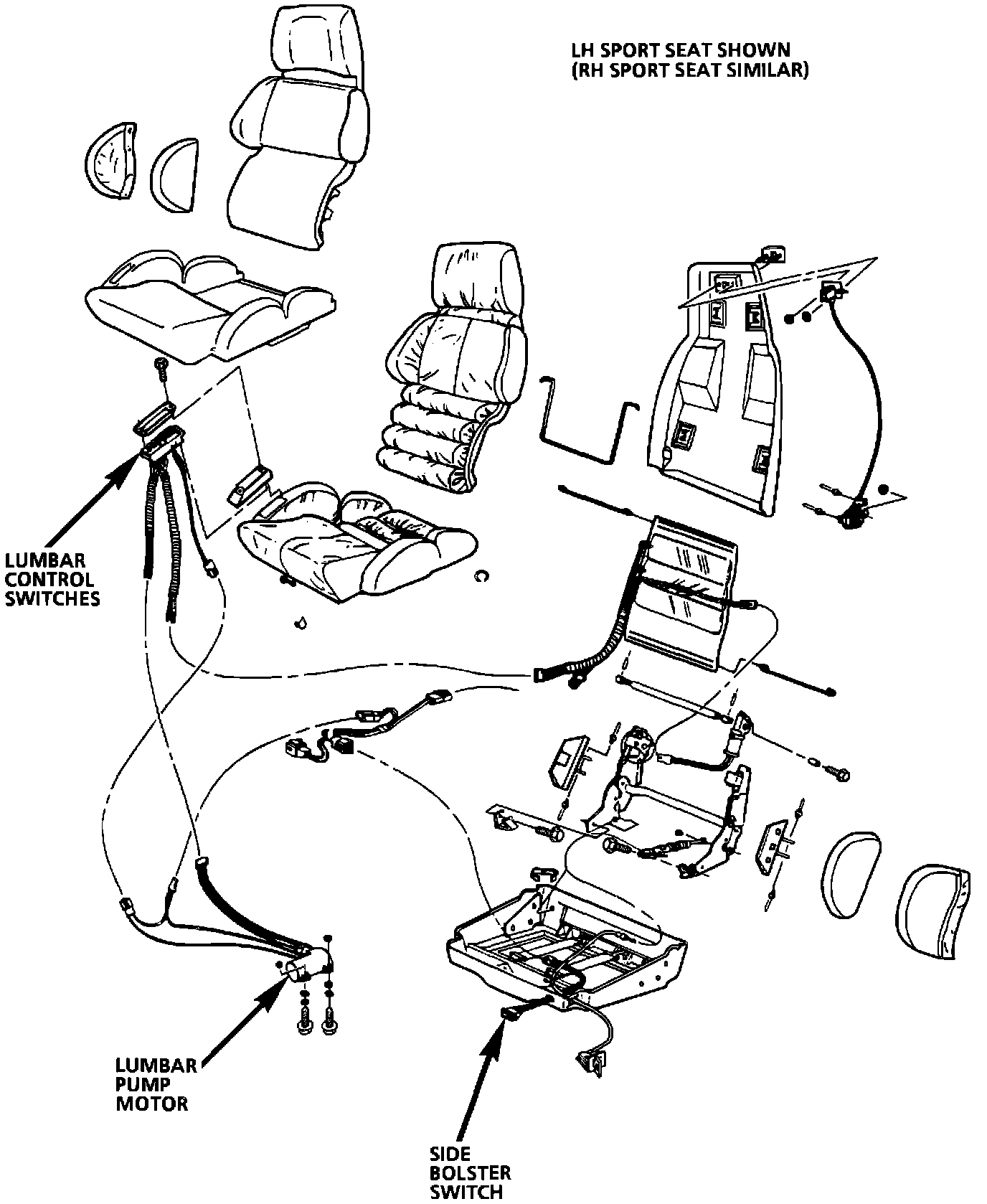

LH Seat Lumbar Support Exploded View:
