Traction Control Module

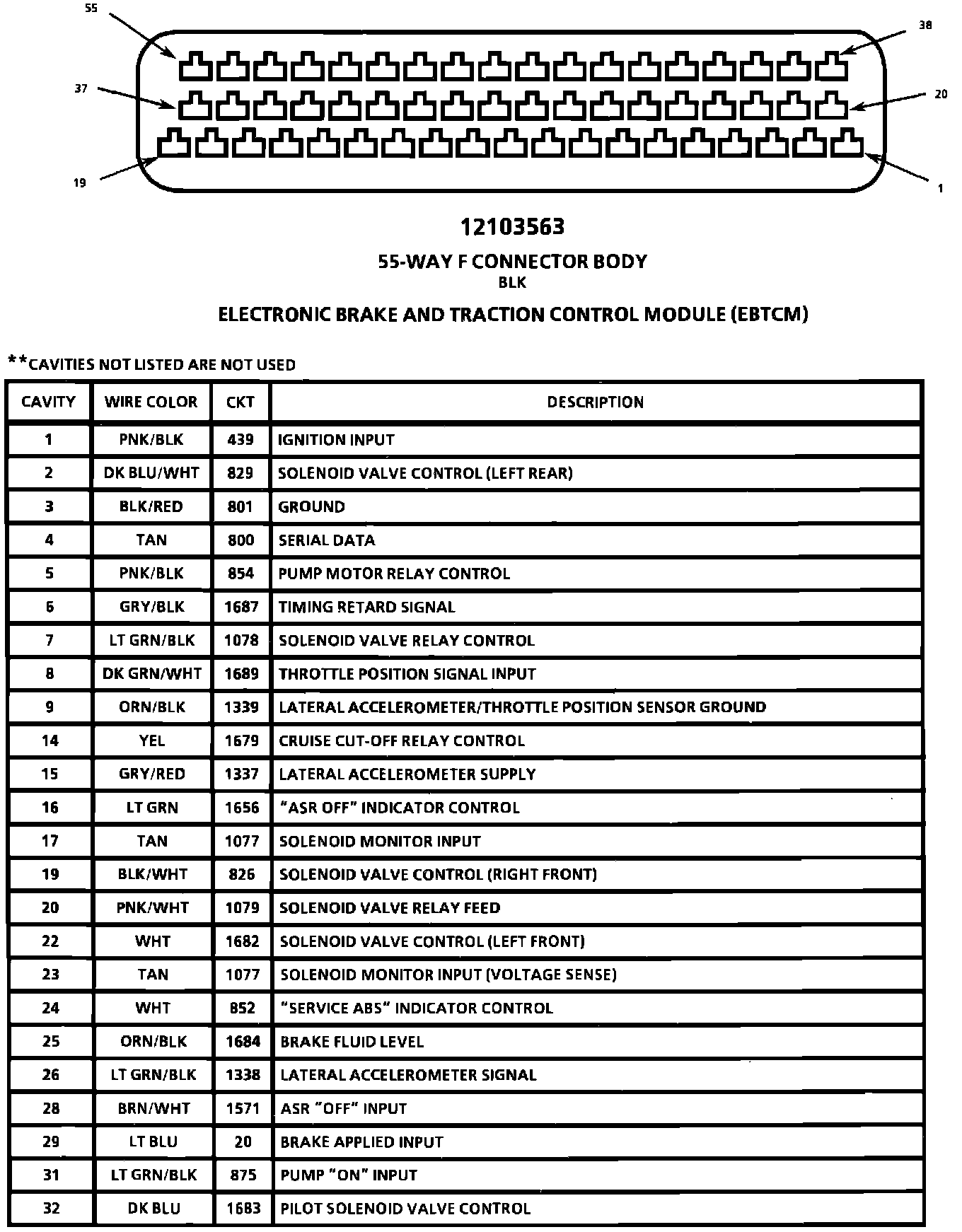

Electronic Brake And Traction Control Module (EBTCM) Connector:

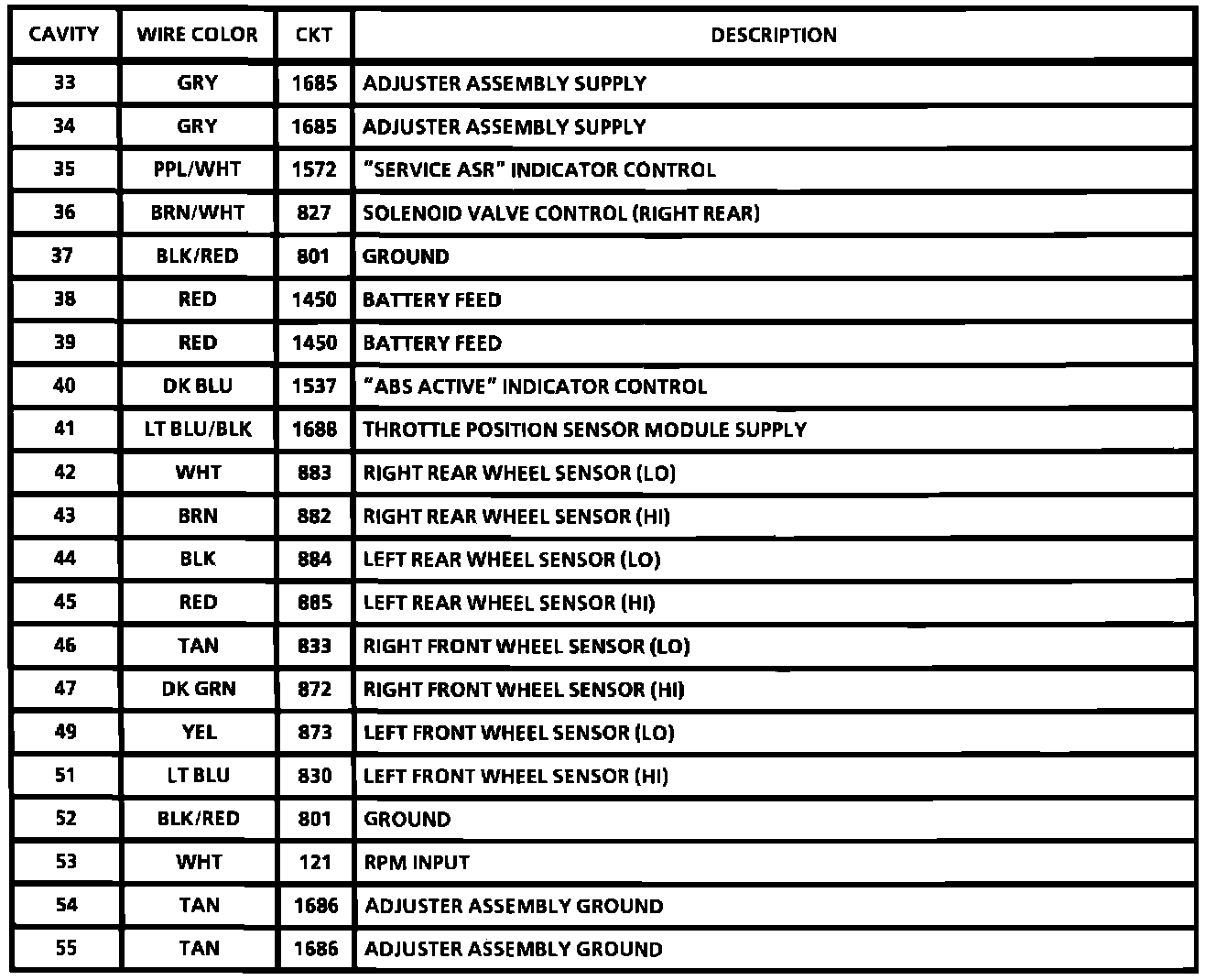

Electronic Brake And Traction Control Module (EBTCM) Connector:
