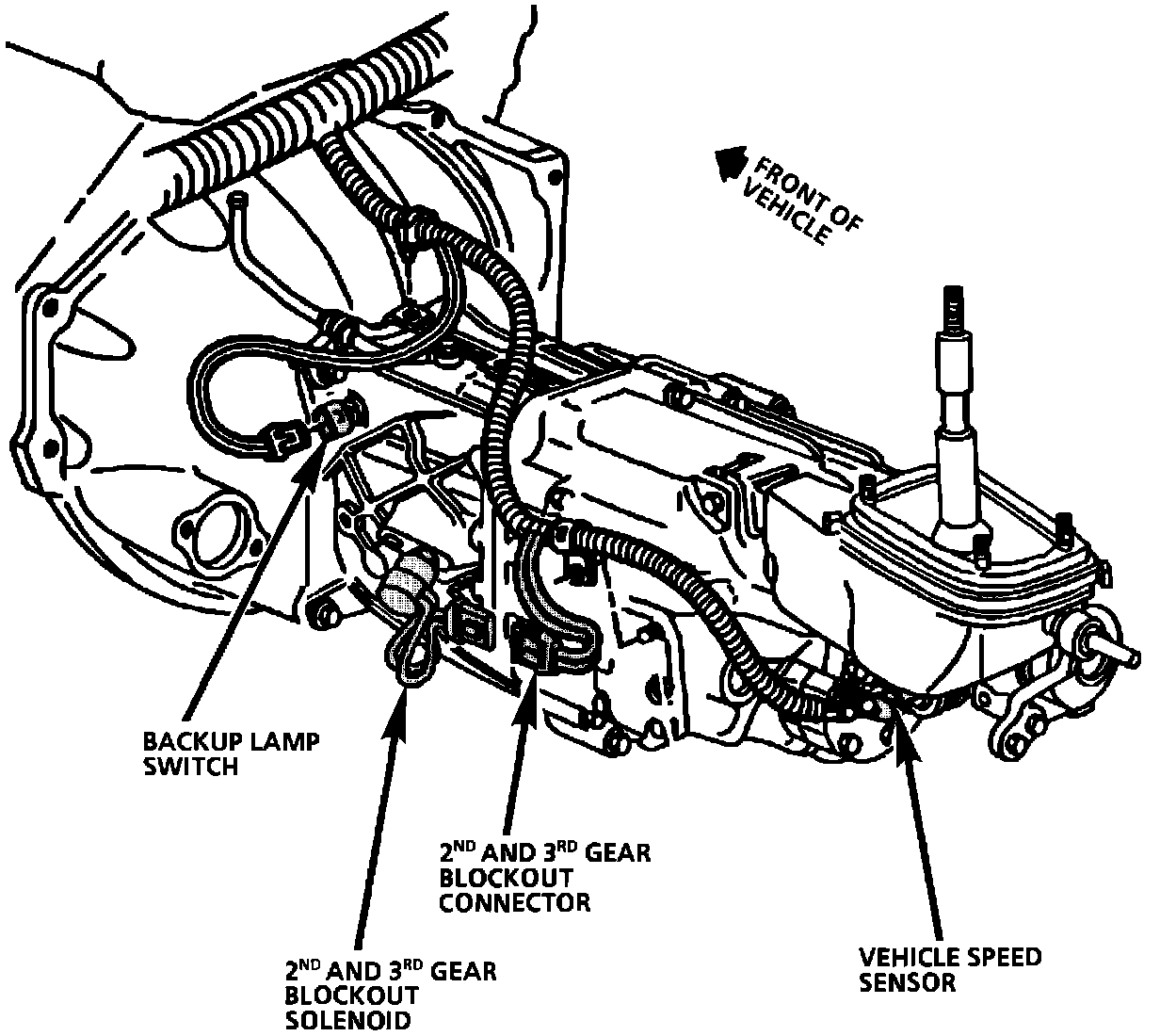

2ND and 3RD Gear Blockout Connector
2ND and 3RD Gear Blockout Connector
Rear Of Engine, On Transmission:
