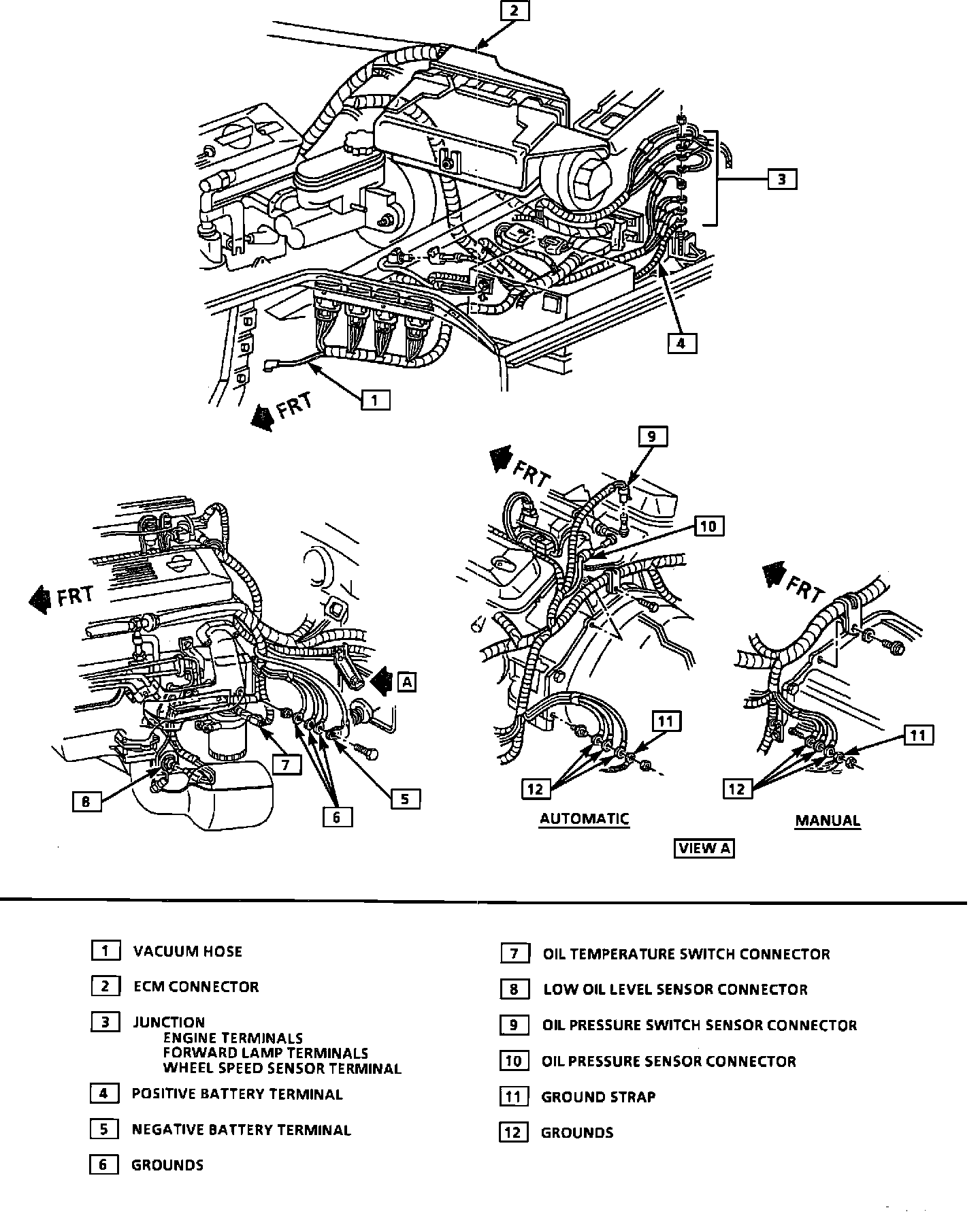

Left Rear

Left Pictorial View:

1 VACUUM HOSE
2 ECM CONNECTOR
3 JUNCTION; ENGINE TERMINALS, FORWARD LAMP TERMINALS, WHEEL SPEED SENSOR TERMINAL
4 POSITIVE BATTERY TERMINAL
5 NEGATIVE BATTERY TERMINAL
6 GROUNDS
7 OIL TEMPERATURE SWITCH CONNECTOR
8 LOW OIL LEVEL SENSOR CONNECTOR
9 OIL PRESSURE SWITCH SENSOR CONNECTOR
10 OIL PRESSURE SENSOR CONNECTOR
11 GROUND STRAP
12 GROUNDS
