Electronic Brake and Traction Control

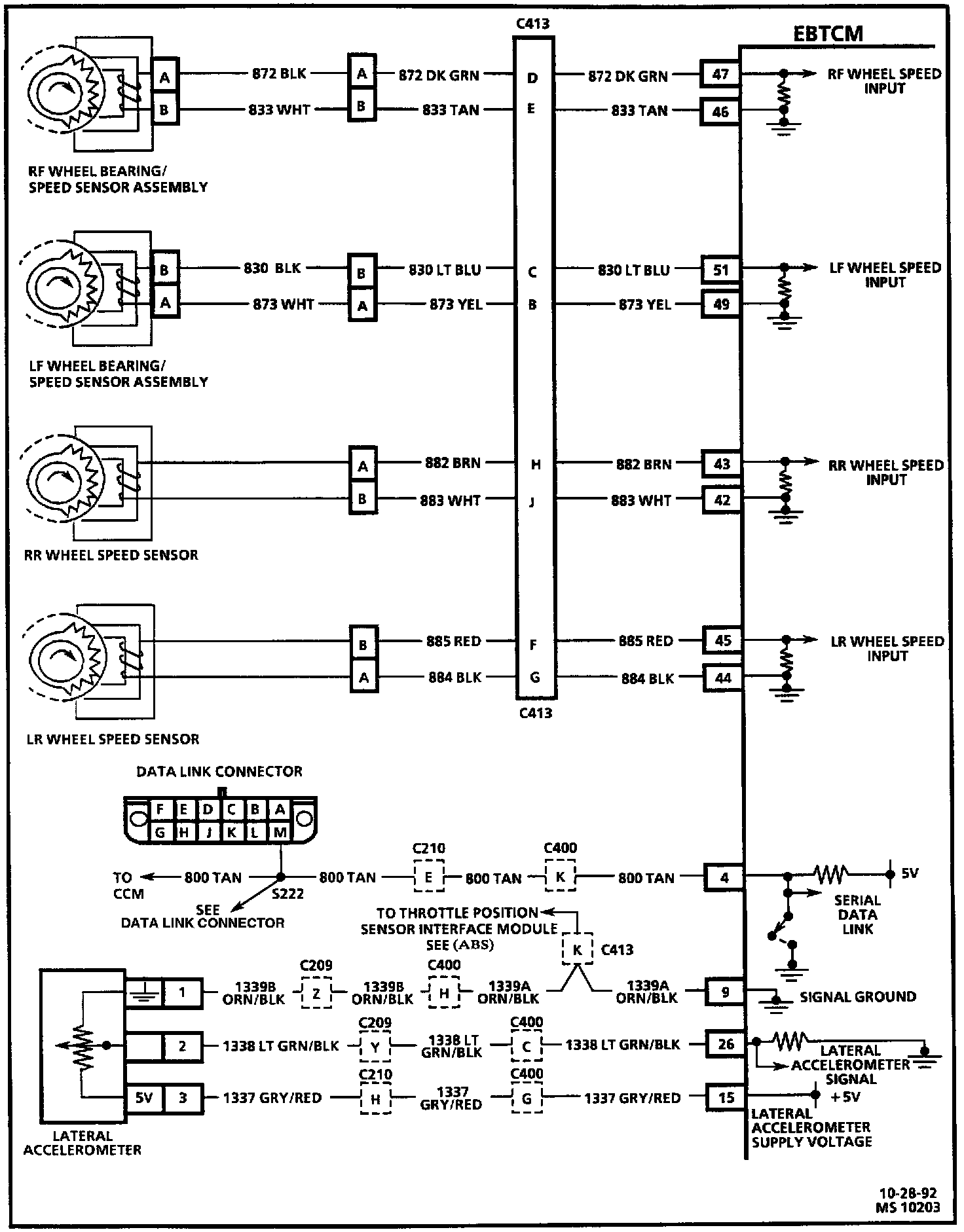

Wiring Diagram:

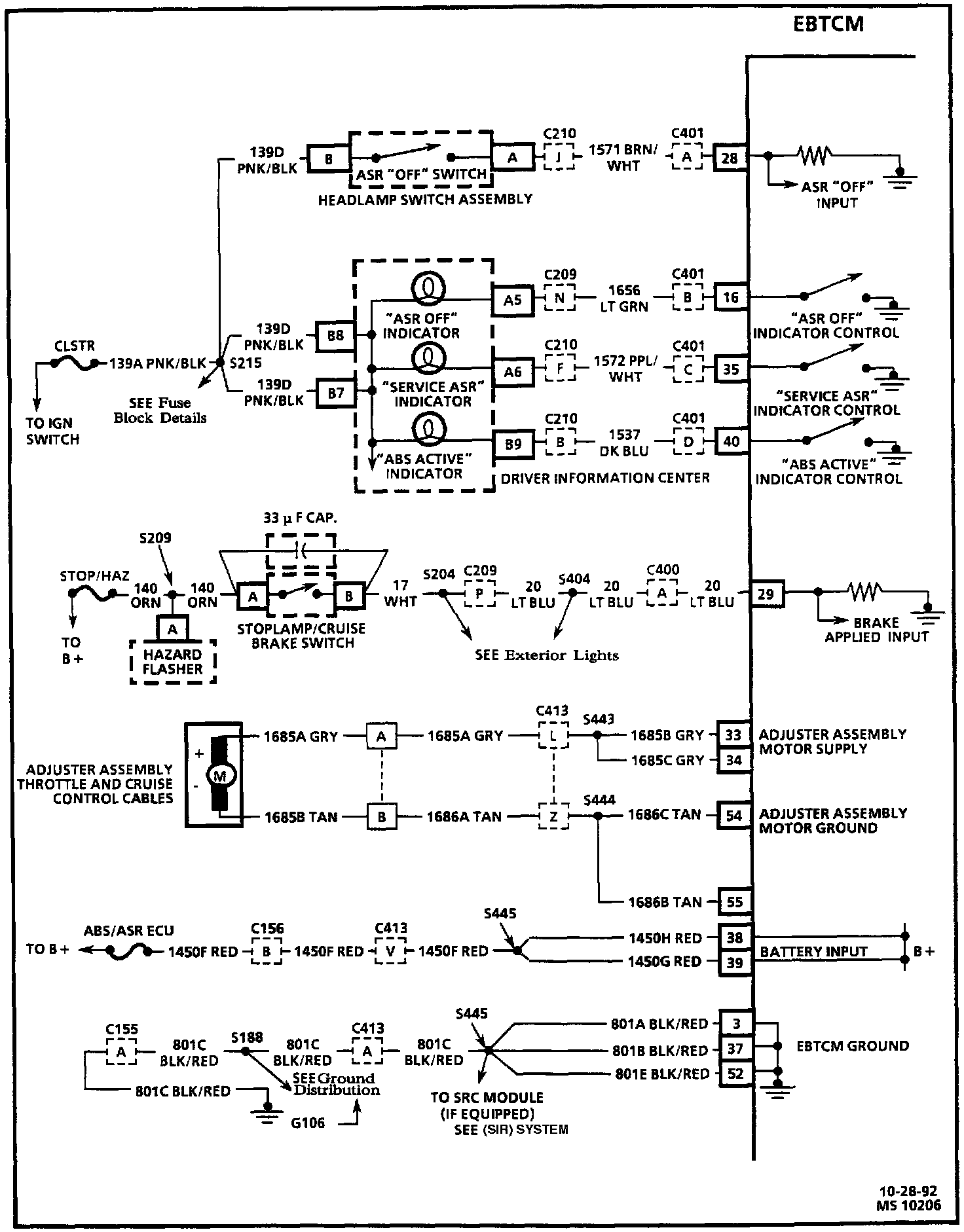

Wiring Diagram:

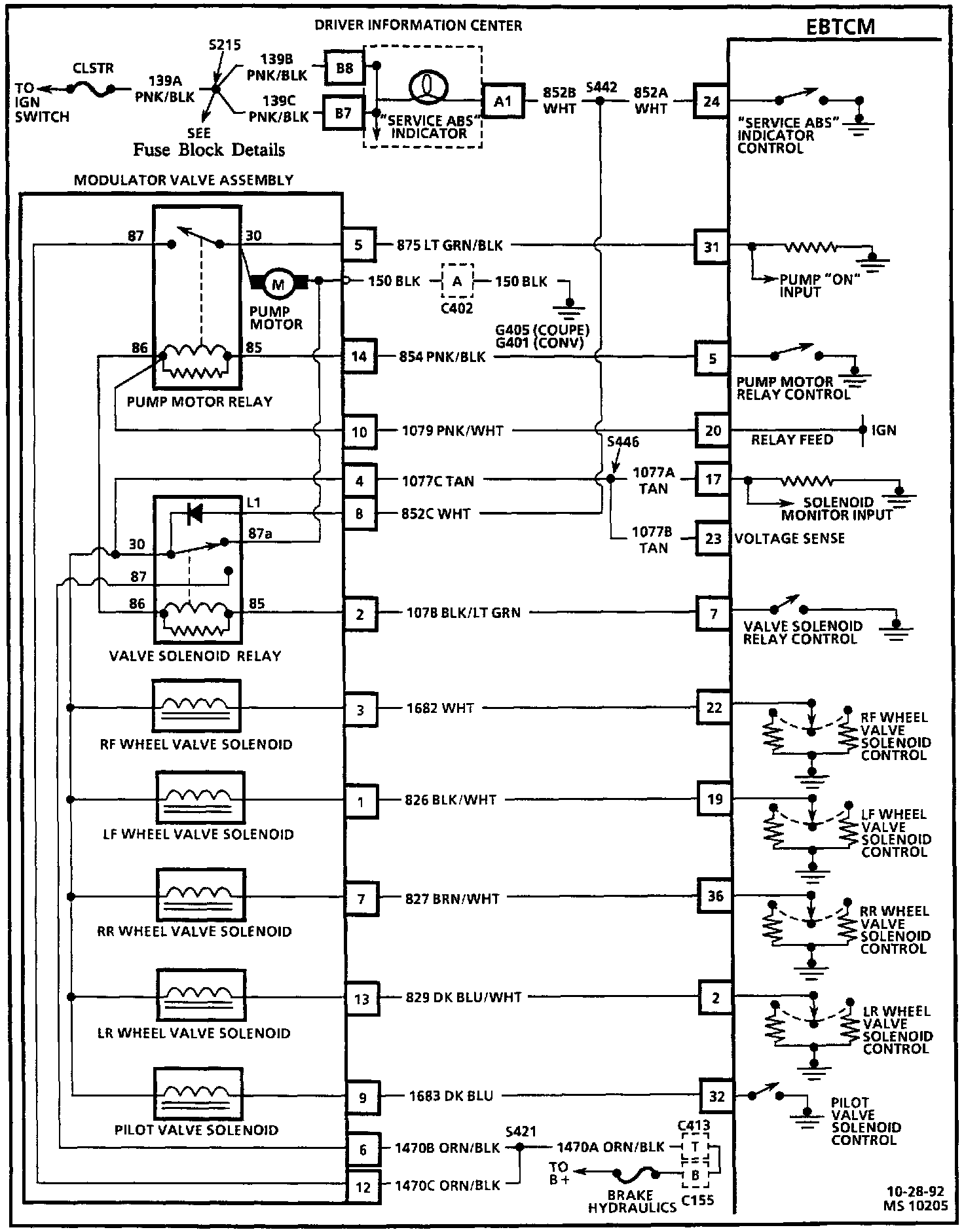

Wiring Diagram:

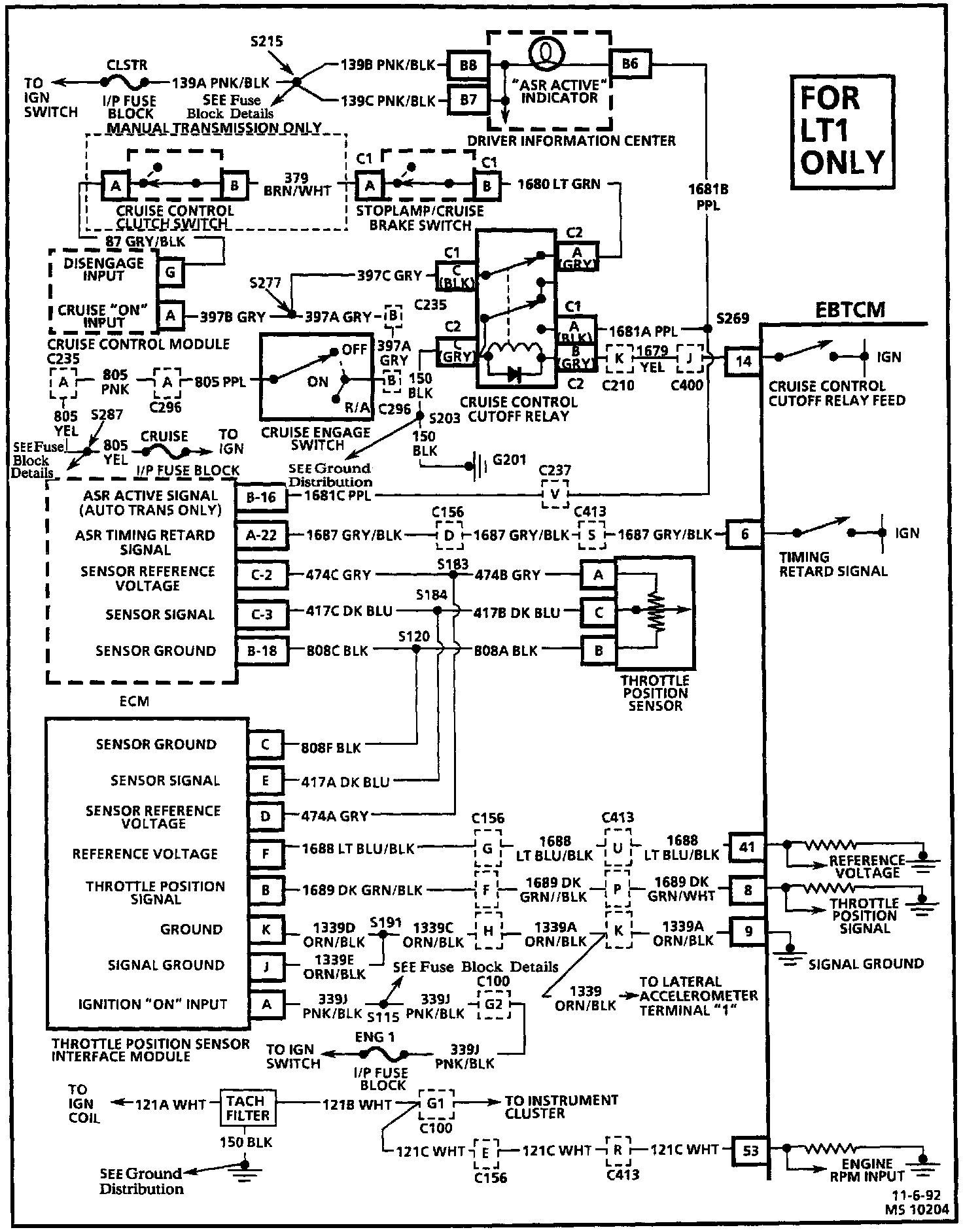

Wiring Diagram:

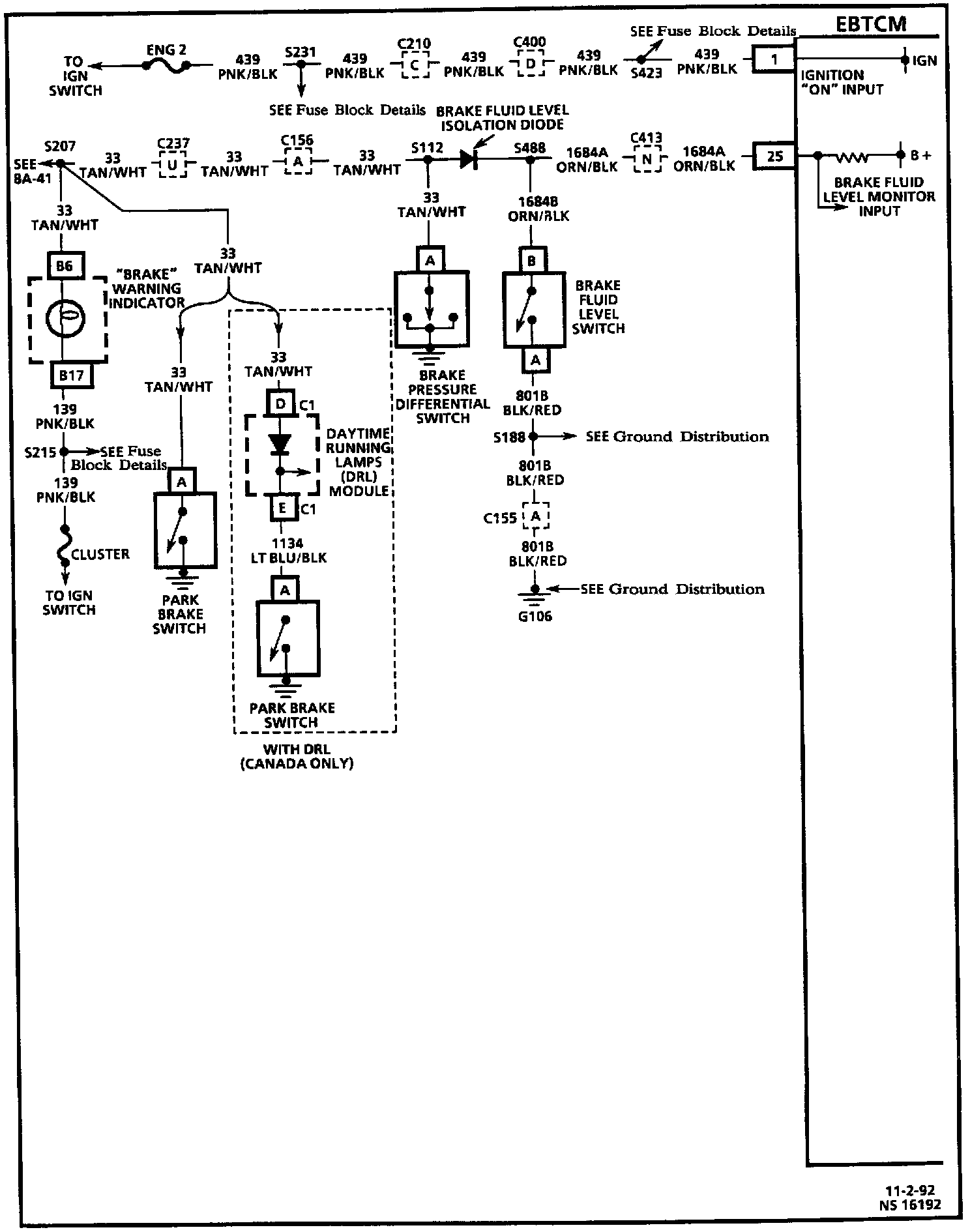

Wiring Diagram:
