Home
>>
Chevrolet
>>
1993
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
Cigarette Lighter

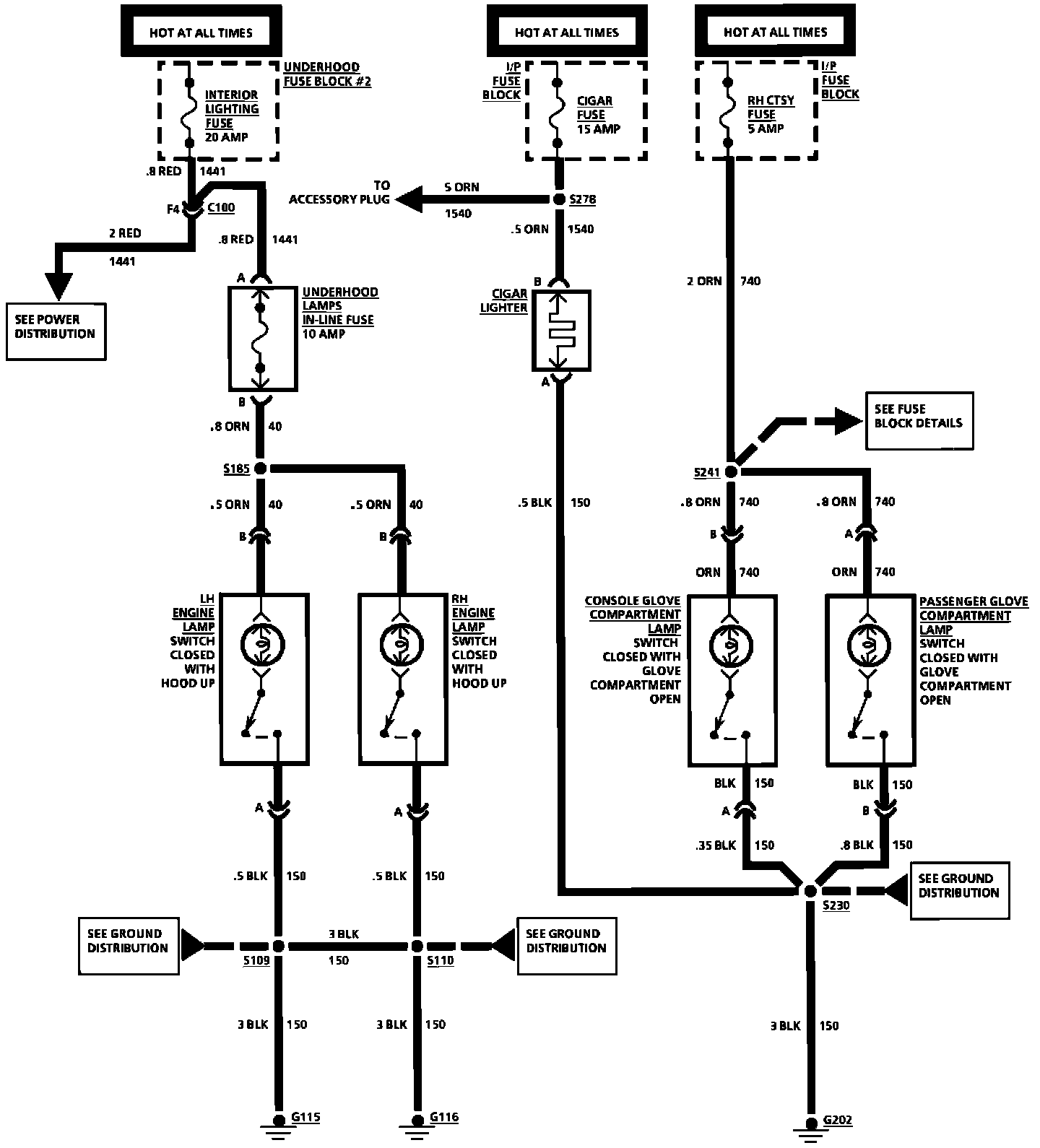

Interior Lights: Glove Compartments/Cigar Lighter/Underhood:
