Control Head and Receiver Box

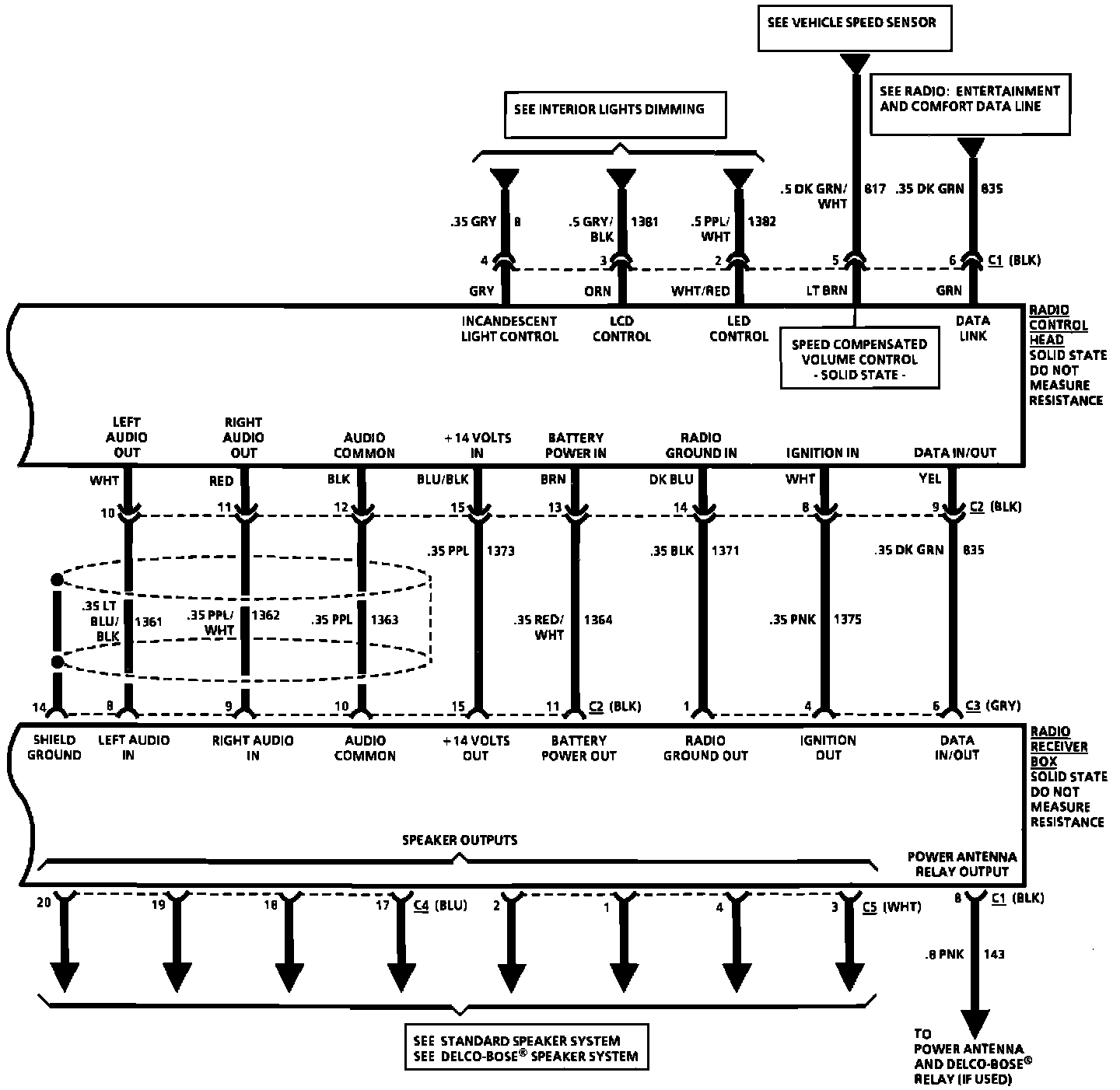

Radio: Control Head And Receiver Box:



Radio: Control Head And Receiver Box:
