Home >> Chevrolet >> 1993 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> Part 2 of 2

Part 2 of 2

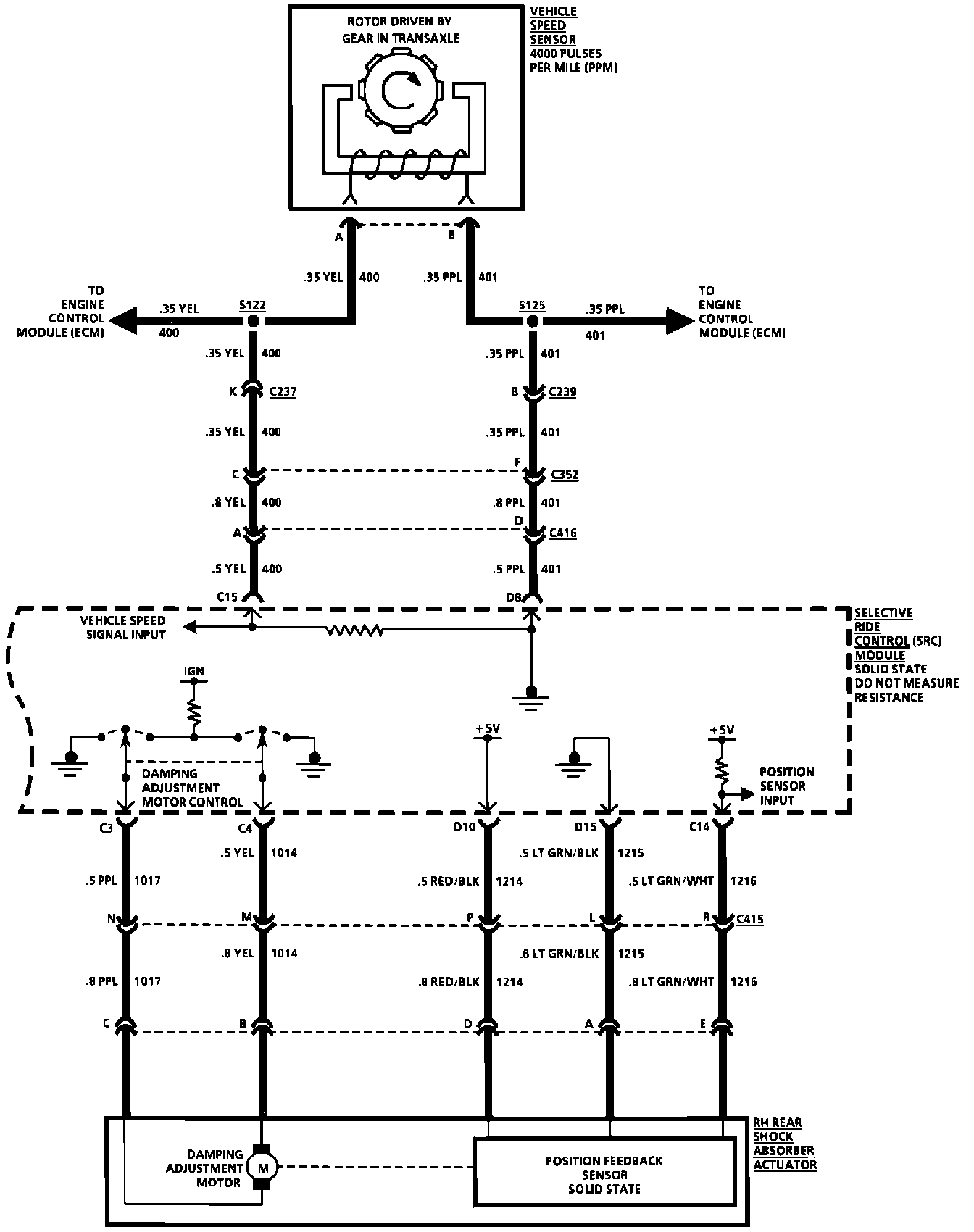

Ride Control: Selective Ride:



Ride Control: Selective Ride:
