Chevrolet
>>
1993
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
>>
Manual Air Conditioning
Manual Air Conditioning

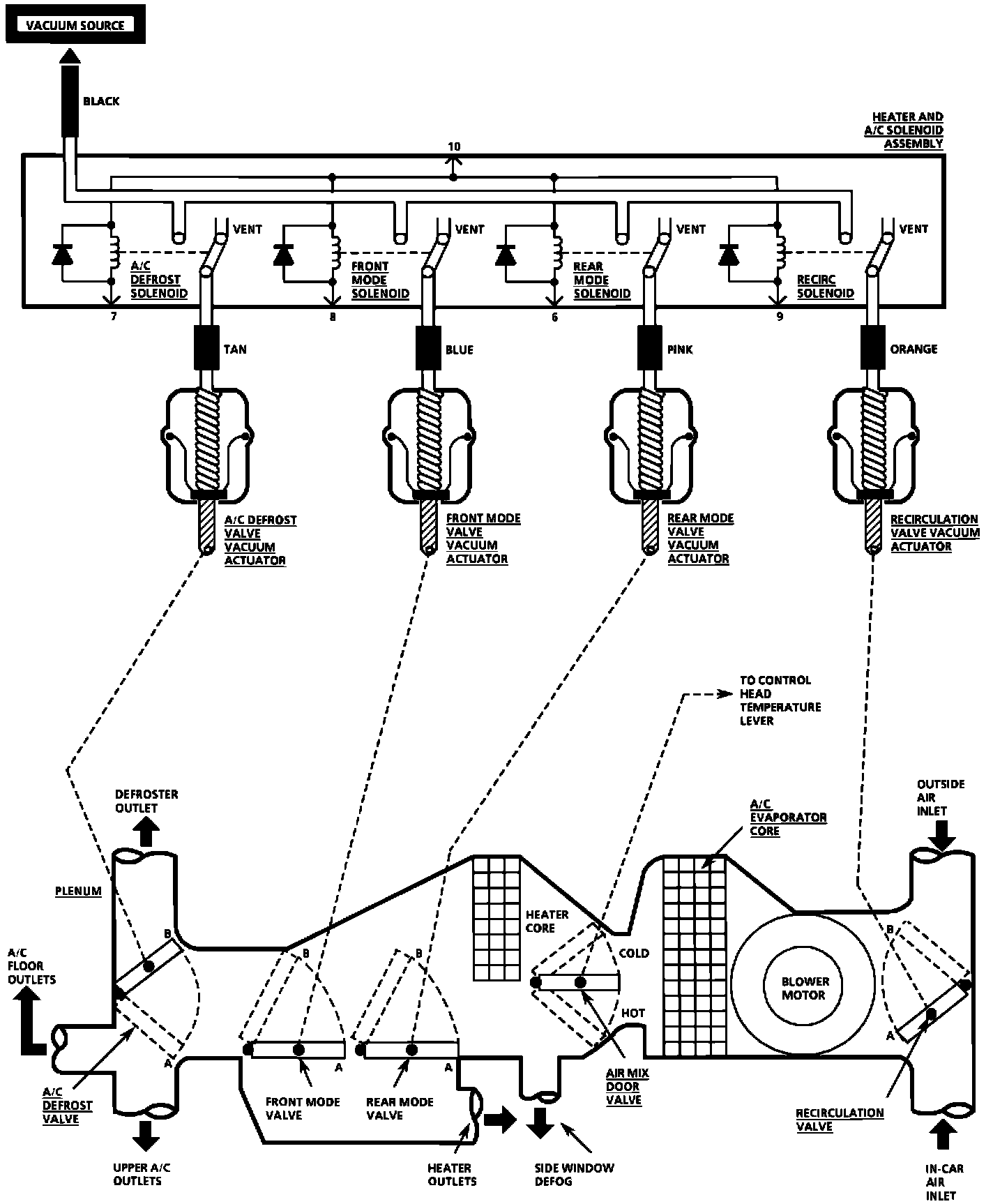

HVAC Air Delivery And Temperature Control (Manual):
