Automatic Electronic Air Conditioning
Automatic Electronic Air Conditioning

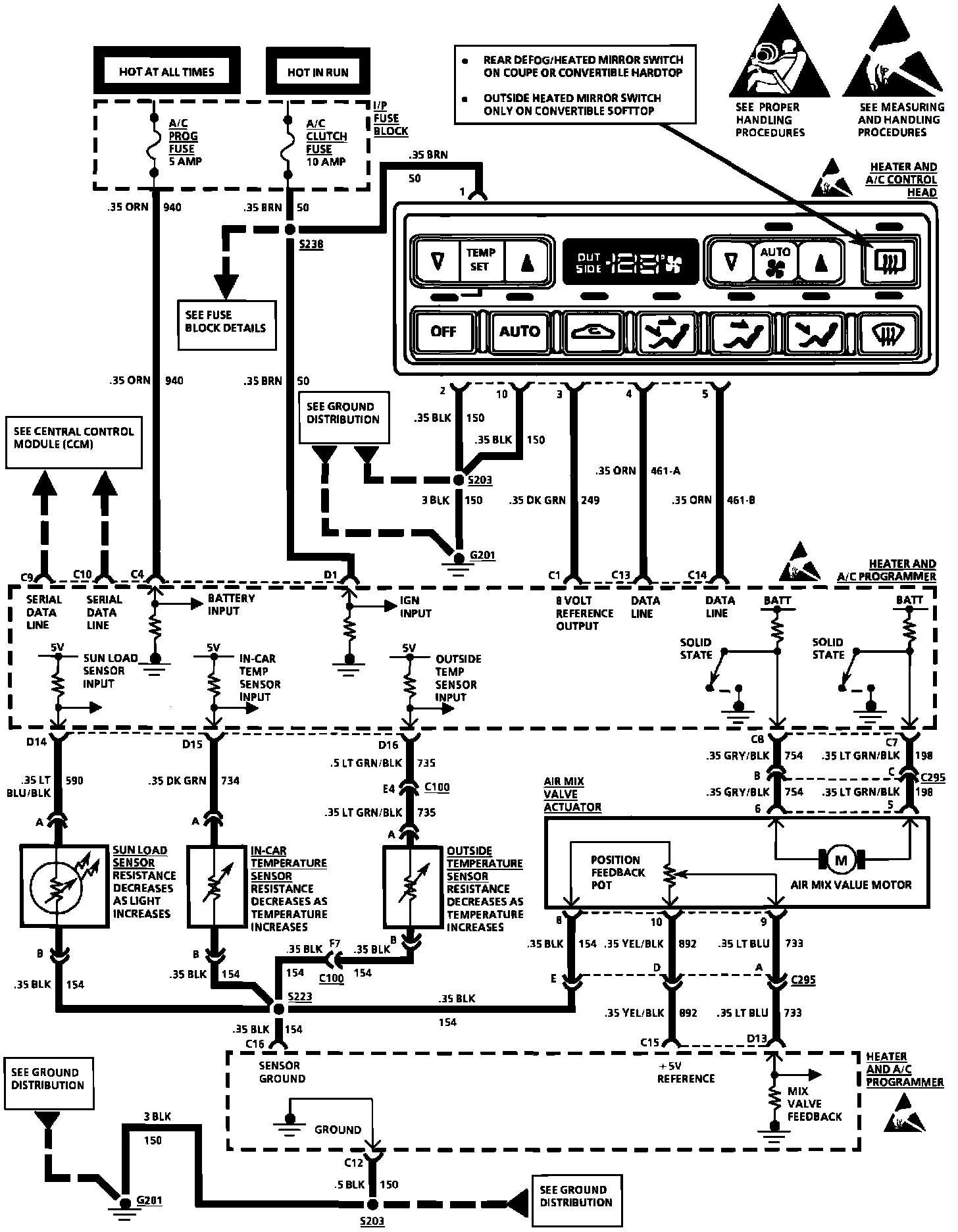

HVAC Air Delivery And Temperature Control (Electronic A/C):
